Answer
®

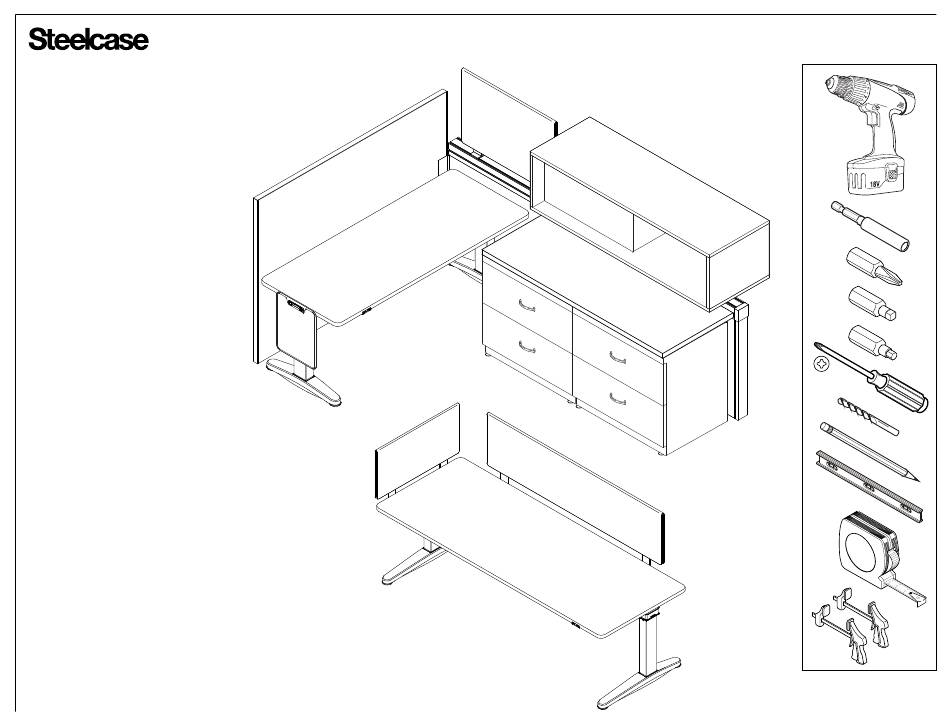

Beam Worksurface, Mid-Storage and Screen Mounts
®
#2
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2016 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 12
U.S.A.
78540 Rev A
Printed in U.S.A.
