Steelcase, Inc.

Grand Rapids, MI 49501

U.S.A.

1-888-783-3522

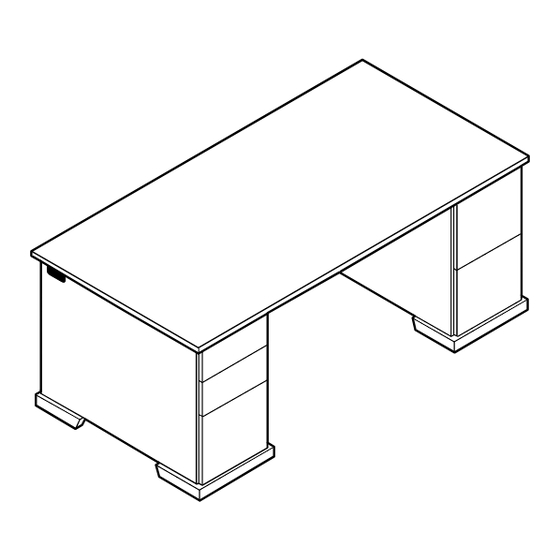

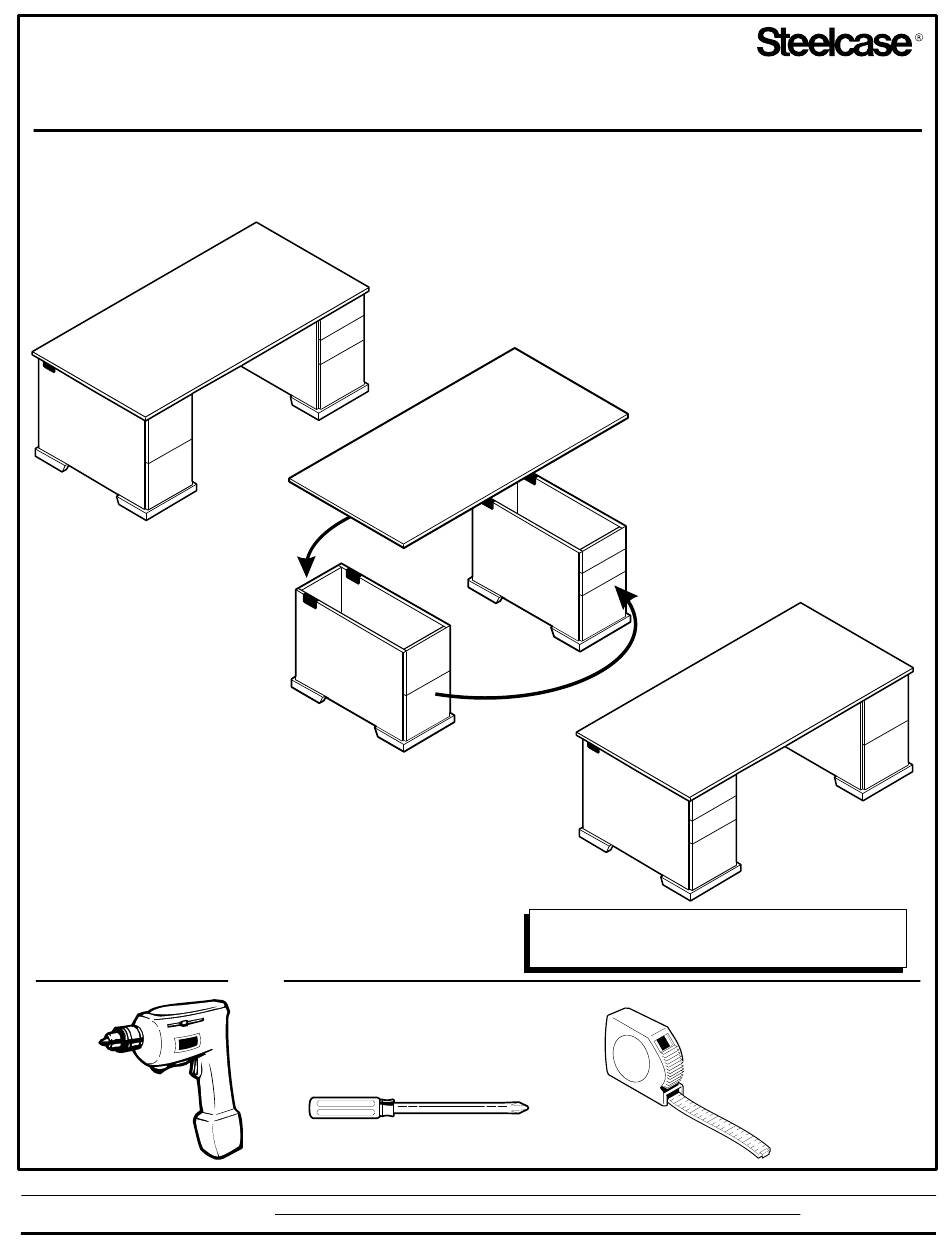

Pedestal Relocation - Double Ped Desk

This instruction will

demonstrate how to

exchange a box/box/file

with a file/file pedestal -

from one side of the unit

to the other.

Power Driver

with Phillips tip

Assembly Directions

Tools

Posi-Drive

- Arbor

- Ashbury

NOTE: Be certain to save all screws

and hardware as you remove them.

Rev. B

93-9501797

Table of Contents

Need help?

Do you have a question about the Arbor and is the answer not in the manual?

Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Pedestal Relocation - Double Ped Desk - Arbor - Ashbury This instruction will demonstrate how to exchange a box/box/file with a file/file pedestal - from one side of the unit to the other.
Page 2 Remove all drawers and end ports in both ends. Place pad on floor and carefully flip unit over onto it's top. Page 2 of 6 93-9501797...
Page 3 Remove screw with sleeve from lock tape in each pedestal. SCREW WITH SLEEVE (ACTUAL SIZE) Remove (2) connector brackets, one each end of modesty panel. (4) 5 mm x .62" EURO SCREWS LOCK TAPE CONNECTOR BRACKET (2) SCREWS PER STRETCHER Remove both pedestals from top.
Page 4 Move pedestals to opposite ends of top. DO NOT SECURE WITH SCREWS. PINS IN BOTTOM OF STRETCHERS WILL FIT INTO OPPOSITE ENDS OF SLOT TO LOCATE PEDESTALS. Make sure locating pins on stretchers are in slot, then push pedestals tight to modesty panel and secure connector brackets.
Page 5 Make sure lock housing fits into drawer opening. Install top drawers, both peds. (Lock housing may need adjustment. Loosen screws and adjust so housing is centered in drawer opening. Secure screws.) Remove drawers. LOCKED POSITION Put lock in locked position. Align lower lock pin with positioning hole in pedestals.
Page 6 With locks in unlocked position, reinstall drawers. Install end ports in openings on outsides of pedestals. UNLOCKED POSITION Page 6 of 6 93-9501797...
