START
STOP

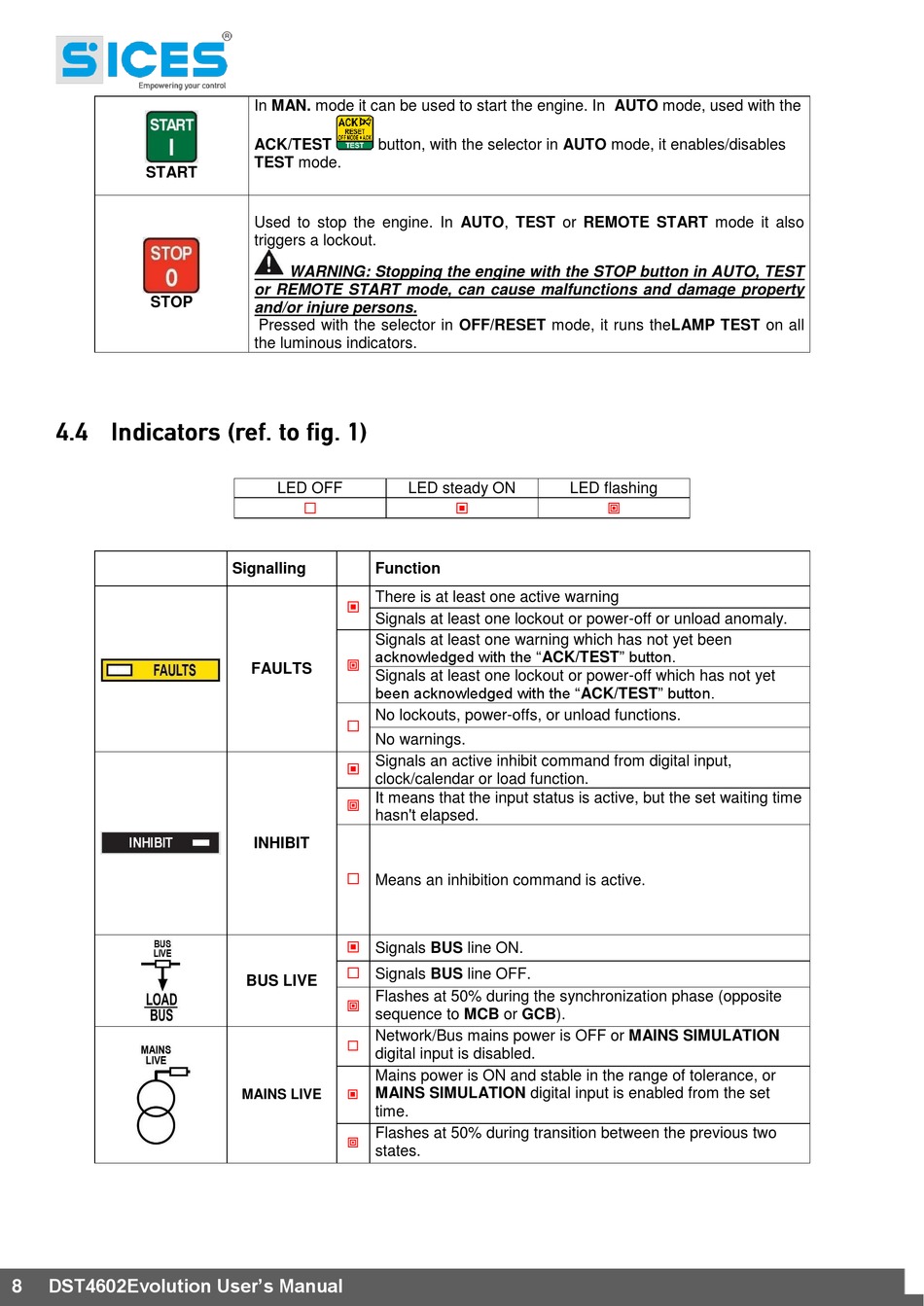

DST4602Evolution User's Manual
8
In MAN. mode it can be used to start the engine. In AUTO mode, used with the
ACK/TEST
button, with the selector in AUTO mode, it enables/disables
TEST mode.
Used to stop the engine. In AUTO, TEST or REMOTE START mode it also
triggers a lockout.
WARNING: Stopping the engine with the STOP button in AUTO, TEST
or REMOTE START mode, can cause malfunctions and damage property
and/or injure persons.
Pressed with the selector in OFF/RESET mode, it runs theLAMP TEST on all
the luminous indicators.
LED OFF
Signalling
Function
There is at least one active warning
Signals at least one lockout or power-off or unload anomaly.
Signals at least one warning which has not yet been
acknowledged with the "ACK/TEST" button.
FAULTS
Signals at least one lockout or power-off which has not yet
been acknowledged with the "ACK/TEST" button.
No lockouts, power-offs, or unload functions.
No warnings.
Signals an active inhibit command from digital input,
clock/calendar or load function.
It means that the input status is active, but the set waiting time
hasn't elapsed.
INHIBIT
Means an inhibition command is active.
Signals BUS line ON.
Signals BUS line OFF.
BUS LIVE
Flashes at 50% during the synchronization phase (opposite
sequence to MCB or GCB).
Network/Bus mains power is OFF or MAINS SIMULATION
digital input is disabled.
Mains power is ON and stable in the range of tolerance, or
MAINS SIMULATION digital input is enabled from the set
MAINS LIVE
time.
Flashes at 50% during transition between the previous two
states.
LED steady ON
LED flashing
