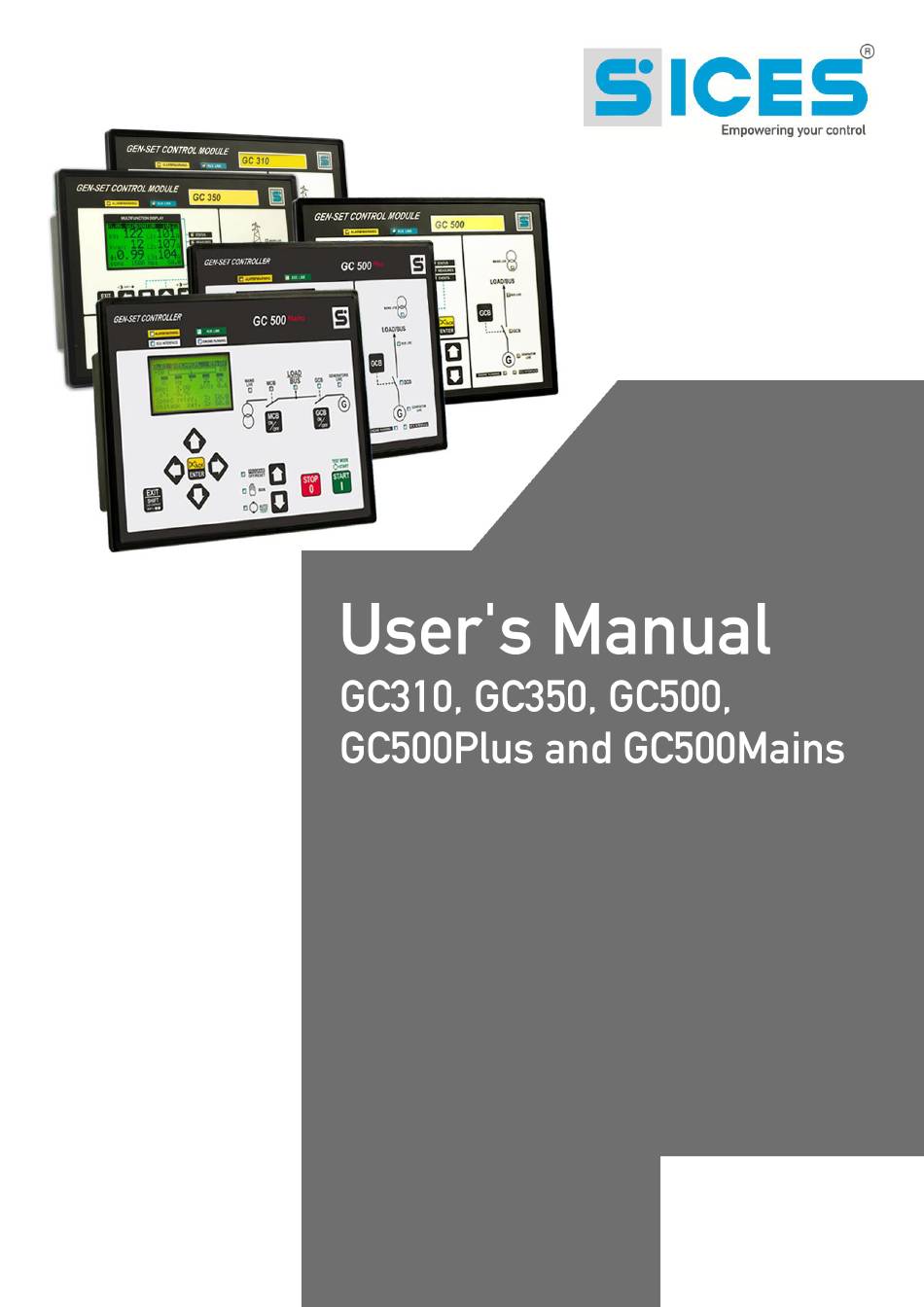

- Page 1 Filename: EAAM031006EN Rev. 06 Date: 13/10/2014 ID Document: EAAM0310 Product: GC310-GC350-GC500- GC500Plus-GC500Mains...
- Page 2 ..........18 3.5.1 Manual synchronization ................18 3.5.2 Manual power adjustment ................18 Special settings ..................... 19 Selecting the language ..................19 Fuel pump (if installed) ..................20 Select operation ....................20 GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 3 NOTE: Read this manual carefully before operating the device. (EN) The purpose of this manual is to describe boards GC310, GC350 and GC500. Following through this document, generic boards will be designated with GC3xx, while the names GC310, GC350 GC500...
- Page 4 KEY GC310/GC350 1 - Buttons 2 - Indicators KEY GC500 1 - Buttons 2 - Indicators GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 5 1 - Buttons 2 - Indicators 11 buttons (1a, 1b, 1c). LED indicators (2a, 2b, 2c) KEY GC500Mains 1 - Buttons 2 - Indicators 12 buttons (1a, 1b, 1c). LED indicators (2a, 2b, 2c). GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 6 Gen-set is in manual mode. Press the START button to start the engine. Press the STOP button to stop the engine. GC310/GC350 - The KM/KG button is used to manually switch from mains uses to group uses and vice-versa. Plus GC500/GC500 - The GCB button is used to manually control the change/switches according to the plant's SW and HW configuration.
- Page 7 Used to acknowledge any kind of alarm and to silence the siren. Ref. 1a GC310/GC350 - In manual (or “TEST”) mode it is used to switchover the devices between the generator and the mains (switching over to the mains is always possible; switching over to the generator is possible only if the relevant electrical values are within tolerance).
- Page 8 Flashing 90% ON - Operation mode set to REMOTE START- TEST Ref. 2b Different operation mode. The display shows “STATUS” mode pages. STATUS Ref. 2b The display shows “PROGRAM” or other mode. GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 9 Signalling Function The display shows "MEASURES" mode pages. GC310/GC350 - Flashing 50% - Engine measures window enabled. Plus Mains GC500/GC500 /GC500 - Flashing 25% ON - Parallel MEASURES Ref. 2b measures window enabled. Plus Mains GC500/GC500 /GC500 - Flashing 75% ON - Engine measures window enabled.
- Page 10 Cooling phase GC310/GC350 - KM open. GC310/GC350 - KM closed. GC310/GC350 - Flashing at 25% ON - Open after a Close command. GC310/GC350 - Flashing at 75% ON - Closed after an Open Ref. 2c command.
- Page 11 The display has different display modes with various pages. Mode Page identifier Programming P.XX Status information S.XX Electrical measurements M.XX Engine measurements E.XX Parallel measures B.XX Plus Mains Plus Mains GC500/GC500 /GC500 GC500/GC500 /GC500 History logs H.XX GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 12 EXIT button to deactivate. 3.3.2 E.01 ENGINE 18:23 KEY: 1 - Status bar 2 - Data Area Oil pressure(bar): Cool. Temp.(°C): Speed (rpm): Fig. 3 - Display areas GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 13 The first indicates which entry in the menu is selected or which page is displayed, the seconds indicates how many entries or pages can be displayed in the current menu/submenu. Access to the programming mode can be controlled by 4 different PASSWORD levels, which are listed in order of priority. GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 14 To change the variable, press ACK/ENTER ; the square brackets [ ] will blink. Use the vertical scroll UP Ref. 1a and DOWN Ref. 1a buttons to modify the value and press ACK/ENTER to confirm or GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 15 You can scroll through the various pages using the LEFT and RIGHT buttons. Page S.01 displays information on the system status. Part of this information is displayed in the bottom status bar. GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 16 Page M.03 displays the Generator/Use phase currents and auxiliary current. Page M.04 displays total power, power factor, powers and phase power factor. Page M.05 displays total reactive and apparent power, reactive and apparent phase powers. GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 17 The number shows in the top right line of the multifunctional display with the total number of records. When the archive is full, a new record overwrites the old one so that the identification number may change in time. GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 18 In mains parallel applications with BASE LOAD or IMPORT/EXPORT functions, you can adjust the power supplied manually without having to change the parameter that defines the regulated power directly. GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 19 ENTER to confirm. To exit the special mode, power down Gen-set, wait for a few seconds, then power it up again. Note:in this phase do not press the STOP and START buttons. GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 20 Note: The second option (MANUAL-ON) can be inhibited by Gen-set, in relation to the fuel level (the pump will not start when the tank is full). Warning: With fuel pump alert ON, the control mode automatically sets to “0-MANUAL-OFF” GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual...
- Page 21 This document is owned by SICES s.r.l.. All rights reserved. SICES s.r.l. reserves the right to modify this document without prior notice. SICES has made any effort to ensure that the information herein provide are correct; in any case SICES does not assume any liability for the use these information.
