Summary of Contents for Sices MC100

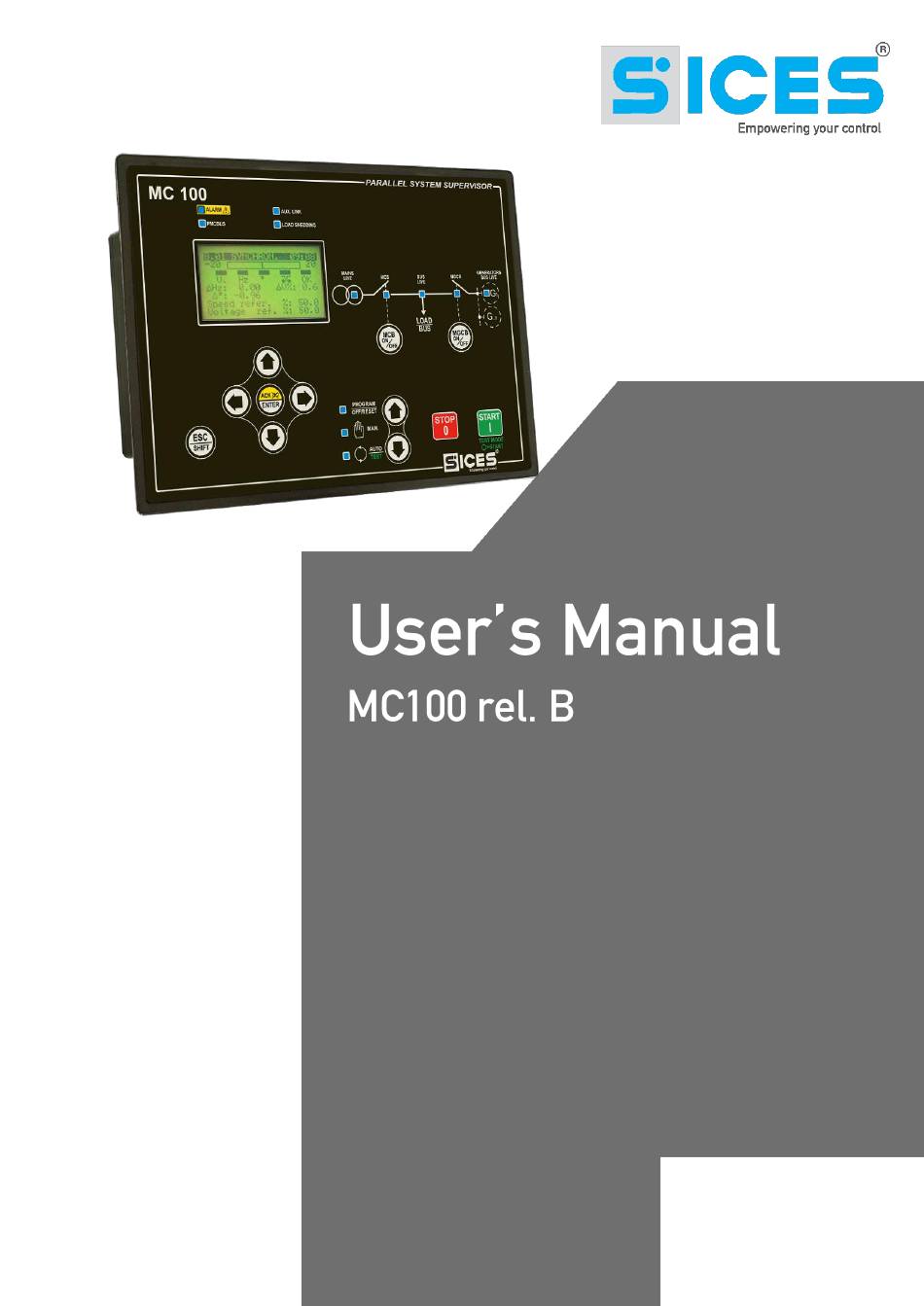

- Page 1 File name: EAAM057000EN.docx Rev. 00 Date: 14/06/2016 ID Document: EAAM0570 Product: MC100 rel. B...
-
Page 2: Table Of Contents
PMCBus (B.xx) ..................... 14 History logs (H.xx) ..................15 Manual commands ..................... 15 Manual synchronisation ................15 Manual power regulation ................16 Working sequence ..................17 LOAD FUNCTION ..................17 ......................17 Selecting the language ..................17 User's Manual MC100 rel. B EAAM057000EN... - Page 3 NOTE: Please read this manual carefully before using the device. (EN) This manual describes the MC100 rel. B controller. ALARM – it is used to indicate a fault that make the genset operation impossible and causes the automatic and immediate turning off of the engine with emergency procedure.
-
Page 4: Buttons (Ref. To Fig. 1)
When used during the keyboard regulation function, it cancels the function. Ref. 1a When HELP information is available in the display pages, the HELP message will be displayed on the bottom bar, by pressing the button and hold. User's Manual MC100 rel. B EAAM057000EN... - Page 5 By pressing it during the paralleling with the mains, it allows to open the MCB circuit breaker: if it is possible, the controller transfers the load to the gensets before the opening of the circuit breaker. Ref. 1c MC100 User’s Manual 5 EAA0M0057000...
- Page 6 If it is pressed in OFF/RESET mode, it carries out a LAMP TEST of all light indicators. At the controller power-up, if used together with STOP START it allows to enter special functions. Ref. 1b User's Manual MC100 rel. B EAAM057000EN...
-
Page 7: Indicators (Ref. To Fig. 1)
BUS-OFF mode. Indicates that the CAN-BUS has been disabled. Mains voltage and frequency steadily within the tolerance range Or the digital input function “40-External mains sensor” is active MAINS LIVE since the time set. MC100 User’s Manual 7 EAA0M0057000... - Page 8 Flashes at 25% ON if open after a closing command. MGCB Flashing at 75% ON if closed after an opening command. Ref. 2c Flashing at 50% in case of synchronization with led BUS LIVE. User's Manual MC100 rel. B EAAM057000EN...
-
Page 9: Multifunctional Display
Fig. 2 - Mode navigation In order to view the pages in the mode, use button LEFT Ref. 1a and RIGHT Ref. In some modes (ex.: mode P.xx and mode H.xx) to display the pages, press MC100 User’s Manual 9 EAA0M0057000... - Page 10 The system status (2) displays part of the information of the page S.01 (status info) which is useful for the operator, because it can be displayed even if it is accessing other pages of display modes. User's Manual MC100 rel. B EAAM057000EN...
- Page 11 The INSTALLER can change the User Password and the Installer Password. The MANUFACTURER can display and change all three passwords. As SICES, it is possible to display and change some parameters of plant configuration, related to the parallel functions. Warning: The critical parameters must not be changed by the user.
- Page 12 , it is possible to select the character to change. Then, using the scrolling UP Ref. 1a and DOWN Ref. 1a it is possible to change the character selected. Repeat the procedure for each character that needs changing. User's Manual MC100 rel. B EAAM057000EN...
- Page 13 Page S.04 displays the serial communication status. In case of functional problems, please check the content of this page. In case of use of a GSM modem, the telephone operator and the radio signal are displayed too. Page S.05 displays the PMCBus communication status. MC100 User’s Manual 13 EAA0M0057000...
- Page 14 The protection codes are stored, with reverse flashing, until they are acknowledged by the button ACK/ENTER In this page it is possible to change the power supplied in the application of parallel with the mains BASE LOAD and IMPORT/EXPORT User's Manual MC100 rel. B EAAM057000EN...
-
Page 15: Manual Commands
By selecting the mode MAN with the pushbuttons UP Ref. 1b and DOWN Ref. 1b it is possible, depending on the type of plant, to control the closing of MCB by means of the manual synchronisation. MC100 User’s Manual 15 EAA0M0057000... - Page 16 (%). The value that will be changed is highlighted in negative. Press ACK/ENTER to exit the adjustment procedure. NOTE: Note: The described function is only available if no external potentiometer has been configured for power regulation. User's Manual MC100 rel. B EAAM057000EN...
-
Page 17: Selecting The Language
To change the LANGUAGE press ACK/ENTER ; the square brackets [ ] will flash. Use the vertical scrolling buttons UP and DOWN to display the LANGUAGE available and press ACK/ENTER to confirm or EXIT/SHIFT to cancel. MC100 User’s Manual 17 EAA0M0057000... - Page 18 All rights reserved. SICES s.r.l. reserves the right to modify this document without prior notice. SICES has made any effort to ensure that the information herein provide are correct; in any case SICES does not assume any liability for the use these information.
