- Page 1 User’s Manual DST4602 Remote Filename: EAAM048702EN.DOCX Rev. 02 Date: 06/05/2015 ID Document: EAAM0487 Product: DST4602 Remote...
- Page 2 Revision Date Pages Note 16/12/2014 13 First version of the manual, released for the version 01.00 of the controller. 20/02/2015 13 Upgrade to version 00.49 of the controller. Summary added. 3, 5.8 06/05/2015 13 Correction in paragraph 5.6. DST4602Remote User’s Manual...
-
Page 3: Table Of Contents
Digital output......................6 Connection to DST4602 via Ethernet ..............6 Connection to DST4602 via RS-485 ............... 8 3.4.1 Connection to the DST4602 J14 port ..............9 3.4.2 Connection to the DST4602 J16 port ..............9 Information displayed on Remote ................ 11 Commands and settings .................. -
Page 5: Introduction
Remote can be connected to DST4602 controllers only, with a software equal to or superior than 00.47. The first version of the Remote software is indeed 00.47, as the DST4602 one. It is important that both Remote and related DST4602 controllers have the same software revision. -
Page 6: Views Of The Device

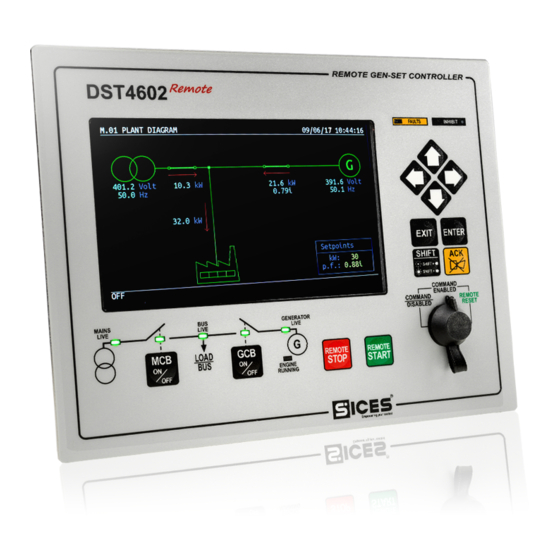

Views of the device Front view Rear view DST4602Remote User’s Manual... -
Page 7: Installation
To configure the parameters, it is necessary to have the software BoardPrg3, produced by SICES and in free download on our website (www.sices.eu). Once the software is installed on a PC, you just need to connect a USB cable between the PC and the J6 connector: Remote will be visible on the PC as an additional serial port (in case of problems, you can download for free also the USB port driver for Windows). -
Page 8: Digital Output
3.3 Connection to DST4602 via Ethernet The Remote Ethernet port is available on the J5 connector. In order to enable the connection to DST4602 via ETHERNET it is necessary to set the parameter P.0301 to "0". The connection can be carried out in two ways: ... - Page 9 DST4602 name (always using the parameter P.0331). Then Remote will contact the DNS server to get the IP address that corresponds to the name of DST4602. If the DHCP server is enabled on Remote, the DHCP server already provides to Remote the IP address of the DNS server;...
-
Page 10: Connection To Dst4602 Via Rs-485
DHCP protocol, set it to the same value of P.0456 on DST4602 P.0331 (univocal name of the network device). Set to the same value of P.0503 on DST4602. When it is possible, set both P.0332 parameters to “502”. Set the Subnet mask connected to Remote. The default value is P.0101... -
Page 11: Connection To The Dst4602 J14 Port
The connector J14 on DST4602 provides an insulated RS-485 serial port. The connection will be as follows: Near to the connector J14 on DST4602 there are two lever selectors called S4 and S5: set them as per above image. The table below summarizes the parameters to configure for the RS-485 connection with the... - Page 12 Set to the same value of P.0452 on DST4602. P.0303 Set to the same value of P.0470 on DST4602. P.0304 Set to the same value of P.0004 on DST4602. Note: if the two parameters are different, almost all commands on Remote will have no effects on DST4602. P.0361 Set to the same value of P.0453 on DST4602.
-
Page 13: Information Displayed On Remote
Information displayed on Remote The front panel of Remote duplicates every details of the DST4602 controller to which it is connected. The different pages on the display are the same of those displayed on a DST4602 Evolution, even if Remote is connected to a DST4602 standard. -
Page 14: Alarms Reset
(for example, in case of emergency plants, it accepts the command only if the mains is live). Note: if DST4602 accepts this command, it will start the engine and all the automatic operations to take the load (closure with or without synchronisation, power management, etc.). -
Page 15: Mcb Button
Remote controller, not of the DST4602 controller by Remote. The parameters change procedure is the same of the one for DST4602. On the page where “Program function” is showed, you need to press ENTER to enter the main menu of programming: ... - Page 17 SICES s.r.l. reserves the right to modify this document without prior notice. SICES has made any effort to ensure that the information herein provide are correct; in any case SICES does not assume any liability for the use these information.
