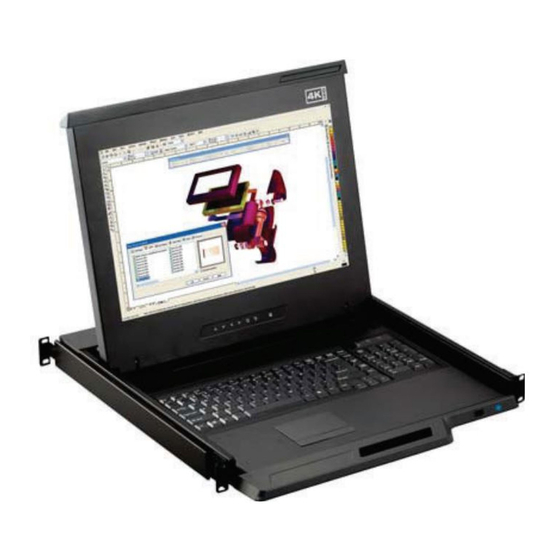

- Page 1 KVM switch and rackmount screen technology User Manual 1U 17″ 4K LCD Console Drawer K117 K1417 Ultra short depth 400mm / 15.7″ Designed and manufactured by Austin Hughes UM-CV-751-K117-Q221V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > K117 / K1417 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifications / OSD Product Specifications P.10 Keyboard / Mouse Specifications P.12 On-screen Display Operation ( OSD ) P.15 < Part. 3 > Option 3G / HD / SD-SDI Broadcast-grade input P.18... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > K117 / K1417 K117 / K1417 < 1.1 > Package Content K117 K1417 - USB cable X 2 - USB cable X 2 - Power cord X 1 - 4A Power adapter & Power cord X 1 - M6 screw, cage nut &... - Page 6 < 1.2 > Dimension - K117 Front View Rear View Keyboard Mouse AC Input 100~240V Power attached 6ft DP cable UNIT : mm 1mm = 0.03937 inch Side View Top View K117 Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight...
- Page 7 K117 / K1417 Dimension - K1417 Front View Rear View +12 VDC Power attached 6ft Keyboard Mouse DP cable UNIT : mm Side View 1mm = 0.03937 inch Top View K1417 Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 400 x 44 mm...
- Page 8 Intentionally Left Blank UM-CV-751-K117-Q221V1 www.austin-hughes.com...
-
Page 9: Installation
K117 / K1417 < 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 10 Installation - How to use the K117 drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-K117-Q221V1 www.austin-hughes.com...
- Page 11 K117 / K1417 < 1.3 > Installation - How to use the K1417 drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-K117-Q221V1 www.austin-hughes.com...
- Page 12 < 1.4 > K117 Connection to DP Server LCD Console Drawer POWER AC Input 100~240V attached 6ft DP cable DP server K117 Connection to external KVM LCD Console Drawer LCD Console Drawer POWER AC Input 100~240V attached 6ft DP cable Video Keyboard Mouse...
- Page 13 K117 / K1417 K1417 Connection to DP Server LCD Console Drawer +12 VDC attached 6ft DP cable DP server K1417 Connection to external KVM LCD Console Drawer LCD Console Drawer +12 VDC attached 6ft DP cable Video Keyboard Mouse USB Hub DP console KVM Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such...
-
Page 14: Specifications / Osd
< Part 2 > Specifications / OSD < 2.1 > Product Specifications K117 / K1417 Panel Native Resolution 3840 x 2160@60Hz Panel Size ( diagonal ) 17.3-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) - Page 15 K117 / K1417 Physical K117 K1417 Specification Product ( W x D x H ) 441.6 x 480 x 44 mm 441.6 x 400 x 44 mm 17.4 x 18.9 x 1.73 inch 17.4 x 15.7 x 1.73 inch Packing ( W x D x H ) 590 x 808 x 140 mm 590 x 622 x 140 mm 23.2 x 31.8 x 5.5 inch...
-
Page 16: Keyboard / Mouse Specifications
< 2.2 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 17 K117 / K1417 MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 18 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 19: On-Screen Display Operation ( Osd )
K117 / K1417 < 2.3 > On-screen Display Operation ( OSD ) K117 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or... - Page 20 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 21 K117 / K1417 On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
- Page 22 < Part 3 > Option < 3.1 > 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 23 K117 / K1417 < 3.2 > Options : HDMI - HDMI 2.0 ( HDCP 2.2 ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue.
- Page 24 < 3.3 > Options : Touchscreen & driver K17" USB Touchscreen Specification Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
- Page 25 K117 / K1417 Options : Touchscreen & driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/lcd-console-drawer/software Step 2. Double click the Setup.exe Step 3.
- Page 26 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 27 K117 / K1417 < 3.5 > K117 Options : ORB-2.1 2-Post Rack Mounting Brackets Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. flat head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
- Page 28 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-K117-Q221V1 P.24...
