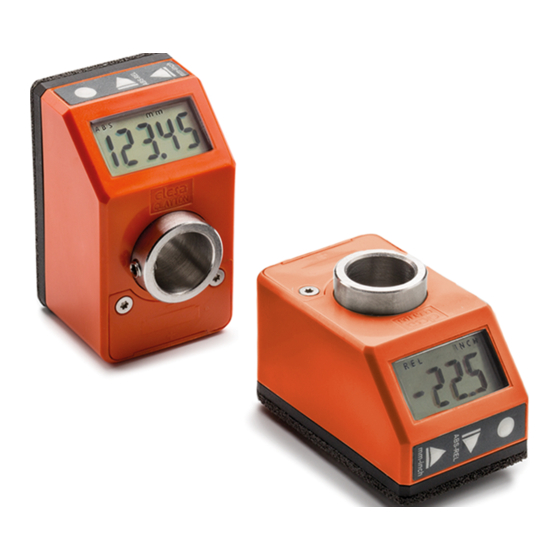

Elesa DD51-E Operating Instructions Manual

Electronic position indicators
Hide thumbs Also See for DD51-E:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS
Electronic position indicators
DD51-E
(GN 9054)*
DD51-E-RF
(GN 9154)*
*(Product series valid only for Germany)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD51-E and is the answer not in the manual?

Questions and answers

Related Manuals for Elesa DD51-E

Summary of Contents for Elesa DD51-E

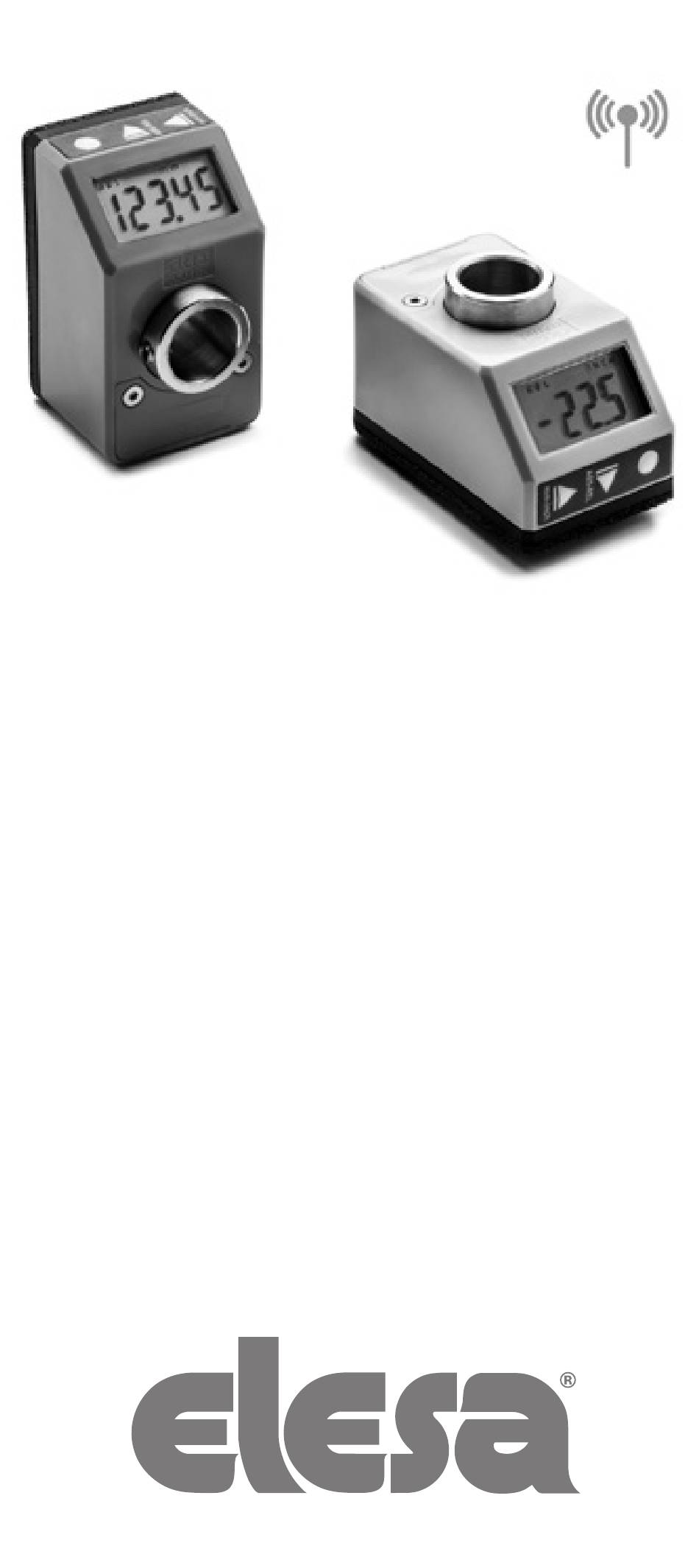

  • Page 1 OPERATING INSTRUCTIONS Electronic position indicators DD51-E (GN 9054)* DD51-E-RF (GN 9154)* *(Product series valid only for Germany)

  • Page 2: Table Of Contents

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) Contents 1. Safety Instructions Release Information 2. System description Wireless devices network 3. Assembly 4. Symbols on the display 5. Key functions 6. Turning on the system Turning off the system 7. Operating mode...
  • Page 3 DD51-E - DD51-E-RF (GN 9054) (GN 9154) RF version (DD51-E-RF) 7.6.1 Programming the network parameter (nEtid) and the channel parameter (nEtch) 7.6.2 Targets 8. Programming mode Programming parameters with numeric values Device parameters (in alphabetical order) Main menu tree Target menu tree...

  • Page 4: Safety Instructions

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) 1 Safety Instructions The product has been designed and manufactured in accordance with the current regulations. The product lea- ves the factory ready for use and complies with the safety standards. To maintain the product in this state, it is necessary that it...

  • Page 5: Release Information

    In case of malfunction, do not attempt any repair to the units and contact Elesa sales office. 1.1 Release Information Even if almost all the functionalities are the same as in the previous releases, the manual deals with devices with release higher than 5.01.00 (see 8.5.3).

  • Page 6: System Description

    (GN 9054) (GN 9154) 2 System description The electronic position indicators DD51-E, with battery power supply, can be used on passing through shafts in any position to provide the reading of the absolute or incremental positioning of a machine component.

  • Page 7: Wireless Devices Network

    PLC via radio. Elesa wireless network is made by the following components: - One control unit UC-RF - Max 36 device as DD51-E-RF, DD52R-E-RF or MPI-R10-RF Target positions Current positions The control unit UC-RF is provided with a standard interface...

  • Page 8: Symbols On The Display

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) 4 Symbols on the display 1. Relative mode 2. Low battey level 3. RF connection 4. Unit of measure (mm / inch) 5. Unit of measure (degrees) 6. Target position indications 5 Key functions...
  • Page 9 DD51-E - DD51-E-RF (GN 9054) (GN 9154) Select the: Absolute measuring mode Incremental measuring mode It is possible to choose one of the following options (see voice of the _ _ 0 _ _ menu – cap. 8.3): Digit increase /...

  • Page 10: Turning On The System

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) Programmable with one of the following options (see voice of the _ _ 0 _ 0 menu – cap. 8.3): [DEFAULT]: the L_OrG key combination sets the absolute value to the sum of the parameters Origin and Offset.

  • Page 11: Measure Unit Selection

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) If the absolute measuring mode is selected no symbol is shown on the display. It is possible to change the key function _ _ 0 _ _ by chosing one of the available options...

  • Page 12: Setting The Absolute Reference

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) 7.3 Setting the absolute reference After having selected the absolute measuring mode and stopped the shaft in the starting position or in the reference position, press the key combination to set the absolute value to the sum of the values of the parameters OrG (absolute reference value) and the selected OFFS (compensation value).

  • Page 13: Direct Programming Of The Absolute

    For programming the parameters listed above see parameter 0 _ _ _ 0 of cap. 8.3. 7.5 Targets The electronic position indicators DD51-E allows the set up of 32 target positions to store relevant machine configuration setting. To program the targets: - select tArGE in the main menu (see cap.

  • Page 14: Reaching The Target Position

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) To load a target: - select tArGE in the main menu (see cap. 8.3) - select LOAdt (see cap. 8.4) - select the target value ( LtG01 to LtG32 ) by using the...

  • Page 15: Display Target Mode

    7.5.3 Target tolerance Set the value of Ptoll parameter to define the tolerance allowed for the target (see cap. 8 for details). 7.6 RF version (DD51-E-RF) 7.6.1 Programming the network parameter (nEtid) and the channel parameter (nEtch) The radio network of the system is defined by the following...

  • Page 16: Targets

    (GN 9054) (GN 9154) 7.6.2 Targets Using the electronic position indicators DD51-E-RF, the target positions can be sent from the PLC to the indicators through the control unit. When a target is set, the behaviour is the same as described in cap. 7.5.

  • Page 17: Device Parameters (In Alphabetical Order)

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) 8.2 Device parameters (in alphabetical order) Standard Parameter Description Available options value Measurement --o counterclockwise direction rotation to increment Set direction the measure of the positive o-- clockwise rotation axis to increment the measure...

  • Page 18: Main Menu Tree

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) Standard Parameter Description Available options value Reading 0.01 ; 100.00 StEP 001.00 after one revolution Display d_toG0 : during the _ _ _ _ 0 visualization “ t_Sho ” positioning, the display during target...
  • Page 19 DD51-E - DD51-E-RF (GN 9054) (GN 9154) 0° diSP 180° SPEEd 1000 nEt id rAdio ch 01 nEt ch ch 36 0.01 ÷ 9.99 PtoLL Inch 0.001 ÷ 0.393 See Cap. 8.4 tArGE 0 _ _ _ _ nodEG ArCLr...

  • Page 20: Target Menu Tree

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) 8.4 Target menu tree StoP_t See Cap. 8.5 PtG 01 PrOG_t See Cap. 8.5 PtG 32 LtG 01 LOAd_t LtG 32 * Displayed only if a target position is set 8.5 Parameter value The parameter value depends on the unit of measure and resolution set.

  • Page 21: Additional Features

    The release number is shown with the “ r ” first letter. By pressing the key other information aree shown, which have to be comunicated to Elesa staff in case the support needed. 8.6.4 Password It is possible to avoid free access to the device menu by choosing “...

  • Page 22: Problem Solving

    DD51-E - DD51-E-RF (GN 9054) (GN 9154) For removing the battery from the battery compartment, we recommend the use of a magnet. By replacing the battery in less than 5 seconds, all the measurement and settings are not lost. If more time is required and the display turns off, the settings of the device have to be made or verified again.
  • Page 23 DD51-E - DD51-E-RF (GN 9054) (GN 9154) EU DECLARATION OF CONFORMITY (DOC) COMPANY NAME: Elesa S.p.a. POSTAL ADDRESS: Via Pompei 29 POSTCODE AND CITY: 20900 Monza TELEPHONE NUMBER: +39 039 28111 E-MAIL ADDRESS: info@elesa.com Declare that the DoC is issued under our sole...
  • Page 24 DD51-E - DD51-E-RF (GN 9054) (GN 9154) EU DECLARATION OF CONFORMITY (DOC) COMPANY NAME: Elesa S.p.a. POSTAL ADDRESS: Via Pompei 29 POSTCODE AND CITY: 20900 Monza TELEPHONE NUMBER: +39 039 28111 E-MAIL ADDRESS: info@elesa.com Declare that the DoC is issued under our sole...
  • Page 25 The texts and examples have been written with great care. Nonetheless, mistakes can always happen. The Company Elesa S.p.A. can neither be held legally responsible nor liable for lacking or incorrect information and the ensuing consequences. The Company Elesa S.p.A. reserves the right...
  • Page 26 The texts and examples have been written with great care. Nonetheless, mistakes can always happen. The Company Elesa S.p.A. can neither be held legally responsible nor liable for lacking or incorrect information and the ensuing consequences. The Company Elesa S.p.A. reserves the right...
