OPERATING INSTRUCTIONS

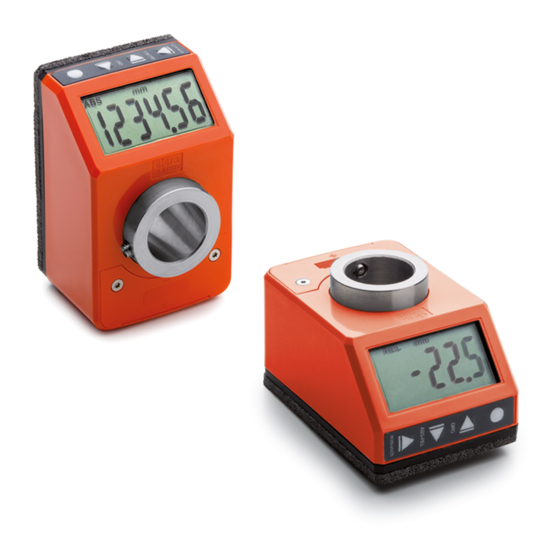

Electronic digital position indicators
DD52R-E
(GN 9053)*
DD52R-E-RF
(GN 9153)*
*(Product series valid only for Germany)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD52R-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elesa DD52R-E

Summary of Contents for Elesa DD52R-E

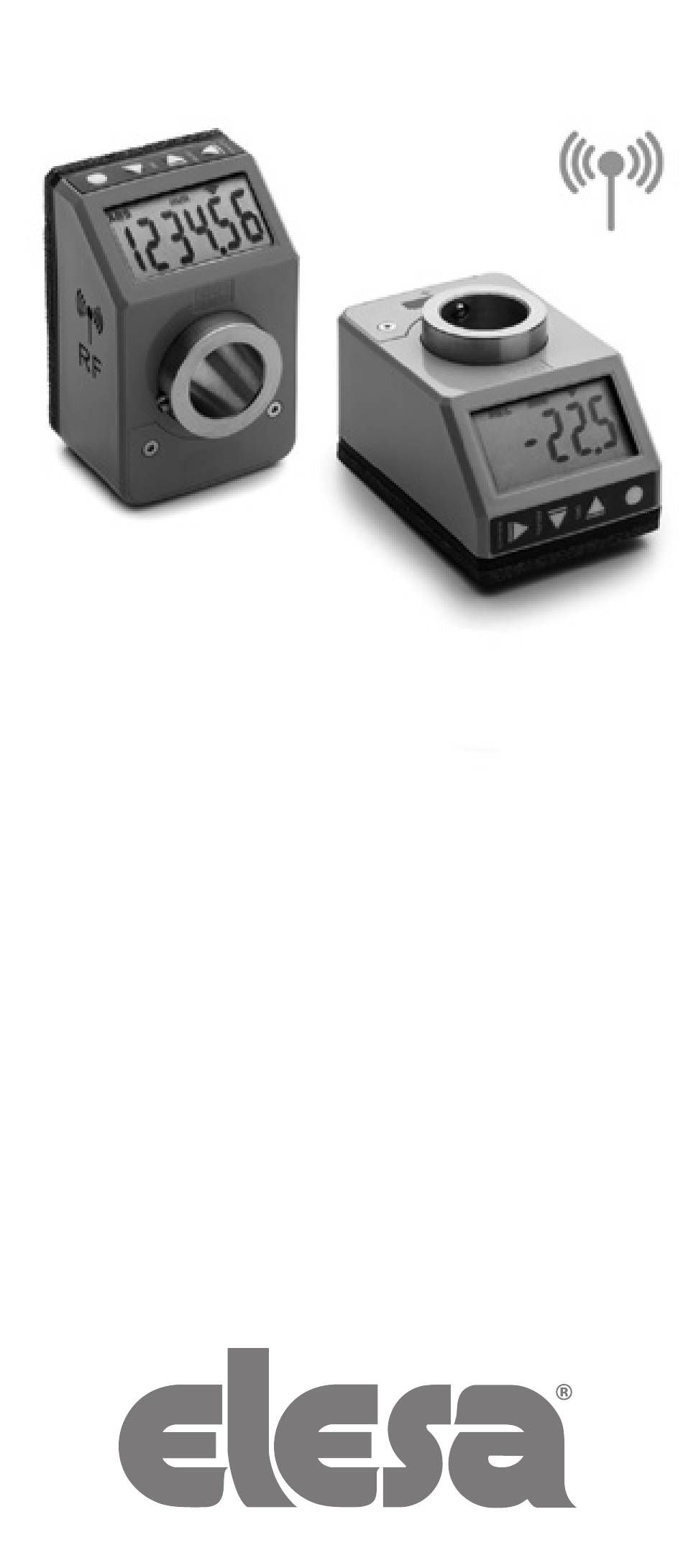

  • Page 1 OPERATING INSTRUCTIONS Electronic digital position indicators DD52R-E (GN 9053)* DD52R-E-RF (GN 9153)* *(Product series valid only for Germany)

  • Page 2: Table Of Contents

    DD52R-E - DD52R-E-RF Electronic digital position indicators Contents 1. Safety Instructions 1.1 Product release information 2. Description 2.1 Version - DD52R-E-RF 3. Installation 4. Display 5. Key functions 6. Switching on/off the device 6.1 Switching on the device 6.2 Switching off the device (for storage only)11 7.
  • Page 3 DD52R-E - DD52R-E-RF Electronic digital position indicators 7.9. Version - DD52R-E-RF 7.9.1 Programming the Net ID and Net CH parameters 7.9.2 Targets 8. Programming mode 8.1 Input of numeric parameters 8.2 Programmable parameters (in alphabetical order) 8.3 Main menu tree 8.4 Target menu tree...

  • Page 4: Safety Instructions

    To comply with FCC (for DD52R-E-RF) exposure compliance requirements, the antenna used for this transmitter not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 5: Product Release Information

    In case of specific need, it is recommended to ask the Elesa service staff for assistance. Elesa reserves the right, without further communication, to make improvements, additions, corrections to the menu items, that do not modify or affect the described functionality of the product but are necessary for the continuous improvement to which these products are subjected.

  • Page 6: Description

    > 20 ° C and <30°C and default setup. Furthermore, this value refers to the condition of the device when it leaves the Elesa factory. Long storage times must always be considered for the estimation of the battery life when the device becomes operational.

  • Page 7: Version - Dd52R-E-Rf

    Elesa wireless network is made by the following components: - One control unit UC-RF - Max 36 device as DD51-E-RF , DD52R-E-RF or MPI-R10-RF The UC-RF exchanges information with the DD52R-E-RF via radio frequency and makes it possible to set the target position and check the current position of each indicator.

  • Page 8: Display

    DD52R-E - DD52R-E-RF Electronic digital position indicators 4. Display 1. Relative mode indicator 2. Low battery level indicator 3. Connection indicator (only for DD52R-E-RF) 4. Unit of measure: mm, inch ou degrees 5. Target position indications 5. Key functions Key Or Key...
  • Page 9 DD52R-E - DD52R-E-RF Electronic digital position indicators Keep key pressed for 3 seconds to set the origin of the measurement. Programmable with one of the following options (see the _ _ _ _ 0 _ _ voice of the menu –...
  • Page 10 DD52R-E - DD52R-E-RF Electronic digital position indicators Unit of measure selection. The available options are: millimetres, inches and degrees. It is possible to choose one exit / of the following options (see select item 0 _ _ _ _ _ of the menu –...

  • Page 11: Switching On/Off The Device

    DD52R-E - DD52R-E-RF Electronic digital position indicators Programmable for one of the following functions (see menu item _ _ _ 0 _ 0 – chap.8.3): d_tArG : the key combination allows to load / program one of the 32 target positions (see chap.8.4)

  • Page 12: Operating Mode

    For greater flexibility of use, the DD52R-E permits storage of up to 10 different offset values. To program the offset values see the OFFS parameter in chap. 8.2.

  • Page 13: Resolution

    DD52R-E - DD52R-E-RF Electronic digital position indicators 7.2 Resolution The device manages different measure display resolution values for each of the three units of measure managed (mm, inch and degrees). The same display resolution set is used to set different parameters such as Origin, offsets and targets.

  • Page 14: Unit Of Measure Selection

    DD52R-E - DD52R-E-RF Electronic digital position indicators 7.4 Unit of measure selection Press the key to select the required unit of measure. The available options are millimetres, inches and degrees. The selected measure mode is indicated on the display by the...

  • Page 15: Reference Point Setting

    DD52R-E - DD52R-E-RF Electronic digital position indicators 7.6 Reference point setting Using this key combination it is possible to reset the measure references of the device by loading the origin value and an offset value (see chap. 7.1). By pressing the key combination the screen will show the last offset value used (e.g OFS 0 ).

  • Page 16: Targets

    OFF : the key combination is disabled. 7.8 Targets The DD52R-E allows you to set up to 32 target positions allowing you to store any relevant and frequently used settings. 7.8.1 Programming the targets To program the targets: - select tArGE in the main menu (see chap. 8.3) - select PrOGt (see chap.

  • Page 17: Indications For Reaching The Target Position

    DD52R-E - DD52R-E-RF Electronic digital position indicators direct access to target programming or loading (see chap.8.4). It is possible to change the function of the key by _ _ _ 0 _ 0 choosing one of the options available in the menu...

  • Page 18: Display In Target Mode

    7.9 Version - DD52R-E-RF 7.9.1 Programming the Net ID and Net CH parameters Each RF device is defined within the Elesa wireless network by the following two parameters: nEt id : this is a number between 0 and 99 and differentiates different subnets allowing different systems to work on the same RF channels.

  • Page 19: Targets

    UC-RF manual) it is necessary to take into consideration that the Net CHs are out of phase by 3 channels. In practice, a DD52R-E-RF set with Net CH = 1 will communicate with UC-RF on CH = 4 and so on for the following channels.

  • Page 20: Programmable Parameters (In Alphabetical Order)

    DD52R-E - DD52R-E-RF Electronic digital position indicators assume negative values, -1 will be displayed after digit 9 and, by pressing the key again, -. It is possible to select the digit to be changed by pressing the With each press, the digit to the right of the current one will be selected.
  • Page 21 DD52R-E - DD52R-E-RF Electronic digital position indicators Parameter Description Available options Default Offset It is possible to store up to OFFS values 10 offset value: OFS 0 ... OFS 9 The settable values depend on the resolution set as follows: Res = 1 : -19999 ÷...
  • Page 22 DD52R-E - DD52R-E-RF Electronic digital position indicators Parameter Description Available options Default Resolution Depending on the unit of 0.01 of the measurement, the displayed inches: permitted values are: 0.001 measure mm: 1 ; 0.1 ; 0.01 degrees: inches: 1 ; 0.1 ; 0.01 ; 0.001 0.01°...

  • Page 23: Main Menu Tree

    DD52R-E - DD52R-E-RF Electronic digital position indicators Parameter Description Available options Default Target It is possible to store up to tArGe 10 offset values: TG 01, ..., positions TG 32. The settable values depend on the resolution set as follows: Res = 1: -199999 ÷...
  • Page 24 DD52R-E - DD52R-E-RF Electronic digital position indicators 0° diSP 180° SPEEd 1000 nEt id rAdio ch 01 nEt ch ch 36 0.01 ÷ 9.99 PtoLL Inch 0.001 ÷ 0.393 degrees 0.01÷9.99 See chap. 8.4 tArGE 0 _ _ _ _ _...

  • Page 25: Target Menu Tree

    DD52R-E - DD52R-E-RF Electronic digital position indicators Target menu tree StoP_t -199999 ÷ 999999 PtG 01 PrOG_t -199999 ÷ 999999 PtG 32 LtG 01 LOAd_t LtG 32 The values must be divided by the number of decimal places of the resolution set.

  • Page 26: Lcd Test

    By pressing the key several times, other data are displayed which, if support is required, must be noted and provided to Elesa. WARNING: A variation of the last two digits in the revision code has no impact on the device’s features and performance.

  • Page 27: Display Messages And Troubleshooting

    DD52R-E - DD52R-E-RF Electronic digital position indicators 10. Display messages and troubleshoting Message on Description Action the display In operational mode, the device continues to correctly measure the position of the shaft. If the measured value is within the capacity of the display, it will be shown correctly.
  • Page 28 DD52R-E - DD52R-E-RF Electronic digital position indicators EU DECLARATION OF CONFORMITY (DoC) COMPANY NAME: Elesa S.p.a. POSTAL ADDRESS: Via Pompei 29 POSTCODE AND CITY: 20900 Monza TELEPHONE NUMBER: +39 039 28111 E-MAIL ADDRESS: info@elesa.com Declare that the DoC is issued under our sole responsibility and...
  • Page 29 DD52R-E - DD52R-E-RF Electronic digital position indicators EU DECLARATION OF CONFORMITY (DoC) COMPANY NAME: Elesa S.p.a. POSTAL ADDRESS: Via Pompei 29 POSTCODE AND CITY: 20900 Monza TELEPHONE NUMBER: +39 039 28111 E-MAIL ADDRESS: info@elesa.com Declare that the DoC is issued under our sole responsibility and...
  • Page 30 The Company Elesa S.p.A. can neither be held legally responsible nor liable for lacking or incorrect information and the ensuing consequences. The Company Elesa S.p.A. reserves the right to alter or improve the or parts of them and/ electronic position indicators or the enclosed brochures without prior notice ELESA S.p.A.
