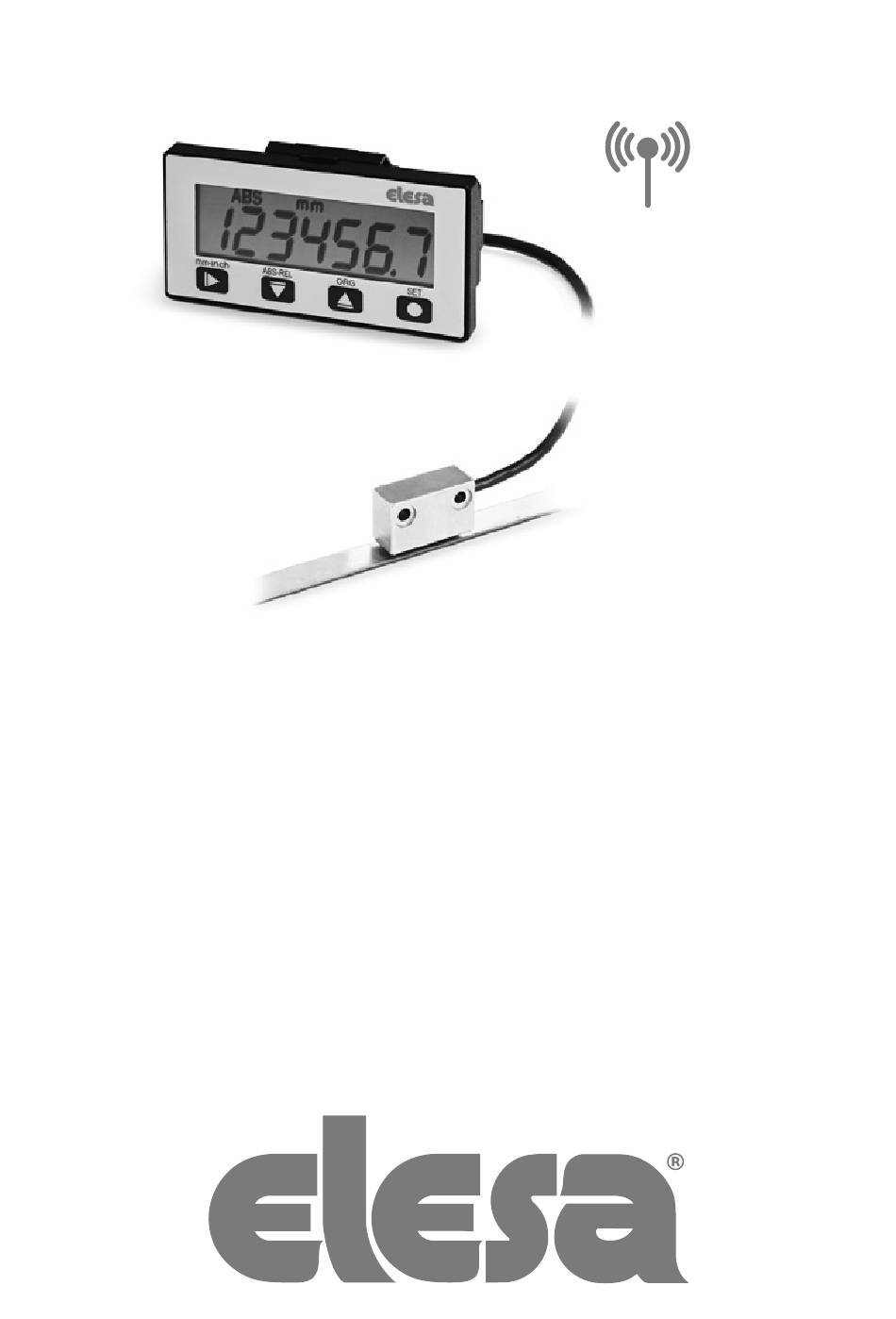

OPERATING INSTRUCTIONS
MAGNETIC MEASURING SYSTEM
MPI-R10-RF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPI-R10-RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elesa MPI-R10-RF

Summary of Contents for Elesa MPI-R10-RF

  • Page 1 OPERATING INSTRUCTIONS MAGNETIC MEASURING SYSTEM MPI-R10-RF...

  • Page 2: Table Of Contents

    MPI-R10-RF Magnetic measuring system These operating instructions are valid for the following products: CE.99971-W2 MPI-R10-RF-W2-IP54 CE.99976-W2 MPI-R10-RF-W2-IP67 Contents 1. SAFETY INSTRUCTION 2. VERSION AND FUNCTIONALITY 3. DEVICE DESCRIPTION 4. INSTALLATION 4.1 DISPLAY INSTALLATION 4.2 SENSOR INSTALLATION 4.3 MAGNETIC BAND INSTALLATION 5.
  • Page 3 MPI-R10-RF Magnetic measuring system 8.8.1 Programming the targets 8.8.2 Load a target 8.8.3 Direct access to programming and/or loading targets 8.8.4 Indications for reaching the target position 8.8.5 Display in target mode 8.8.5 Disabling the target 9. RF FUNCTIONALITIES 9.1 DEVICE ID 9.2 BINDING (PAIRING)

  • Page 4: Safety Instruction

    MPI-R10-RF Magnetic measuring system 1. Safety Instructions This device has been designed and manufactured in accordance with current legislation. To keep the product in this state, it must be assembled and used correctly, in strict compliance with the instructions contained in this instruction manual and with the following specific safety precautions. This manual is intended as an indispensable supplement to the existing documentation (catalogues, data sheets and assembly instructions).

  • Page 5: Version And Functionality

    Do not open or modify the device case. Tampering with this product can compromise the correctness and accuracy of its function. In the event of a malfunction, do not attempt to repair the unit and contact the Elesa sales office. 2. Version and functionality This manual was written for firmware version 1.0.xx of the device (see chap 10.6.5).
  • Page 6 ...). The indicated value is an estimate made in temperature conditions > 20 ° C and <30°C and default setup. Furthermore, this value refers to the condition of the device when it leaves the Elesa factory. Long storage times must always be considered for the estimation of the battery life when the device becomes operational.
  • Page 7 MPI-R10 FC-MPI The sensor cable, FC-MPI, is made from a metallic enclosure containing the sensor electronic, a multipolar flexible cable and a connector to plug it in the MPI-R10-RF . The sensor cable is available in different lengths. 17.5 Fig. 3-2 – FC-MPI – dimensional drawing Magnetic Bend The magnetic band M-BAND-10 is made of two separate parts: the magnetic band and the cover strip.
  • Page 8 MPI-R10-RF Magnetic measuring system M-BAND-10 Technical data Accuracy class ± 40 µm magnetic tape: nitrilic rubber carrier strip: stainless steel Material cover strip: stainless steel acrylic adhesive tape magnetic band: 10 mm ± 0.20 mm Width cover strip: 10 mm ± 0.20 mm magnetic band: 1.43 ±...

  • Page 9: Installation

    MPI-R10-RF Magnetic measuring system 4. Installation 4.1. Display installation 1. Drill the panel according to the template dimensions reported. 2. Remove all drilling burrs before fitting the device. 3. Fit the lower part of the case into the housing. 4. Press onto the upper part until the case is completely snapped in.

  • Page 10: Display

    MPI-R10-RF Magnetic measuring system The mounting surface must be flat. Buckles or bumps will lead to measuring inaccuracies. To guarantee an optimal adhesion of the adhesive tapes, the mounting surfaces must be perfectly cleaned, dry and smooth. The following surface roughness is recommended: Ra <= 3,2 N8 (Rz <= 25).
  • Page 11 MPI-R10-RF Magnetic measuring system Key Or Key Operating Programming Combination Mode Mode Keep pressed for 3 sec to enter the Programming Mode: Select the item menu or confirm during the pressing, the word “Fooo” selection or insertion of the appears on the display to indicate parameter value the activation progress.
  • Page 12 MPI-R10-RF Magnetic measuring system Key Or Key Operating Programming Combination Mode Mode While entering the numeric value of a parameter: Short press: decreases the Select between absolute and relati- selected digit by one ve measure mode: with each press. It is possible to choose one of...
  • Page 13 MPI-R10-RF Magnetic measuring system Key Or Key Operating Programming Combination Mode Mode In relative measure mode, resets the measure. In absolute measure mode it is programmable for one of the following functions (see the _ _ 0 _ _ _ 0 voice of the menu –...

  • Page 14: Switching On/Off The Device

    MPI-R10-RF Magnetic measuring system 7. Switching on/off the device 7.1. Switching on the device After you have read and understood the section “Safety Instructions”, proceed by switching on the device. mm-inch To switch on the device, hold down while pressing the key The display will switch on and the device will be ready for use.

  • Page 15: Resolution

    MPI-R10-RF Magnetic measuring system For greater flexibility of use, the MPI-R10 permits storage of up to 10 different offset values. To pro- gram the offset values see the OFFSEt parameter in chap. 10.2. However, during installation and for other specific applications, it is useful to be able to reset the inter- nal reference value in another position.

  • Page 16: Unit Of Measure Selection

    MPI-R10-RF Magnetic measuring system 8.4 Unit of measure selection mm-inch Press the key to select the required unit of measure. The available options are millimetres, inches and degrees. The selected measure mode is indicated on the display by the symbols: - mm : millimeters - INCH : inches - °...

  • Page 17: Direct Programming Of Origin, Offset And Step Parameters

    MPI-R10-RF Magnetic measuring system The available options are: - L_OFFS (DEFAULT): the key combination allows you to select an offset . - SEtOrG: the key combination allows to reset the origin. ABS-REL - OFF : the keys combination is disabled.

  • Page 18: Targets

    MPI-R10-RF Magnetic measuring system 8.8 Targets The MPI-R10-W2 permits to set up to 32 Targets allowing you to store any relevant and frequently used positions. 8.8.1 Programming the targets To program the targets: - activate the Programming Mode - selet tArGEt in the main menu (see chap 10.3).

  • Page 19: Indications For Reaching The Target Position

    MPI-R10-RF Magnetic measuring system The available options are: - tArGet : enable the direct load or program targets functions. - OFF (DEFAULT): the keys combination is disabled. 8.8.4 Indications for reaching the target position When a target is selected ot is is sent by the PLC the device will suggest the direction of movement of the sensor to reach the target through the symbols of the target direction indicators.

  • Page 20: Disabling The Target

    . To maintain target selection, press the key 9. RF functionalities MPI-R10-RF is compatible with the Elesa’s wireless network that allow electronic meters and devices to communicate via radio with a PLC. The Elesa’s wireless network is made by the following components:...

  • Page 21: Device Id

    WARNING: The new generation network (W2) is not compatible with the previous one. 9.1 Device ID Each Elesa’s RF device of the W2 series is characterized by a 4-byte identifier uniquely assigned at the factory. This number, called device ID, can be viewed by selecting the dd_Id item in the Radio menu.

  • Page 22: Heartbeat

    MPI-R10-RF Magnetic measuring system operation. This is done simply by selecting and then confirming the Unbin item in the Radio menu. WARNING: Once no longer bound, the remote device will automatically re-associate with the first UC-RF that requests it. If the previously associated UC-RF is reachable by the RF signal, the remote device must also be removed from table of associated devices of the latter.

  • Page 23: Targets

    HB frequencies you set. 9.4 Targets Using MPI-R10-RF , target positions can be sent from the PLC to the devices through the control unit. When a target is set, the behaviour is the same as decribed in chap.8.8. ATTENTION: If target transmission on UC-RF is enabled, it will be refreshed on the device every time a communication occurs.

  • Page 24: Imput Of Numeric Parameters

    MPI-R10-RF Magnetic measuring system 10.1. Input of numeric parameters ABS-REL Press the key keys to increase or decrease the value of the displayed parameter. Each time the aforementioned keys are pressed, the value will be increased or decreased by one unit, ten, ABS-REL hundred,...
  • Page 25 MPI-R10-RF Magnetic measuring system Parameter Description Available options Default Arrow to target The parameter set the direction of the arrow FLIP_tG devices direction devices when the target is not reached Heart beat rate Radio readings update rate: HbrAte 507.8 ms 1015.6 ms...
  • Page 26 MPI-R10-RF Magnetic measuring system Parameter Description Available options Default Programmable value Res = 1:-999999 ÷ 999999 Reference value Res = 0.1:-99999.9 ÷ 99999.9 OriGin 0000.000 Res = 0.01:-9999.99 ÷ 9999.99 Res =0.001:-999.999 ÷ 999.999 ON : the system requires the password 22011 to enter the programming mode.

  • Page 27: Main Menu Tree

    MPI-R10-RF Magnetic measuring system 10.3. Main menu tree Level Level Options dir-- --dir OriGin -999999 ÷ 999999 OFS 0 OFFSEt -999999 ÷ 999999 OFS 9 If mm: 1, 0.1,0.01 If inch 1, 0.1, 0.01, 0.001 OFS 0 CorrECt 0.000001÷9.999999 OFS 9 Radius 0.01÷9999.99...

  • Page 28: Target Menu

    MPI-R10-RF Magnetic measuring system 10.4.Target menu Level Level Options ABS-REL PtG 00 -199999÷999999 PrOG_t … PtG 31 LtG 00 Load_t … LtG 31 10.5. Radio menu Level Level Options HbrAtE 0÷7 HbFrAt 0÷7 mm-inch HbAUPd OFF - on Unbind YES – no...

  • Page 29: Additional Functions

    MPI-R10-RF Magnetic measuring system 10.6. Additional functions 10.6.1. Reset To set only the internal measurement reference to zero: - select the rESEt item from the main menu ABS-REL - using the keys select OrG . - press the key to confirm...

  • Page 30: Test Lcd

    - r bYtE: root of the serial number. In the RF version it is equivalent to the most significant byte of the device Id The data in the Info menu must be noted and provided to Elesa In case support request. 10.6.6 Password You can prevent unwanted access to the device’s menu by choosing ON in the PaSS menu item.

  • Page 31: Battery Replacement

    MPI-R10-RF Magnetic measuring system d tout: allows you to set the time value in seconds of device inactivity after which the display turns off. rSSi: sets an acceptable RF reception quality level and adjusts the transmit power based on this 11.

  • Page 32: Display Messages And Troubleshoting

    MPI-R10-RF Magnetic measuring system 12. Display messages and troubleshoting Message on Description Action the display The value of the maximum speed, the frequency of transmissions and the number of operations in general affect the life of the battery. The symbol or indicates the direction of rotation that caused the overflow.
  • Page 33 MPI-R10-RF Magnetic measuring system EU DECLARATION OF CONFORMITY (DoC) COMPANY NAME: Elesa S.p.a. POSTAL ADDRESS: Via Pompei 29 POSTCODE AND CITY: 20900 Monza TELEPHONE NUMBER: +39 039 28111 E-MAIL ADDRESS: info@elesa.com Declare that the DoC is issued under our sole responsibility and belongs to the following product:...
  • Page 34 The texts and examples have been written with great care, nonetheless, mistakes can always happen. The Company Elesa S.p.A. can neither be held legally responsible nor liable for lacking or incorrect information and the ensuing consequences. The Company Elesa S.p.A. reserves the right to alter or improve the electronic position devices or parts of them and/or the enclosed brochures without prior notice.
