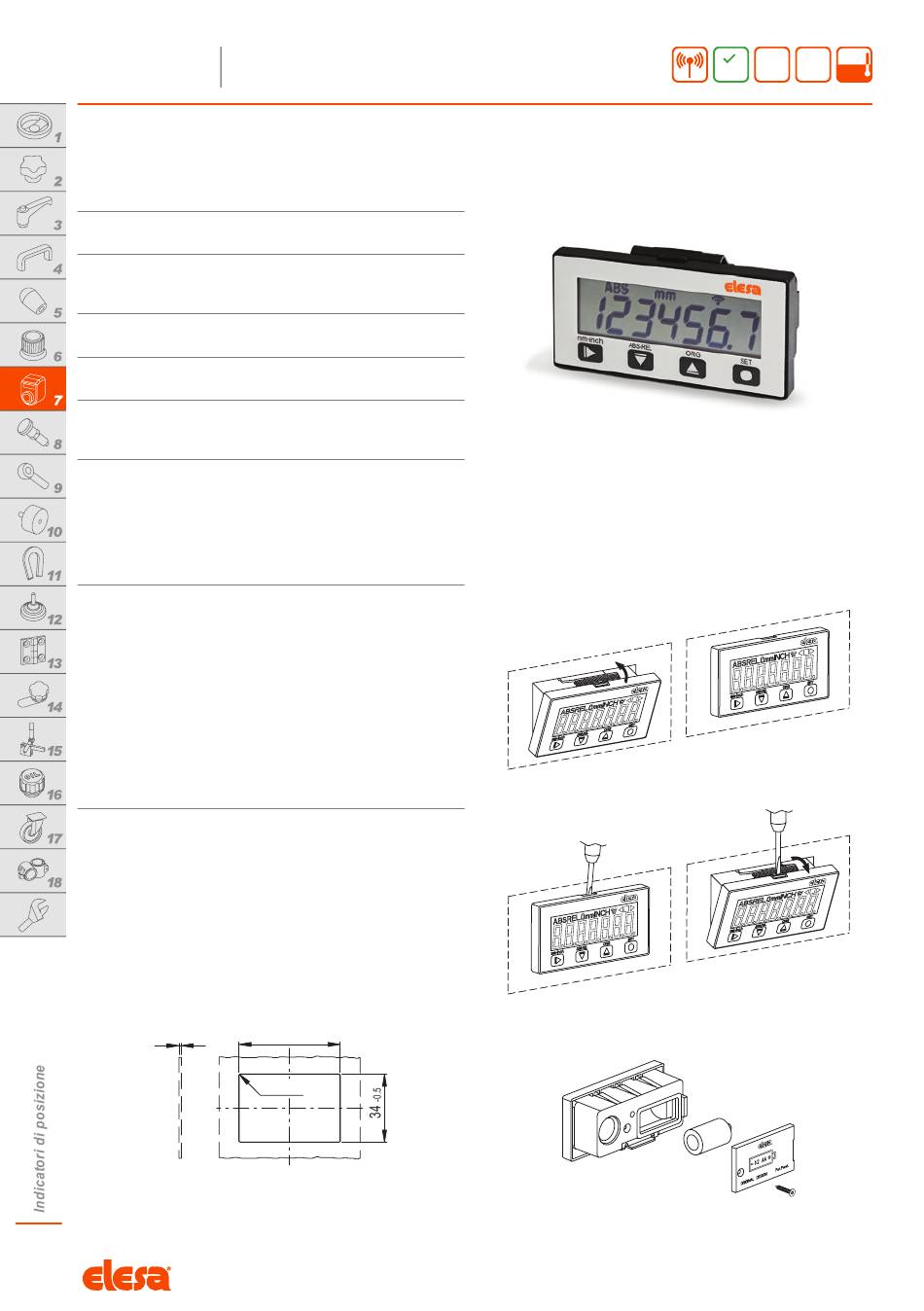

MPI-R10-RF
CASSA DI CONTENIMENTO
Tecnopolimero a base poliammidica (PA) rinforzato fibra vetro, colore
nero, finitura mat.
Aletta di ritegno in tecnopolimero a base acetalica (POM), colore nero,
finitura mat.
MASCHERINA CON TASTIERA
Policarbonato resistente a grassi, oli, alcoli ed acidi minerali.
GRADO DI PROTEZIONE
- IP54, vedi Tabella EN 60529 (a pag. A-19).
- IP67, vedi Tabella EN 60529 (a pag. A-19).
SENSORE MAGNETICO CON CAVO
FC-MPI (vedi pag. -) da ordinare separatamente.
ACCESSORI A RICHIESTA
Banda magnetica M-BAND-10 (vedi pag. -).
ESECUZIONI SPECIALI A RICHIESTA
Mascherina del visualizzatore con simboli grafici, marchi o diciture per-
sonalizzate.
ISTRUZIONI DI MONTAGGIO
- Praticare nella lamiera (spessore 0.7÷2 mm) la foratura secondo la
dima indicata.
- Eliminare le bave di foratura prima di inserire la cassa di conteni-
mento.
- Inserire in battuta la parte inferiore della cassa di contenimento nel
foro e premere fino al completo inserimento a scatto (Fig.1).
ISTRUZIONI PER SOSTITUZIONE BATTERIA
- Rimuovere l'indicatore dalla sua sede, esercitando una pressione
sull'aletta di ritegno portandola a battuta con l'ausilio di un cacciavite
a taglio (Fig.2).
- Svitare la vite autofilettante in acciaio INOX AISI 304 con cava esa-
lobata per utensile TORX
(Fig.3).
- Sostituire la batteria ponendo attenzione a non invertire la polarità
(vedi la posizione indicata sul coperchio).
- La sostituzione della batteria se effettuata entro 10 secondi (durata
dell'alimentazione tampone) evita la perdita dei parametri di confi-
gurazione.
* Marchio registrato della TEXTRON INC.
0.7÷2
2
8/2022
Sistema magnetico di misura
Modalità lineare e angolare, trasmissione dati tramite radiofrequenza
®*
T06 e rimuovere la piastrina di chiusura
Dima di foratura
67
+0.2
R max 1
Proprietà dei modelli riservata ai termini di legge. Disegni e immagini non riproducibili se non citando la fonte.
IP
IP
RoHS
54
67
Fig.1
Fig.2
Fig.3
50
+
°
0
°
