P7500 TriMode™ Probe Deskew Procedures
3.
Locate the solder box on the Deskew Fixture. Ensure that
the solder pins are in the middle of the solder box as shown
in the box in Figure 3
4.
Solder the first of two P75TLRST solder tips to the solder
pins.
5.
Push the pins through the solder box and rotate the P75TLRST
so that it is on the opposite side of the solder box as shown in
Figure 5. Secure the cable of the P75TLRST in the slot in the
clamp.
2
White Paper

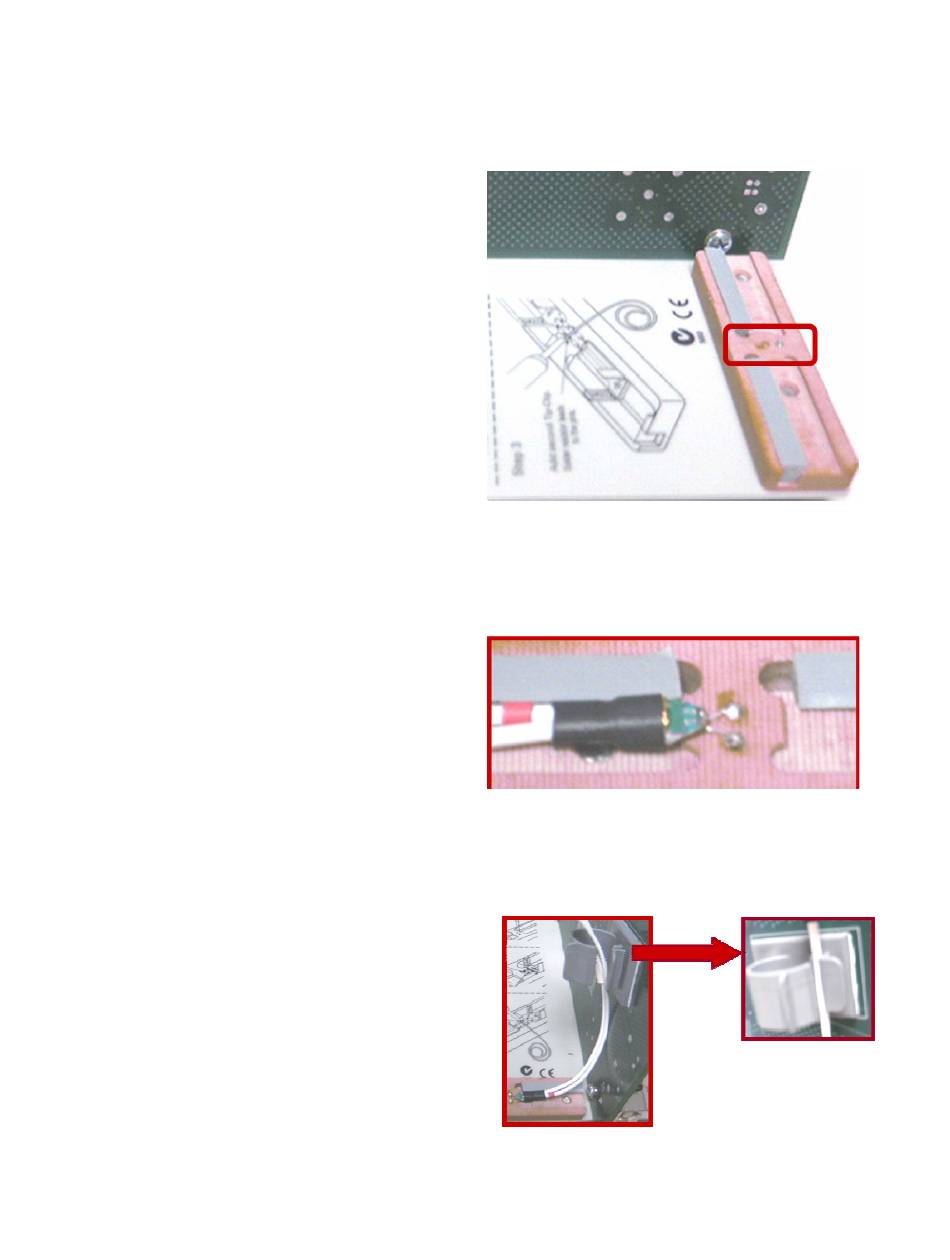

Figure 3: Location of the Solder Pins
Figure 4: P75TLRST Soldered to the Solder Pins
Figure 5: P75TLRST Secured in the Clamp
