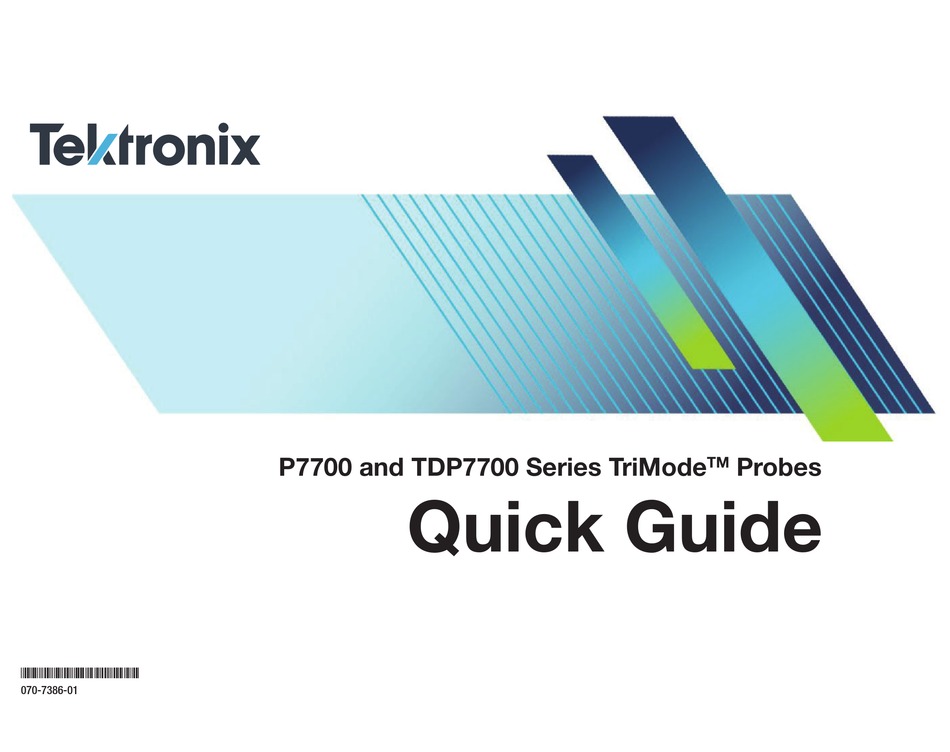

- Page 1 P7700 and TDP7700 Series TriMode Probes Quick Guide *P070738601* 070-7386-01...
- Page 2 TekFlex Accessory Options Standard Accesories Color Bands Active Tip Adhesive Tape Wire Spool P7700: 016-1948-00 █ P77STFLXA P/N: 020-3167-00 P/N: 017-0103-00 TDP7700: 016-2111-00 Optional Accesories Large Metal Cable Band P/N: 129-1867-00 Coaxial Tip Active Tip Magnetic Cable Holder P77STFLXB P/N: 121-1003-00 P77STCABL █...
- Page 3 Get to know your Browser Spring action, Assembling the Browser Adjusting the tip spacing better grip 1. Insert TekFlex Connector Pinch to Open .5mm (0.019 in) compression 2. Attach collar, lock in place 5.3mm (0.210 in) 0.2mm (0.008 in) with thumb screw maximum minimum The Spotlight...
- Page 4 Testing your circuit with the solder-in-tips Step Step Step Step For additional strain relief mount magnetic bar to metal surface near DUT. Attach Metal Cable Band to boot or cable, then attach to Magnetic Cable holder. Step Orient the Flex Tip with the key feature as shown.
