P7260
6 GHz 5X/25X Active Probe

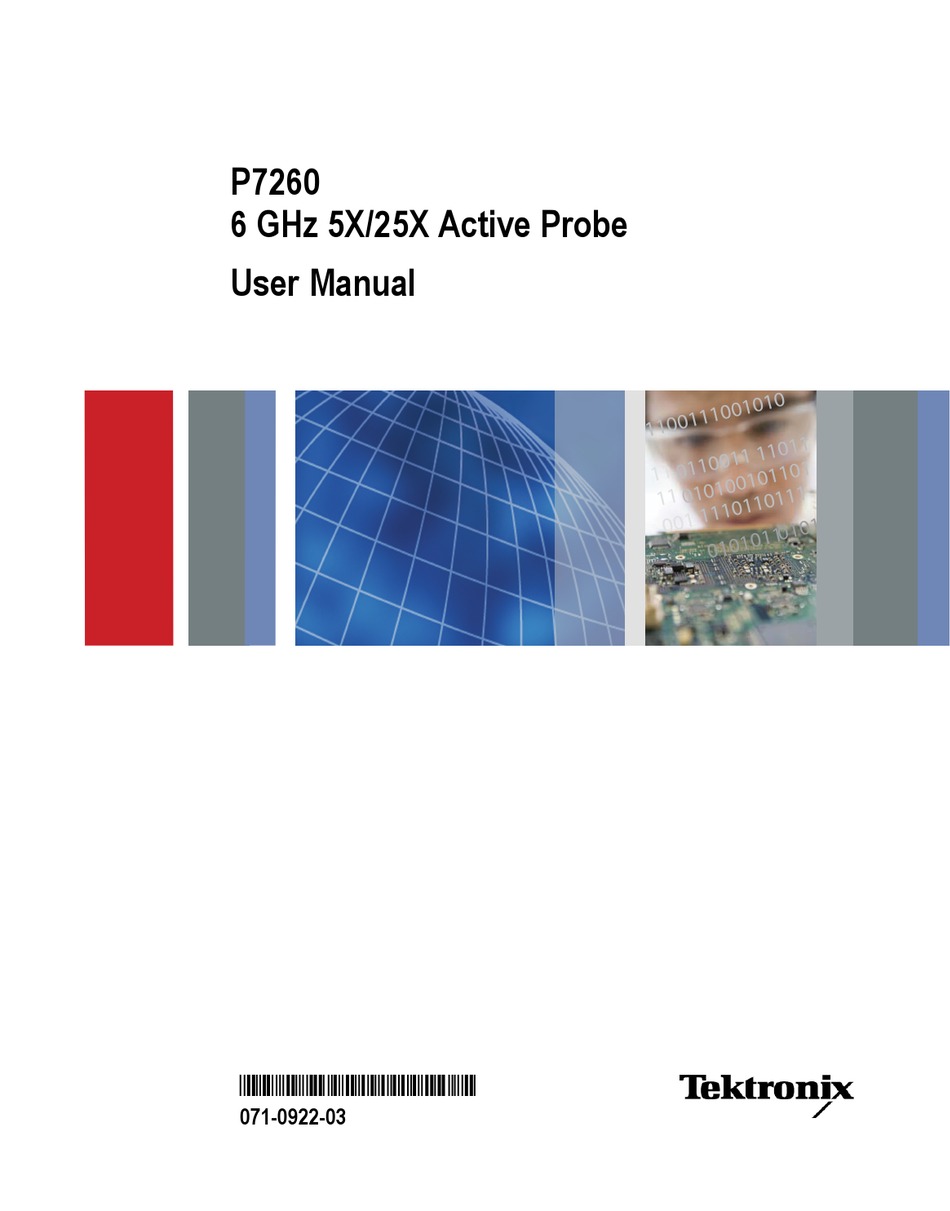

User Manual
*P071092203*
071-0922-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P7260 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix P7260

Summary of Contents for Tektronix P7260

  • Page 1 P7260 6 GHz 5X/25X Active Probe User Manual *P071092203* 071-0922-03...
  • Page 3 P7260 6 GHz 5X/25X Active Probe User Manual www.tektronix.com 071-0922-03...
  • Page 4 Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077 TEKTRONIX, TEK, and TekConnect are registered trademarks of Tektronix, Inc.
  • Page 5 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.

  • Page 7: Table Of Contents

    SELECT Button ....... P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 8 ........P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 9 Table of Contents List of Figures Figure 1: P7260 Probe featuring the TekConnect interface Figure 2: Connecting and disconnecting the probe ..Figure 3: Probe functional check connections ...
  • Page 10 ....Table 9: Certifications and compliances ....P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 11: General Safety Summary

    Do Not Operate With Suspected Failures. If you suspect there is damage to this product, have it inspected by qualified service personnel. Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 12 WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. Symbols on the Product. These symbols may appear on the product: CAUTION Refer to Manual P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 13: Preface

    Preface This is the instruction manual for the P7260 6 GHz 5X/25X Active Probe. Read this preface to learn how this manual is structured and what conventions it uses. Before using this manual or the P7260 probe, read the General Safety Summary section at the beginning of this manual for safety and other important background information.

  • Page 14: Manual Conventions

    This manual uses certain conventions that you should become familiar with before using the P7260 probe. Safety Symbols and terms related to safety appear in the General Safety Summary found at the beginning of this manual. P7260 6 GHz 5X/25X Active Probe User Manual viii...

  • Page 15: Product Description

    Product Description The Tektronix P7260 is a 6 GHz active probe. It has a low input capacitance (<0.5 pF) and high input resistance (20 k at DC , which minimize circuit loading over a wide bandwidth range. The P7260 probe features selectable attenuation to maximize dynamic range and sensitivity.

  • Page 16: Options

    Product Description The small profile and low-mass head of the P7260 make probing dense circuitry by hand fast and easy. Complimentary accessory tips and adapters help you connect with a wide variety of circuit architectures. For hands-free probing, the square-pin adapter...

  • Page 17: Installation

    Product Description Installation The P7260 connects directly to the TekConnect interface on the TekConnect host instrument. Firmware Requirements To ensure compatibility of your TekConnect host instrument with the probe, your TDS7000, or CSA7000 series host instrument must have the firmware upgrade V2.1.0 or higher.

  • Page 18: Led Flashes

    LED Flashes Two green LEDs, labeled 5X and 25X, are visible on the top of the P7260 compensation box. See Figure 2, above. When you connect the probe to a channel on the host instrument, the LEDs immediately show the following information: H The results of diagnostic tests performed on internal circuitry of the probe.

  • Page 19: Changing Probe Attenuation

    Product Description NOTE. If you see a different set of flashes than described on page 4, the internal circuitry of the P7260 has failed in some way. To avoid inaccurate probing, do not use the probe before referring to page 32 of the Troubleshooting section.

  • Page 20: Cleaning

    While cleaning the compensation box and cable, use only enough solution to dampen the cloth or swab. No part of the P7260 is waterproof. General Care. Do not use chemical cleaning agents. Do not use chemicals that contain acetone, benzene, toluene, xylene, or similar solvents because they will damage the plastic.

  • Page 21: Features And Accessories

    Features and Accessories The P7260 has several features and accessories designed to make probing and measurement a simpler task. To familiarize yourself with these items and their uses, refer to Table 1. Refer to Table 2 on page 16 for descriptions of optional accessories that you can order.
  • Page 22 Features and Accessories Table 1: P7260 features and standard accessories (Cont.) Feature/Accessory Description Attenuation selector. The P7260 probe features 5X and 25X attenuation settings. Green LED indicators, labeled 5X and 25X, are visible on the top of the compensation box. When a setting is selected, the LED beside it lights.
  • Page 23 Features and Accessories Table 1: P7260 features and standard accessories (Cont.) Feature/Accessory Description Square-pin adapter. This adapter has a socket Square-pin adapter for holding a square- pin, or an adapter such as Square-pin the SureToe, SMT KlipChip, or Y-lead adapter.
  • Page 24 Square-pin adapter. Y-lead adapter Using the black lead for ground is recommended. Square-pin adapter Tektronix part number 196- - 3434- - XX (1 each) P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 25 Features and Accessories Table 1: P7260 features and standard accessories (Cont.) Feature/Accessory Description SMT KlipChip. Use the clips of the SMT KlipChip Square-pin adapter to access fragile, dense circuitry. SMT KlipChip To use SMT KlipChips with the probe, connect the Square-pin adapter to the probe head. Plug...
  • Page 26 Features and Accessories Table 1: P7260 features and standard accessories (Cont.) Feature/Accessory Description Solderable resistive lead and ground lead. Square- - pin adapter Ground lead These two accessory leads provide a convenient way for you to make hands-free, soldered probe connections to your circuit.
  • Page 27 When selecting the grounding connection, maintain as short a ground path as possible. Refer to page 26 for more grounding information. Tektronix part number: 016- - 1917- - XX (1 set) Three-inch ground lead. Use the three-inch ground lead for general probing. The socketed end of the lead may be connected to any of the probe tips and adapters or fitted onto 0.025 inch...
  • Page 28 This accessory is not intended for use with the Square-pin adapter (Tektronix part number: 016-1910-XX). Tektronix part number: 196- - 3482- - XX (1 set) Z lead. Use the Z lead to ground the probe when the distance between the DUT test point and ground is greater or less than about 0.100 in.
  • Page 29 Features and Accessories Table 1: P7260 features and standard accessories (Cont.) Feature/Accessory Description Plastic accessory box. Use the plastic box to store the probe accessories when not in use. Tektronix part number: 006-7164-XX Instrument case. The instrument case protects the probe from harsh environments and provides room for storing optional accessories.

  • Page 30: Table 2: P7260 Optional Accessories

    Features and Accessories Table 2 lists the optional accessories you can order for your P7260 probe. Table 2: P7260 optional accessories Accessory Description IC Grabber. Use the IC Grabber to probe the leads on integrated circuits that are surface- mounted.
  • Page 31 (deskew) and to optimize host instrument gain and offset accuracy at the probe tip. You can deskew up to six probes simulta- neously with the deskew fixture. Tektronix part number: 679-0484-XX P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 32 Features and Accessories P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 33: Host Instrument-To-Probe Calibration

    Test Equipment Setup. Do the following: 1. Connect the P7260 to a channel on your host instrument. 2. Set the host instrument to display the probe channel. 3. Connect the Square-pin adapter to the probe head. Plug the...

  • Page 34: Figure 3: Probe Functional Check Connections

    Do not remove the probe during this operation. 4. When probe calibration is complete, the Probe Status field reads either Pass or Fail. If the field reads Fail, contact your Tektronix service center. 5. Close the probe calibration panel.

  • Page 35: Functional Check

    19 of the Host Instrument-to-Probe Calibration section. When you do a performance verification for your probe refer to the P7260 6 GHz 5X/25X Active Probe Service Manual. The manual is available as a printable .pdf file on the Application Software CD (Tektronix part number 063-3376-XX) that accompanies your host instrument, or on the Tektronix website.
  • Page 36 5.0 V (2.5 divisions above ground reference). 8. Set the probe offset to 5.0 V (4.9995 V). The signal will move to - - 5.0 V (2.5 divisions below ground reference). P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 37: Configuration

    Configuration The P7260 provides the host instrument with the probe model number, serial number, and attenuation factor. When connected to a host instrument with a TekConnect interface, display readouts are corrected for the probe attenuation factor, the instrument input is set to 50 , and the coupling is set to DC.

  • Page 38: Figure 4: Dynamic And Offset Limitations

    Configuration NOTE. The P7260 has a ±5.0 V offset range which can be measured in 5X or 25X gain using offset. The linear operating range at 5X is ±0.75 V. The linear operating range at 25X is ±3.0 V. See Figure 4, below.

  • Page 39: Operating Basics

    Please follow these operating guidelines to get optimum performance from your P7260 probe. Handling the Probe Exercise care when using and storing the P7260. The probe and cable are susceptible to damage caused by careless use. Handling. Always handle the probe using the compensation box and probe head, avoiding undue physical strain to the probe cable, such as kinking, excessive bending, or pulling.

  • Page 40: Input Linear Dynamic Range

    Refer to instructions for manually changing attenuation of the probe, or use the GPIB commands available on your host instrument. The probe head amplifier that the P7260 uses has a limited linear operating range. Refer to Table 6 in the Specifications section for dynamic range and linearity limits.

  • Page 41: Ground Lead Inductance

    Ground Lead Inductance When you touch the probe tip to a circuit element, you are introducing a new resistance, capacitance, and inductance into the circuit. Refer to Figure 6 on page 28. P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 42: Figure 6: Ground Lead Equivalent Circuit

    The low-inductance ground contacts, described in Features and Accessories starting on page 7, can help you reduce the effects of ground lead inductance on your measurements. P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 43: Electrical Effects Of Adapters

    Probe with only short Z- - lead or ground pogo pin Square- - pin adapter Square- - pin adapter and solder adapter Figure 7: Typical effects of using the probe tip adapters P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 44 Operating Basics P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 45: Troubleshooting

    Troubleshooting When you connect the probe to a channel on the host instrument, two green LEDs, visible on the top of the P7260 compensation box, flash to show the results of diagnostic tests performed on the internal circuitry of the probe. The typical flash pattern response is described on page 4 of the Product Description section.

  • Page 46: Nontypical Led Response When You Press The Select Button

    H Try another channel or a different host instrument. If the response is the same, contact your nearest Tektronix service center. P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 47: Table 5: Warranted Electrical Specifications

    Specifications These specifications apply to a P7260 6 GHz 5X/25X Active Probe when used with a Tektronix TekConnect host instrument. The probe and host instrument must first be allowed to warm up for 20 minutes before measurements are taken. Warranted Characteristics Warranted characteristics in Table 5 describe guaranteed perfor- mance within tolerance limits or certain type-tested requirements.

  • Page 48: Table 6: Typical Electrical Characteristics

    ±0.5% over dynamic range ±3.0 V Nondestructive Input Voltage Range - - 30 V to +30 V (DC + peak AC) Input Resistance 20 kΩ at DC (See Figure 8 on page 35) Input Capacitance <0.5 pF P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 49: Figure 8: Typical Input Impedance And Phase Versus Frequency

    - - 90 ° 0 KΩ - - 110 1 MHz 10 MHz 100 MHz 1 GHz 10 GHz Magnitude Frequency (Hz) Phase Figure 8: Typical input impedance and phase versus frequency P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 50: Figure 9: Typical Bandwidth At 5X Attenuation

    - - 20 dB - - 23 dB - - 26 dB - - 29 dB - - 32 dB - - 35 dB Frequency (Hz) Figure 9: Typical bandwidth at 5X attenuation P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 51: Figure 10: Typical Bandwidth At 25X Attenuation

    - - 34 dB - - 37 dB - - 40 dB - - 43 dB - - 46 dB - - 49 dB Frequency (Hz) Figure 10: Typical bandwidth at 25X attenuation P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 52: Figure 11: Probe Head And Compensation Box Dimensions

    31.8 mm (1.250 in) 68.07 mm (2.680 in) 6.6 mm (0.260 in) 43.8 mm (1.725 in) 76.2 mm (3.00 in) 104.1 mm (4.10 in) Figure 11: Probe head and compensation box dimensions P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 53: Table 7: Typical Mechanical Characteristics

    Non- - operating: 90% RH at 86 _F (+30 _C) 75% RH up to +167 _F (+75 °C) The environmental exposure is as stated in Tektronix Design Standard 062-2847-00 for Class 5 equipment. P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 54: Table 9: Certifications And Compliances

    Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations. Equipment Type Test and measuring Polution Degree Pollution Degree 2 (as defined in IEC 61010-1. Note: Rated for indoor use only. P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 55: Replaceable Parts

    Replaceable Parts This section contains a list of replaceable parts for the P7260. Use this list to identify and order replacement parts. Parts Ordering Information Replacement parts are available from or through your local Tektronix, Inc. service center or representative.

  • Page 56: Using The Replaceable Parts List

    Indented items are part of, and included with, the next higher indentation. Attaching parts must be purchased separately, unless otherwise specified. Abbreviations Abbreviations conform to American National Standards Institute (ANSI) standard Y1.1 P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 57 Replaceable Parts P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 58: Figure 13: P7260 Standard Accessories

    Replaceable Parts P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 59 Replaceable Parts P7260 6 GHz 5X/25X Active Probe User Manual...

  • Page 60: Figure 14: P7260 Optional Accessories

    Replaceable Parts P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 61 Replaceable Parts P7260 6 GHz 5X/25X Active Probe User Manual...
  • Page 62 Replaceable Parts P7260 6 GHz 5X/25X Active Probe User Manual...
