P6243
1 GHz 10X Active Probe
ZZZ
Instructions
*P070940804*
070-9408-04
Advanced Test Equipment Rentals
www.atecorp.com 800-404-ATEC (2832)

Advertisement

Table of Contents
loading

Related Manuals for Tektronix P6243

Summary of Contents for Tektronix P6243

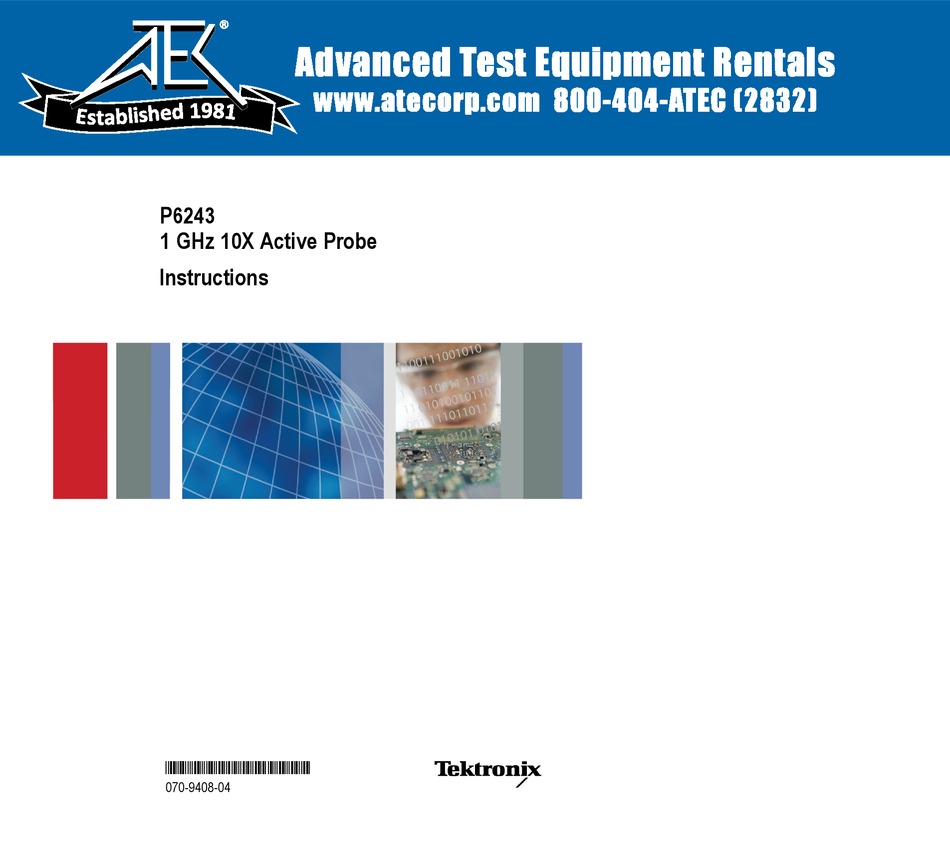

  • Page 1 ® Advanced Test Equipment Rentals www.atecorp.com 800-404-ATEC (2832) P6243 1 GHz 10X Active Probe Instructions *P070940804* 070-9408-04...
  • Page 3 P6243 1 GHz 10X Active Probe Instructions www.tektronix.com 070-9408-04...
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending.
  • Page 5 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.

  • Page 7: Table Of Contents

    ........P6243 Instructions...
  • Page 8 ........P6243 Instructions...

  • Page 9: General Safety Summary

    Do Not Immerse in Liquids. Clean the probe using only a damp cloth. The cloth must be dampened with either isopropyl alcohol or a mild detergent and water solution. Do not use any other chemicals or abrasives to clean the probe. P6243 Instructions...
  • Page 10 WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. Symbols on the Product. These symbols may appear on the product: DANGER Protective Ground ATTENTION Double High Voltage (Earth) Terminal Refer to Manual Insulated P6243 Instructions...

  • Page 11: Getting Started

    Getting Started The Tektronix P6243 is a 1 GHz, 10X active FET probe with less than 1 pF input capacitance. The low input capacitance and high input resistance of the probe minimize circuit loading over a wide bandwidth. The probe has a small profile and low-mass that makes probing crowded circuits fast and easy.

  • Page 12: Features And Accessories

    Getting Started Features and Accessories The P6243 Active Probe has features and accessories to make probing and measurement a simpler task. Please take a moment to familiarize yourself with these items and their uses. Probe Head Assembly — The probe head is designed for ease of use and high performance.
  • Page 13 Right-angle adapter — Use the right-angle adapter for low-profile probing of 0.025-inch diameter square pins. The right-angle adapter allows the P6243 to lie flat against a circuit board. This enables probing in vertical circuits such as computer or commu- nications backplanes, or in tight areas such as between circuit cards.
  • Page 14 0.100 inch header pins (such as FlexLead™ adapters). Attach the signal-ground adapter by gently pressing it into the ground socket on the probe head. FlexLead Adapter Signal Ground Adapter P6243 Instructions...
  • Page 15 SF502 -- The blue SureFoot tip is compatible with 0.025 inch JEDEC and 0.65 mm EIAJ packages. SF503 -- The red SureFoot tip is compatible with 0.5 mm EIAJ packages. P6243 Instructions...

  • Page 16: Configuration

    50 Ω, and the coupling is set to DC. CAUTION. Do not attempt to install the P6243 Active Probe on a non-TEKPROBE connector. Damage to the probe and connector may result.

  • Page 17: Figure 1: Probe Compensation Connections

    6. If you intend to compensate the probe, refer to the user manual for your oscilloscope and perform the calibration routine now. 7. Disconnect the probe tip from the SIGNAL terminal and connect it to the GND terminal. The oscilloscope display should be at the ground reference. P6243 Instructions...
  • Page 18 Getting Started P6243 Instructions...

  • Page 19: Operating Basics

    Input Linear Dynamic Range The probe head amplifier used by the P6243 Active Probe has a limited linear operating range. To keep the input linearity error less than 4% you must limit the signal input voltage to ±8 V (DC + peak AC).

  • Page 20: Ground Lead Length

    When you are probing a circuit, you should always use as short a ground lead as possible between the probe head and circuit ground. The input capacitance of the P6243 and the inductance of the ground lead results in a resonant circuit that can ring. Using a shorter ground lead will minimize ringing.

  • Page 21: Figure 3: Ground Lead Equivalent Circuit

    The preceding equation shows that reducing the ground lead inductance will raise the resonant frequency. If your measurements are affected by ringing, your goal is to lower the inductance of your ground path until the resulting resonant frequency is well above the frequency of your measurements. P6243 Instructions...

  • Page 22: Figure 4: Low-Inductance Grounding

    This method is very useful when making many measurements on the same package. Using a ground plane on the package makes probing the package easier, and avoids adding unnecessary ground lead length. P6243 Instructions...

  • Page 23: Figure 5: Using A Surefoot Adapter For Grounding

    SureFoot™ Grounding If you cannot use the low-inductance grounding method recom- mended, the probe may be grounded to the package under test using a SureFoot adapter. Refer to Figure 5. Figure 5: Using a SureFoot Adapter for Grounding P6243 Instructions...

  • Page 24: Probe Tip Test Points

    NOTE. It is not recommended that pieces of solid-core copper wire be used as test points. If the wire breaks off in the probe tip socket, it may be impossible to remove the wire, and it will prevent insertion of other accessory tips. P6243 Instructions...

  • Page 25: Specifications

    Specifications The warranted specifications in Table 1 apply to a P6243 Active Probe when the probe and the host instrument are allowed to warm up for 20 minutes before measurements are taken. The warranted specifications that appear in boldface type are specifications checked in the Performance Verification section of the service manual.
  • Page 26 -- 15 V to + 15 V (DC + peak AC) Non-Destructive Input Voltage Range (See Figure 10) DC Offset Drift 100 V/°C or less at output of probe 1 mV/°C or less displayed on screen with TEKPROBE interface 5.3 ns ±0.2 ns Delay Time P6243 Instructions...

  • Page 27: Figure 7: Typical Frequency Response

    - - 2 dB - - 3 dB - - 4 dB - - 5 dB - - 6 dB - - 7 dB - - 8 dB 1 MHz 10 MHz 100 MHz 1 GHz Figure 7: Typical Frequency Response P6243 Instructions...

  • Page 28: Figure 8: Typical Linearity Error Vs

    150 mV 100 mV 50 mV 0 mV - - 50 mV - - 100 mV - - 150 mV - - 20 V - - 10 V 10 V 20 V Figure 8: Typical Linearity Error vs. V P6243 Instructions...

  • Page 29: Figure 9: Typical Input Impedance Vs. Frequency

    Specifications 10 MΩ 1 MΩ 100 kΩ kΩ 1 kΩ 100 Ω 10 Ω 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz 100 MHz 1 GHz Figure 9: Typical Input Impedance vs. Frequency P6243 Instructions...

  • Page 30: Figure 10: Typical Non-Destructive Peak Voltage Derating Vs. Frequency

    Specifications 25 V 20 V 15 V 10V at 1 GHz 10 V 6V at 3 GHz 1 MHz 10 MHz 100 MHz 1 GHz Figure 10: Typical Non-Destructive Peak Voltage Derating vs. Frequency P6243 Instructions...
  • Page 31 Cycle 1 Assurance Level II for packaged products 0 -- 20 lbs. Test 2 for Warehouse and Vehicle Stacking (Compression) is omitted Tektronix standard 062--2858--00, Rev. B, Class 5 Altitude Operating: 4,572 m (15,000 ft) Non--Operating: 15,240 m (50,000 ft)
  • Page 32 Specifications P6243 Instructions...
