P7500 TriMode™ Probe Deskew Procedures
8. Close the clamp by pushing down on the lever to secure the Tip-
Clip assembly as shown in Figure 8. NOTE: To avoid
unnecessary wear on the clamp elastomer, leave the clamp in
the open position when not using the fixture.
9. The P75TLRST solder tips are positioned in the Deskew Fixture as
shown in Figure 9. Ensure the polarities of the wire leads are
attached to the correct connector. The red bands on the wires
should be located on the same side.
10. Reference your oscilloscope manual for detailed deskew adjustment
procedures.
Copyright © 2009, Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of
Tektronix, Inc.All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.
03/09 JS/WWW

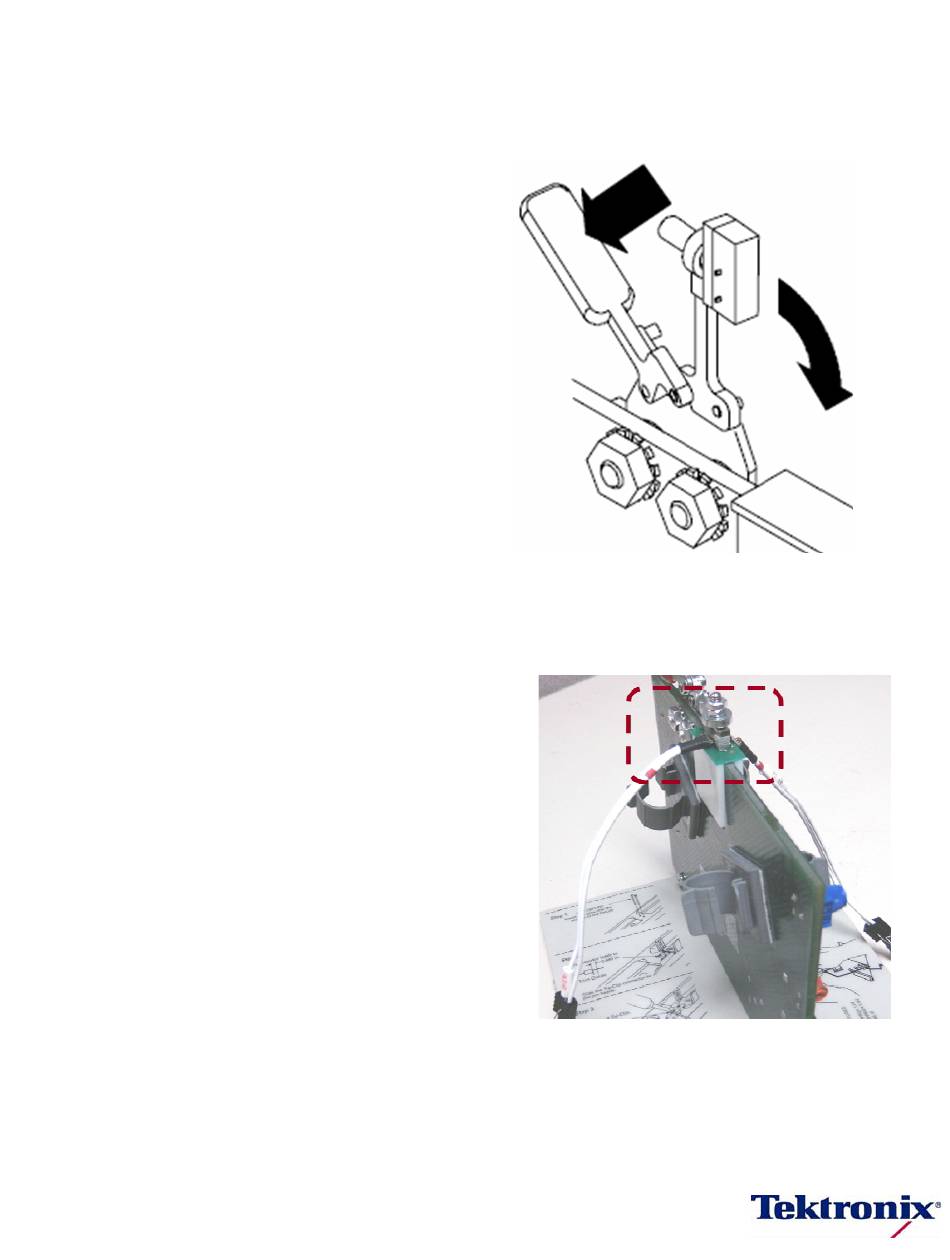

Figure 8: Securing the Clamp on the Deskew Fixture
Figure 9: Two P75TLRSTs secured in the Deskew Fixture
