MultiRheo Filter - MRFD3

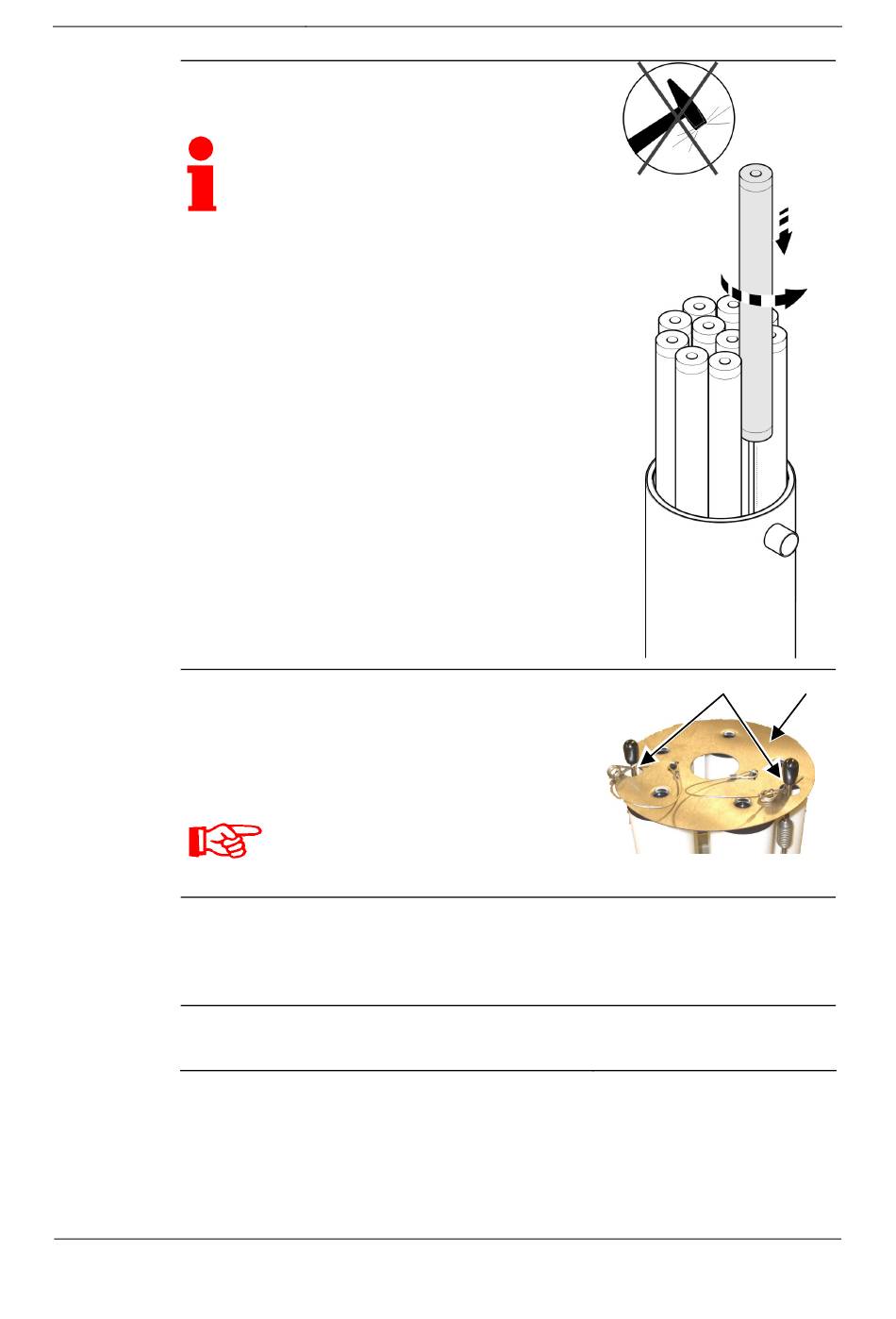

10. Insert the new filter elements into the element
mount by rotating them slightly while applying
pressure to the element
Do not use excessive force or a hammer,
etc.
11.
Place the element retaining plate [B] back in
place making sure it is pointed in the right
direction so that it secures all the filter elements
in place.
Insert the cotter pins [A] in the designated
holes.
inserted if you lift up the knob [C].
12. Clean the sealing surface on the housing.
Check the O-ring for damage. Replace it if
necessary.
Wet the O-ring with fluid and insert it.
13. Clean the sealing surface on the cover.
Put the cover on.
