MultiRheo Filter - MRFD3
Take note that the nominal size of the connected hoses/piping must be at least as
large as the inlet port sizes.
Make sure that no vibrations or stress/loading from other machinery and equipment
are carried over to the filter unit. Make sure that no vibrations or stress/loading from
other machinery and equipment are carried over to filter unit. Use hoses or
expansion joints if necessary.

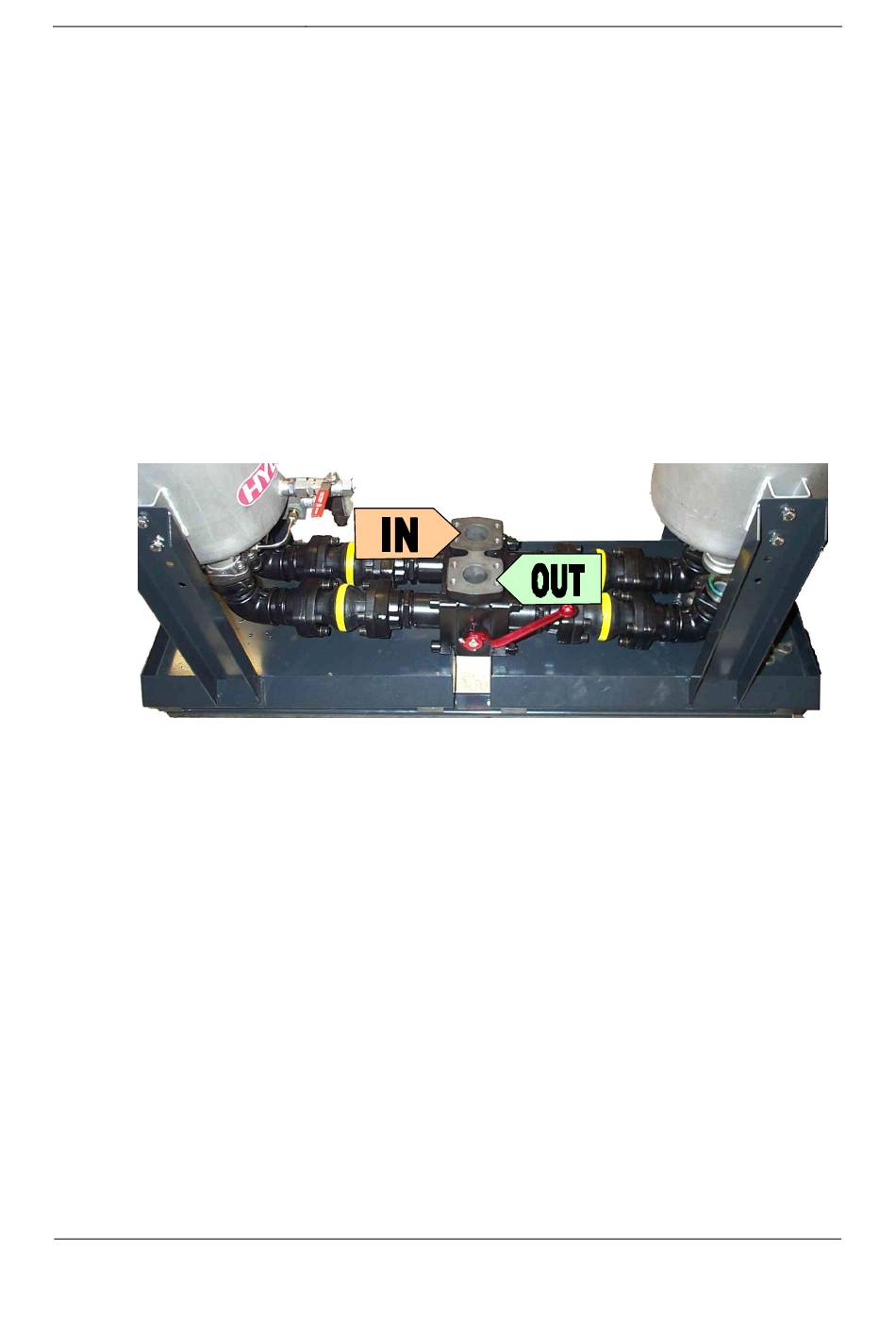

Connecting the IN suction port connection

Connect the suction-side connection via a negative pressure-resistant hose or
through a pipeline. Make sure that no vibrations or stress/loading from other
machinery and equipment are carried over to filter housing. Use hoses or expansion
joints if necessary.

Connecting the MRF D3 hydraulically

Connect the MRFD3 on the suction and pressure side via the pipe and hose lines
with the SAE 2" interface. Make sure that no vibrations or stress/loading are carried
over from the pipelines to the change-over valve. If necessary use an expansion
joint.
