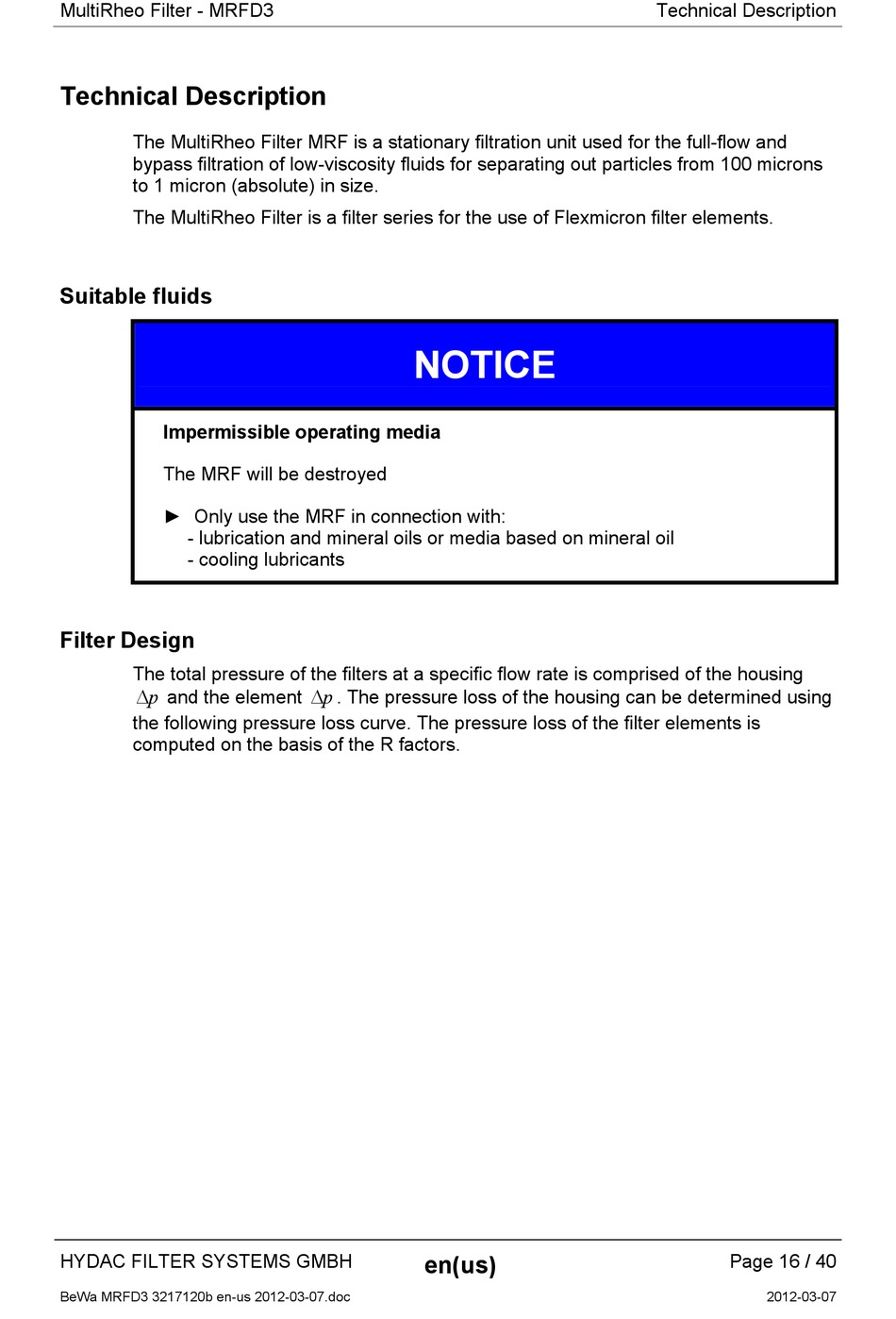

Technical Description

The MultiRheo Filter MRF is a stationary filtration unit used for the full-flow and
bypass filtration of low-viscosity fluids for separating out particles from 100 microns
to 1 micron (absolute) in size.
The MultiRheo Filter is a filter series for the use of Flexmicron filter elements.

Suitable fluids

Impermissible operating media
The MRF will be destroyed
► Only use the MRF in connection with:
- lubrication and mineral oils or media based on mineral oil
- cooling lubricants

Filter Design

The total pressure of the filters at a specific flow rate is comprised of the housing

p
and the element
the following pressure loss curve. The pressure loss of the filter elements is
computed on the basis of the R factors.
