Configuring Mqtt Settings - Danfoss VLT MCD 600 Installation Manual

PROFINET Card
Installation Guide

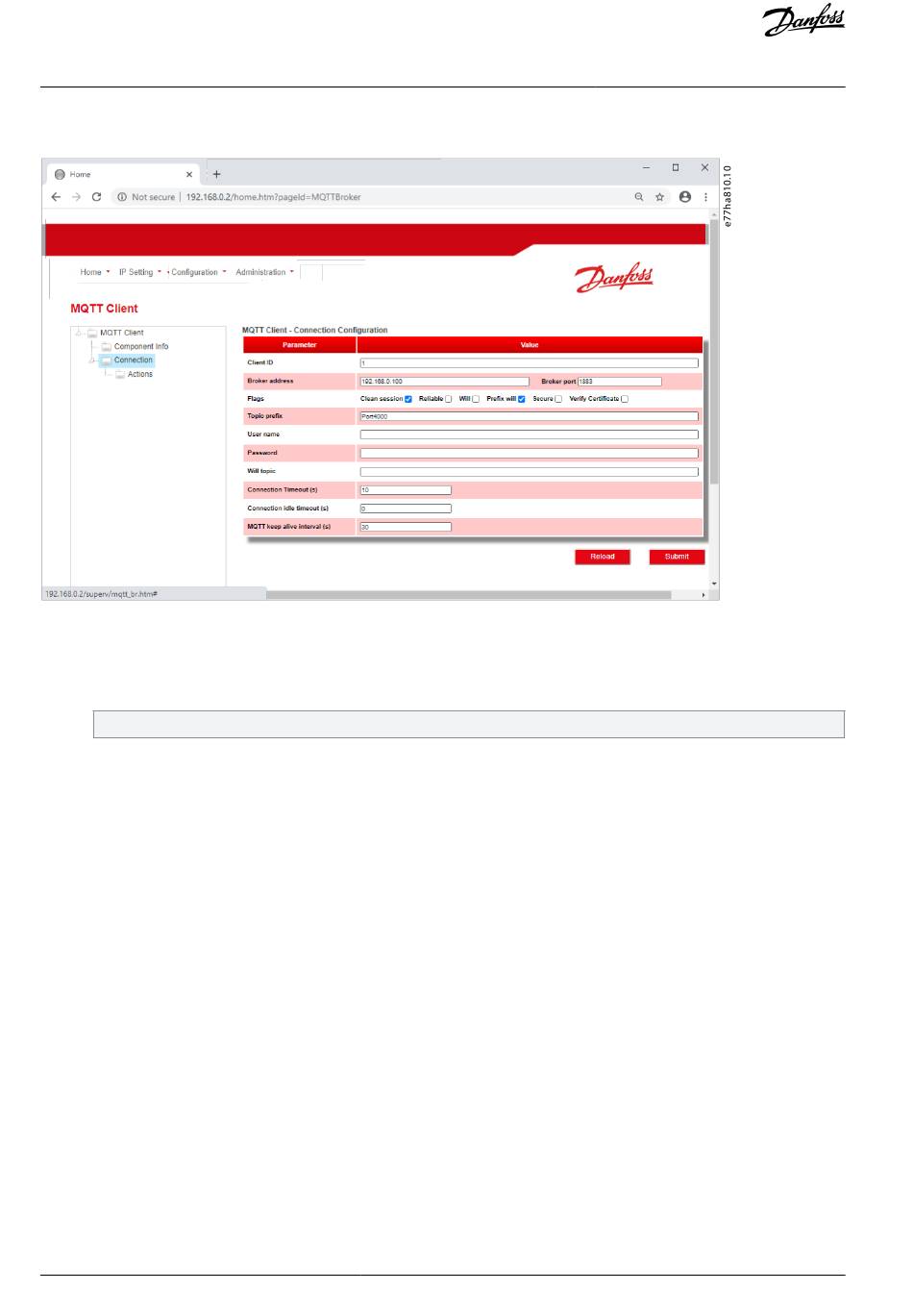

4.3.3.1 Configuring MQTT Settings

Procedure
1.
Connect to the web server and click Configuration.
2.
Select MQTT Client.
3.
Tick the Enable checkbox to enable MQTT client operation.
The MQTT client is enabled by default.
4.
Click Connection and configure the settings as required.
5.
Click Connections⇒Actions to select which information the card should publish.
6.
Click Submit to save all settings in the card.
12 | Danfoss A/S © 2020.12
Device Configuration
AN353424578485en-000101 / 130R0947
