UVP DigiDoc-It Imaging System

System Setup

DO NOT ATTEMPT TO CONNECT ANY WIRING WHILE THE EQUIPMENT IS CONNECTED TO ANY POWER SUPPLY.
CAUTION: Do not install the system in places with high moisture, dust or high temperature. Do not use any oil or
petroleum based cleaner for the cabinet. Use only mild soap or detergent solution for cleaning. Ensure that the
system is turned OFF during cleaning. Keep the equipment away from motors or other large magnetic equipment
apparatus.
Place the Hood on top of the Transilluminator
The Hood Enclosure can be used with a UVP Transilluminator PLUS. When using a UVP Transilluminator, the optional
drawer is required.
CAUTION: All Analytik Jena Transilluminators are powerful sources of UV radiation that will cause damage to
unprotected eyes and skin. Before operating any unit, be sure all personnel in the area are properly protected. UV
Blocking Eyewear is highly recommended and should be worn. Refer to the Accessories section of this manual for UV
Blocking Eyewear.
UVP Transilluminator PLUS
Remove the UV blocking clear cover from the Transilluminator.
1.
Position the transilluminator so the switch is facing the user.
2.
Connect the power cord to the back of the transilluminator and
3.
connect the plug to a power source.
Place the Hood Enclosure on top of the Transilluminator surface so
4.
that the filter glass is covered.
UVP Transilluminator and Drawer
Remove the UV blocking clear cover from the Transilluminator.
1.
Place the Transilluminator into the drawer.
2.
Connect the power cord to the back of the transilluminator and
3.
push the plug through the access hole in the back of the drawer.
Connect the plug to the power source.
4.
Access to the transilluminator switch is via the access port on the
5.
front of the drawer.
Place the DigiDoc-it hood over the drawer.
6.
Camera Assembly
The camera will be installed in the DigiDoc-It hood at the Analytik
1.
Jena factory.
To connect the power cable to the camera, thread the camera's
2.
power cable through the round notched hole from the back of the
camera cap and plug it into the camera as shown.
To connect the USB cable to the camera, thread the camera's USB cable through the round notched hole
3.
from the back of the camera cap and plug into the camera. Leave the other end unplugged until ready to
load the software.
Plug the camera's power supply into a wall outlet or surge-protector receptacle.
4.

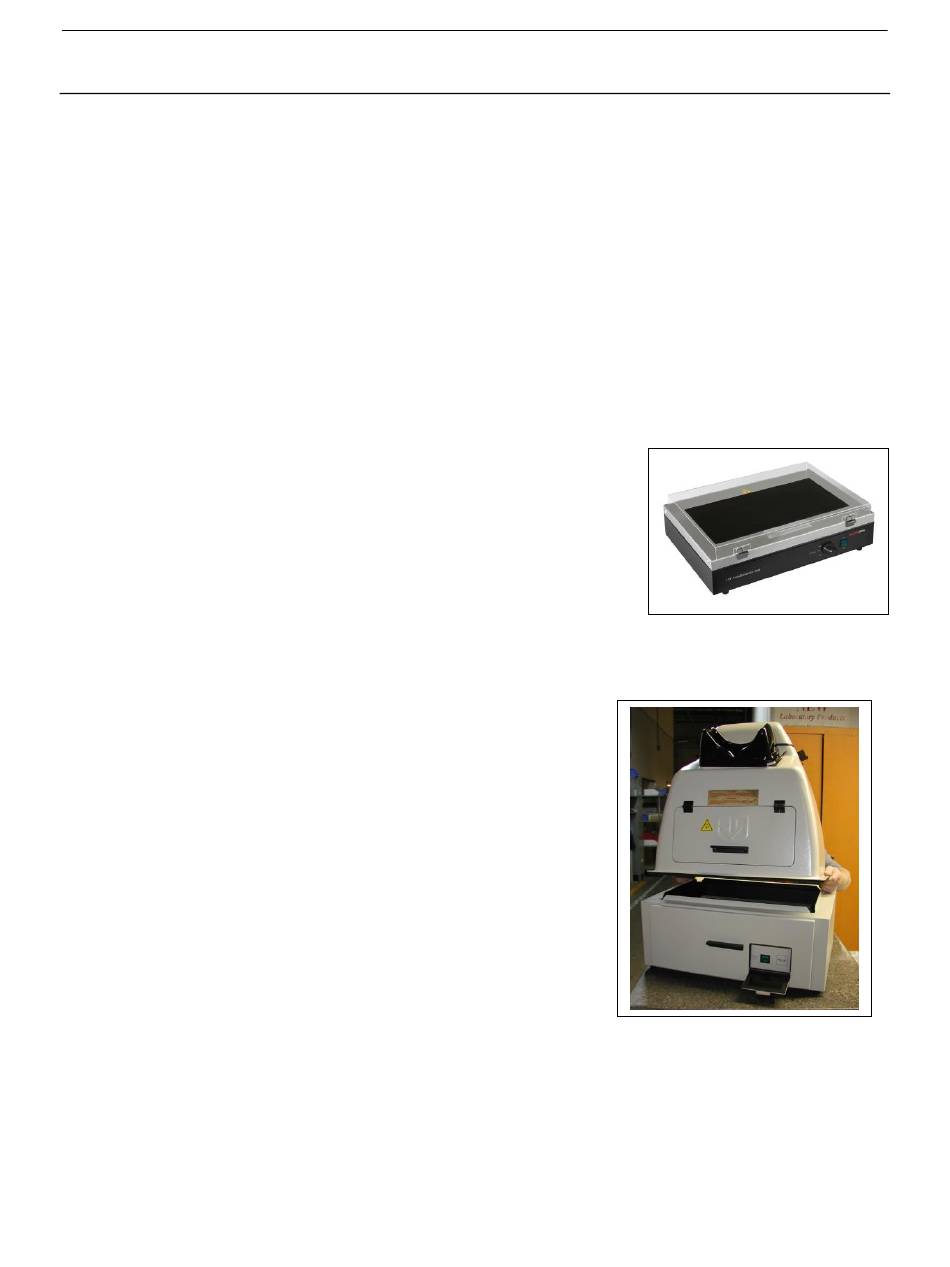

UVP Transilluminator PLUS
(shown with UV blocking cover)
DigiDoc-It Drawer
(Note: different color scheme and style)
