Biometra TAdvanced

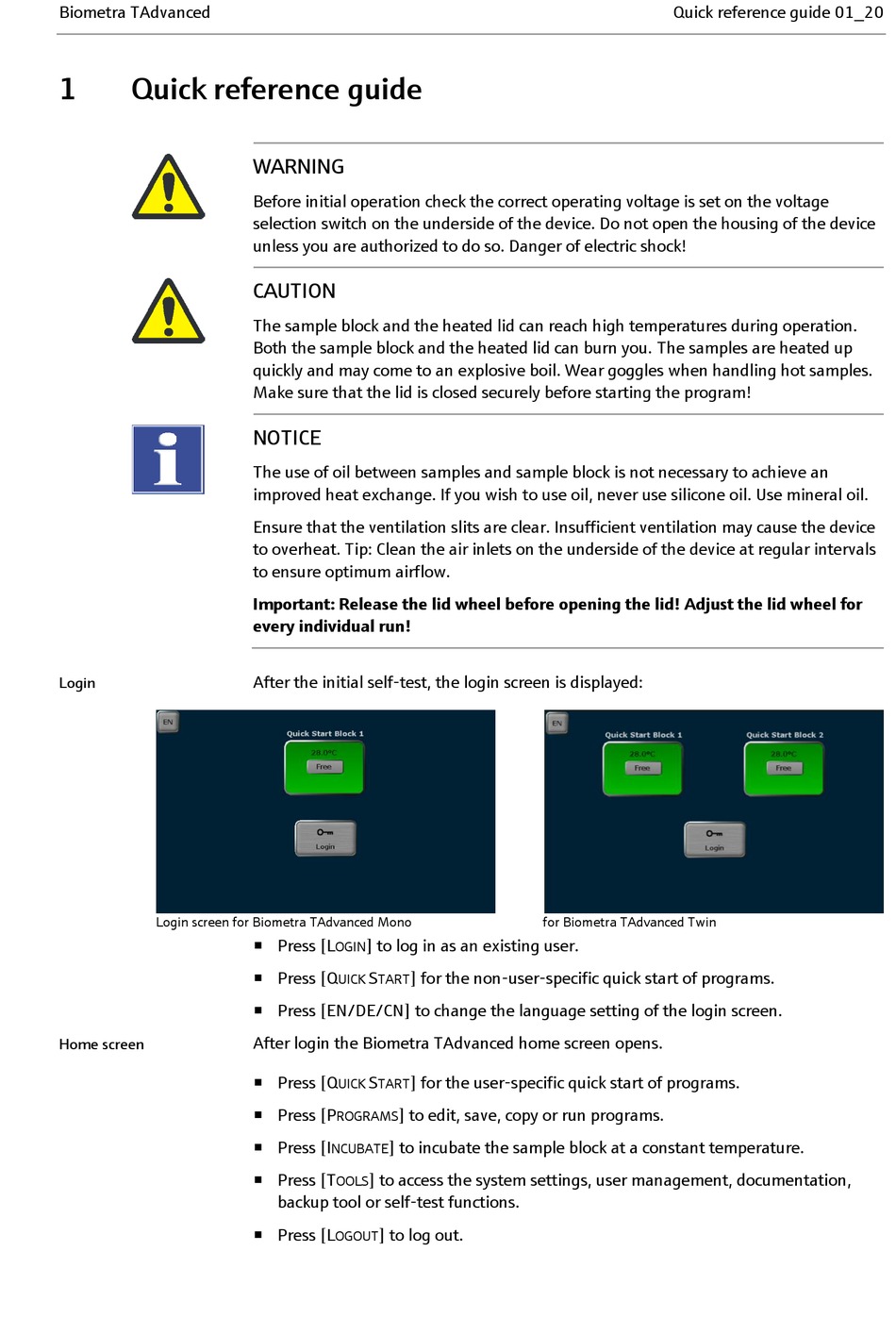

1 Quick reference guide
Login
Login screen for Biometra TAdvanced Mono
Home screen
WARNING
Before initial operation check the correct operating voltage is set on the voltage
selection switch on the underside of the device. Do not open the housing of the device
unless you are authorized to do so. Danger of electric shock!
CAUTION
The sample block and the heated lid can reach high temperatures during operation.
Both the sample block and the heated lid can burn you. The samples are heated up
quickly and may come to an explosive boil. Wear goggles when handling hot samples.
Make sure that the lid is closed securely before starting the program!
NOTICE
The use of oil between samples and sample block is not necessary to achieve an
improved heat exchange. If you wish to use oil, never use silicone oil. Use mineral oil.
Ensure that the ventilation slits are clear. Insufficient ventilation may cause the device
to overheat. Tip: Clean the air inlets on the underside of the device at regular intervals
to ensure optimum airflow.
Important: Release the lid wheel before opening the lid! Adjust the lid wheel for
every individual run!
After the initial self-test, the login screen is displayed:
 Press [L ] to log in as an existing user.
OGIN
 Press [Q S ] for the non-user-specific quick start of programs.
UICK TART
 Press [EN/DE/CN] to change the language setting of the login screen.
After login the Biometra TAdvanced home screen opens.
 Press [Q S ] for the user-specific quick start of programs.
UICK TART
 Press [P ] to edit, save, copy or run programs.
ROGRAMS
 Press [I ] to incubate the sample block at a constant temperature.
NCUBATE
 Press [T ] to access the system settings, user management, documentation,
OOLS
backup tool or self-test functions.
 Press [L ] to log out.
OGOUT
Quick reference guide 01_20
for Biometra TAdvanced Twin
