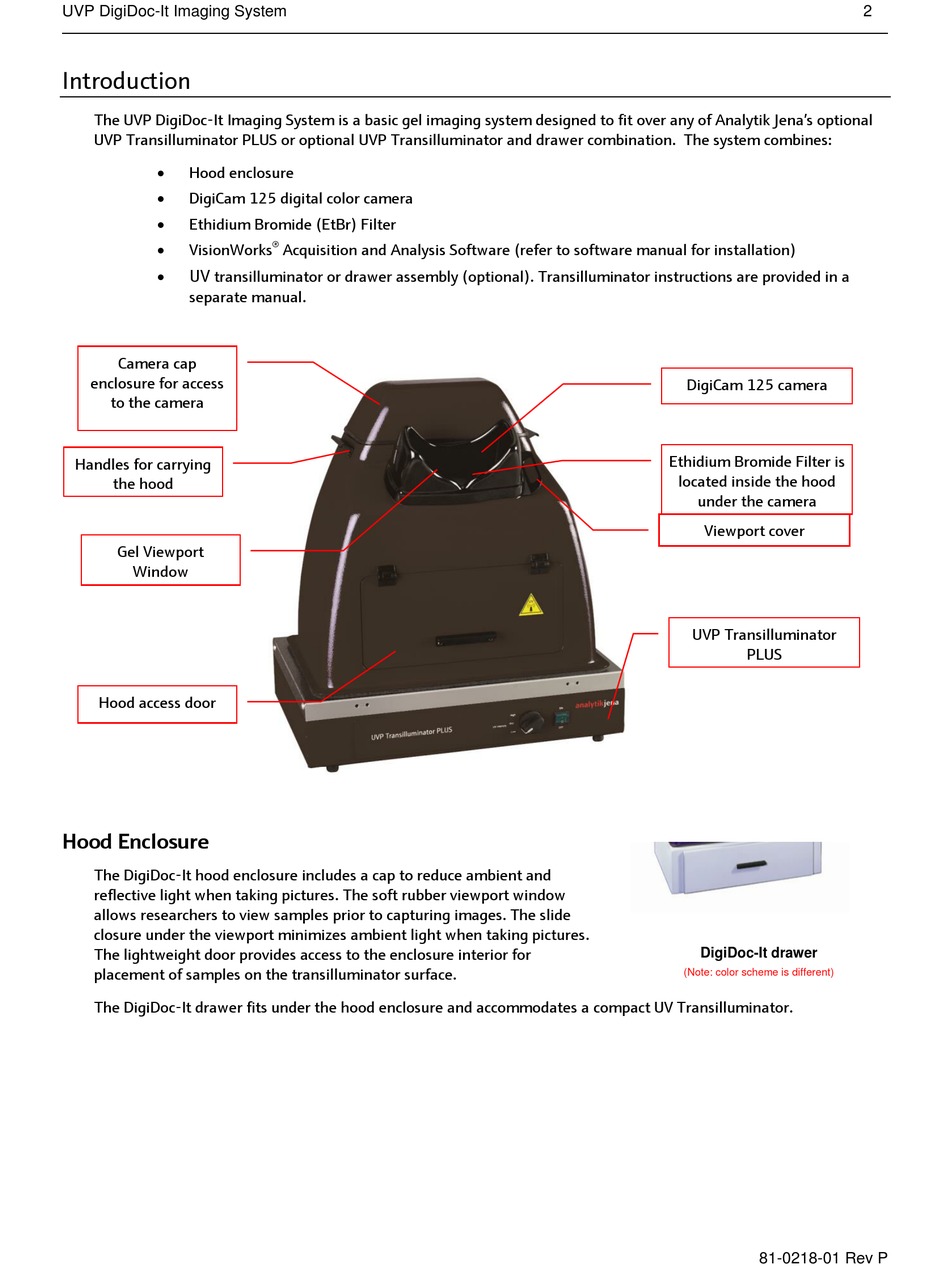

UVP DigiDoc-It Imaging System
Introduction
The UVP DigiDoc-It Imaging System is a basic gel imaging system designed to fit over any of Analytik Jena's optional
UVP Transilluminator PLUS or optional UVP Transilluminator and drawer combination. The system combines:
 Hood enclosure

DigiCam 125 digital color camera

Ethidium Bromide (EtBr) Filter
 VisionWorks
UV
 transilluminator or drawer assembly (optional). Transilluminator instructions are provided in a
separate manual.
Camera cap
enclosure for access
to the camera
Handles for carrying
the hood
Gel Viewport
Window
Hood access door
Hood Enclosure
The DigiDoc-It hood enclosure includes a cap to reduce ambient and
reflective light when taking pictures. The soft rubber viewport window
allows researchers to view samples prior to capturing images. The slide
closure under the viewport minimizes ambient light when taking pictures.
The lightweight door provides access to the enclosure interior for
placement of samples on the transilluminator surface.
The DigiDoc-It drawer fits under the hood enclosure and accommodates a compact UV Transilluminator.
® Acquisition and Analysis Software (refer to software manual for installation)
DigiCam 125 camera
Ethidium Bromide Filter is
located inside the hood
under the camera
Viewport cover
UVP Transilluminator
PLUS
DigiDoc-It drawer
(Note: color scheme is different)
81-0218-01 Rev P
2
