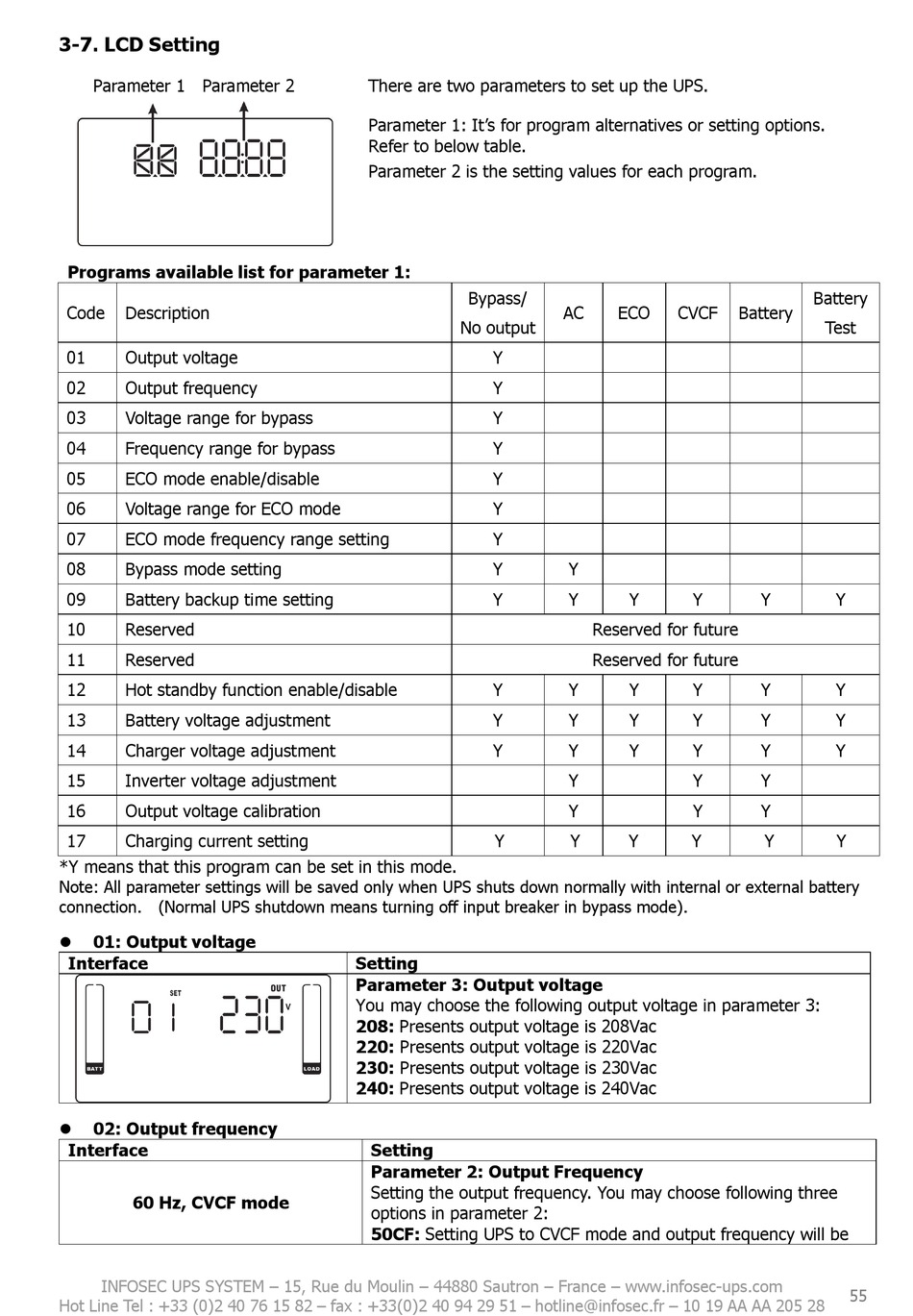

3-7. LCD Setting

Parameter 1 Parameter 2
Programs available list for parameter 1:
Code Description
01 Output voltage
02 Output frequency
03 Voltage range for bypass
04 Frequency range for bypass
05 ECO mode enable/disable
06 Voltage range for ECO mode
07 ECO mode frequency range setting
08 Bypass mode setting
09 Battery backup time setting
10 Reserved
11 Reserved
12 Hot standby function enable/disable
13 Battery voltage adjustment
14 Charger voltage adjustment
15 Inverter voltage adjustment
16 Output voltage calibration
17 Charging current setting
*Y means that this program can be set in this mode.
Note: All parameter settings will be saved only when UPS shuts down normally with internal or external battery
connection. (Normal UPS shutdown means turning off input breaker in bypass mode).
01: Output voltage

Interface
02: Output frequency

Interface
60 Hz, CVCF mode
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 10 19 AA AA 205 28
There are two parameters to set up the UPS.
Parameter 1: It's for program alternatives or setting options.
Refer to below table.
Parameter 2 is the setting values for each program.
Bypass/
No output
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Setting
Parameter 3: Output voltage
You may choose the following output voltage in parameter 3:
208: Presents output voltage is 208Vac
220: Presents output voltage is 220Vac
230: Presents output voltage is 230Vac
240: Presents output voltage is 240Vac
Setting
Parameter 2: Output Frequency
Setting the output frequency. You may choose following three
options in parameter 2:
50CF: Setting UPS to CVCF mode and output frequency will be
AC ECO CVCF
Y
Y Y Y
Reserved for future
Reserved for future
Y Y Y
Y Y Y
Y Y Y
Y Y
Y Y
Y Y Y
Battery
Battery
Test
Y Y
Y Y
Y Y
Y Y
Y
Y
Y Y
