2-3. Single UPS Installation

Installation and wiring must be performed in accordance with the local electric laws/regulations and execute
the following instructions by professional personnel.
1) Make sure the mains wire and breakers in the building are enough for the rated capacity of UPS to
avoid the hazards of electric shock or fire.
NOTE: Do not use the wall receptacle as the input power source for the UPS, as its rated current is less than
the UPS's maximum input current. Otherwise the receptacle may be burned and destroyed.
2) Switch off the mains switch in the building before installation.
3) Turn off all the connected devices before connecting to the UPS.
4) Prepare wires based on the following table:
NOTE 1: The cable for E4 Pro One 5000 and 6000 should be able to withstand over 50A current. It is
recommended to use 6mm²/10AWG or thicker wire for safety and efficiency.
NOTE 2: The cable for E4 Pro One 8000 and 10k should be able to withstand over 63A current. It is
recommended to use 10mm²/8AWG or thicker wire for safety and efficiency.
NOTE 3: Cables are "flexible cable" H07RNF types.
NOTE 4: Use short O terminal ø M5
NOTE5: Wire colors should be selected in accordance with local electricity laws and regulations.

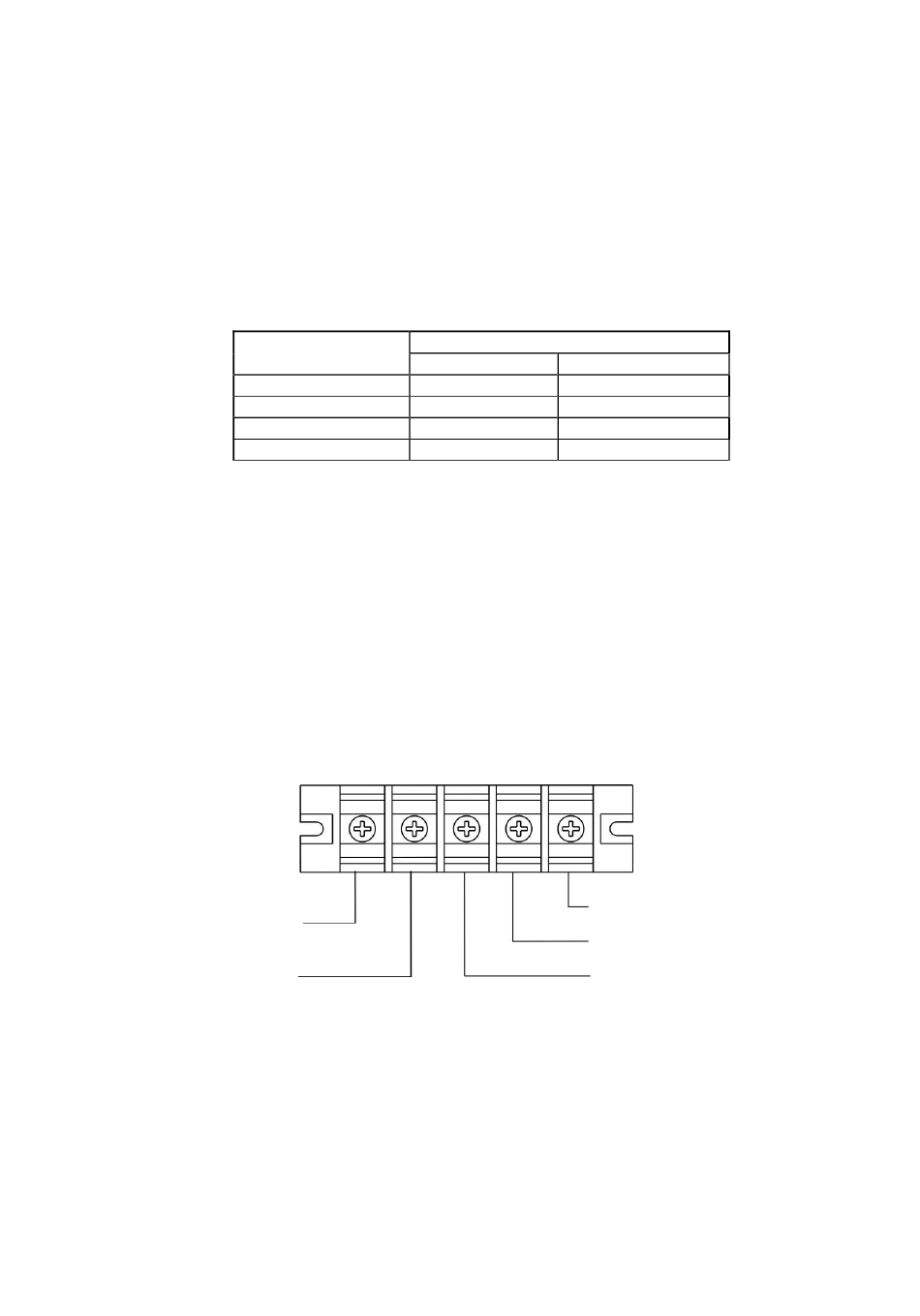

5) Remove the terminal block cover on the rear panel of UPS. Then connect the wires according to the
following terminal block diagrams: (Connect the earth wire first when making wire connection. Disconnect
the earth wire last when making wire disconnection!)
Output Line
Output Neutral
NOTE 1: Make sure that the wires are connected tightly with the terminals.
• Make sure the utility input & output wiring is correct. The wire current spec, color, position, connection
and conductance reliability should be checked carefully. Make sure the L/N site is correct, not reverse and
short-circuited.
6) Put the terminal block cover back to the rear panel of the UPS.
NOTE 2: Please install the output breaker between the output terminal and the load, and the breaker
should be qualified with leakage current protective function if necessary.
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
44
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 10 19 AA AA 205 28
Model
E4 Pro One 5000
E4 Pro One 6000
E4 Pro One 8000
E4 Pro One 10k
Terminal Block wiring diagram
Wiring spec (mm²/AWG)
Input
6mm²/AWG10 6mm²/AWG10
6mm²/AWG10 6mm²/AWG10
10mm²/AWG 8 10mm²/AWG 8
10mm²/AWG 8 10mm²/AWG 8
Input Neutral
Output
Input Line
Ground
