2. Installation and Operation

2-1. Unpacking and Inspection

Unpack the package and check the package contents. The shipping package contains:
UPS module package:
● One UPS
● One user manual
● One USB cable
● One parallel cable (for parallel models, optional)
● One share current cable (for parallel models, optional)
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged
during transportation. Do not turn on the unit and notify the carrier and dealer immediately if there is any
damage or lacking of some parts. Please keep the original package in a safe place for future use.

2-2. Rear Panel View

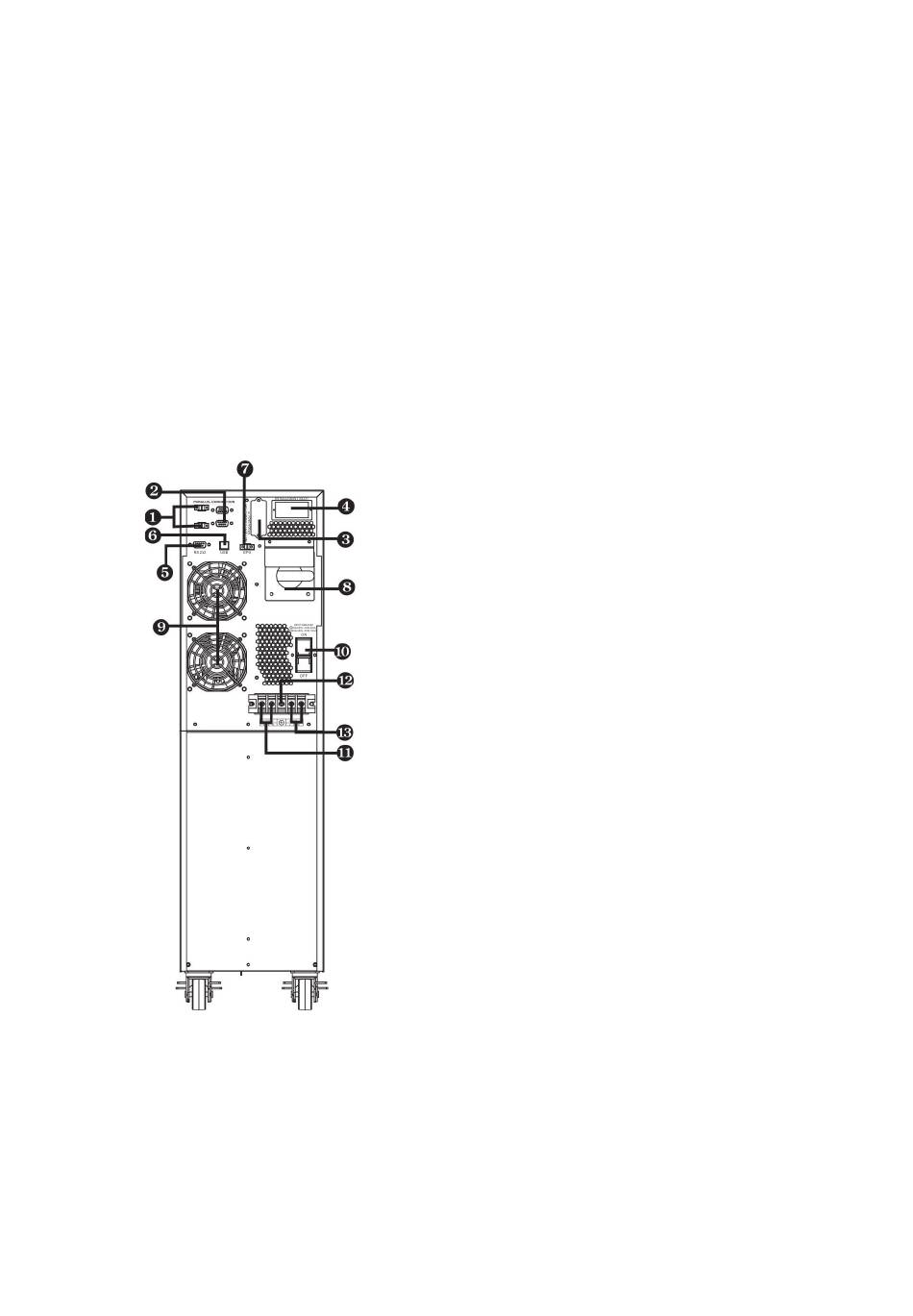

Diagram 1: Rear Panel
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 10 19 AA AA 205 28
1) Share current port (option)
2) Parallel port (option)
3) External battery connector (option)
4) Intelligent slot
5) RS-232 communication port
6) USB communication port
7) Emergency power off function connector (EPO connector)
8) Maintenance bypass switch
9) Cooling fan
10) Input circuit breaker
11) Output terminals
12) Ground
13) Input terminals
