The UPS is equipped with intelligent slot perfect for either SNMP or AS400 card. When installing either SNMP
or AS400 card in the UPS, it will provide advanced communication and monitoring options.
PS: USB port and RS-232 port can't work at the same time.

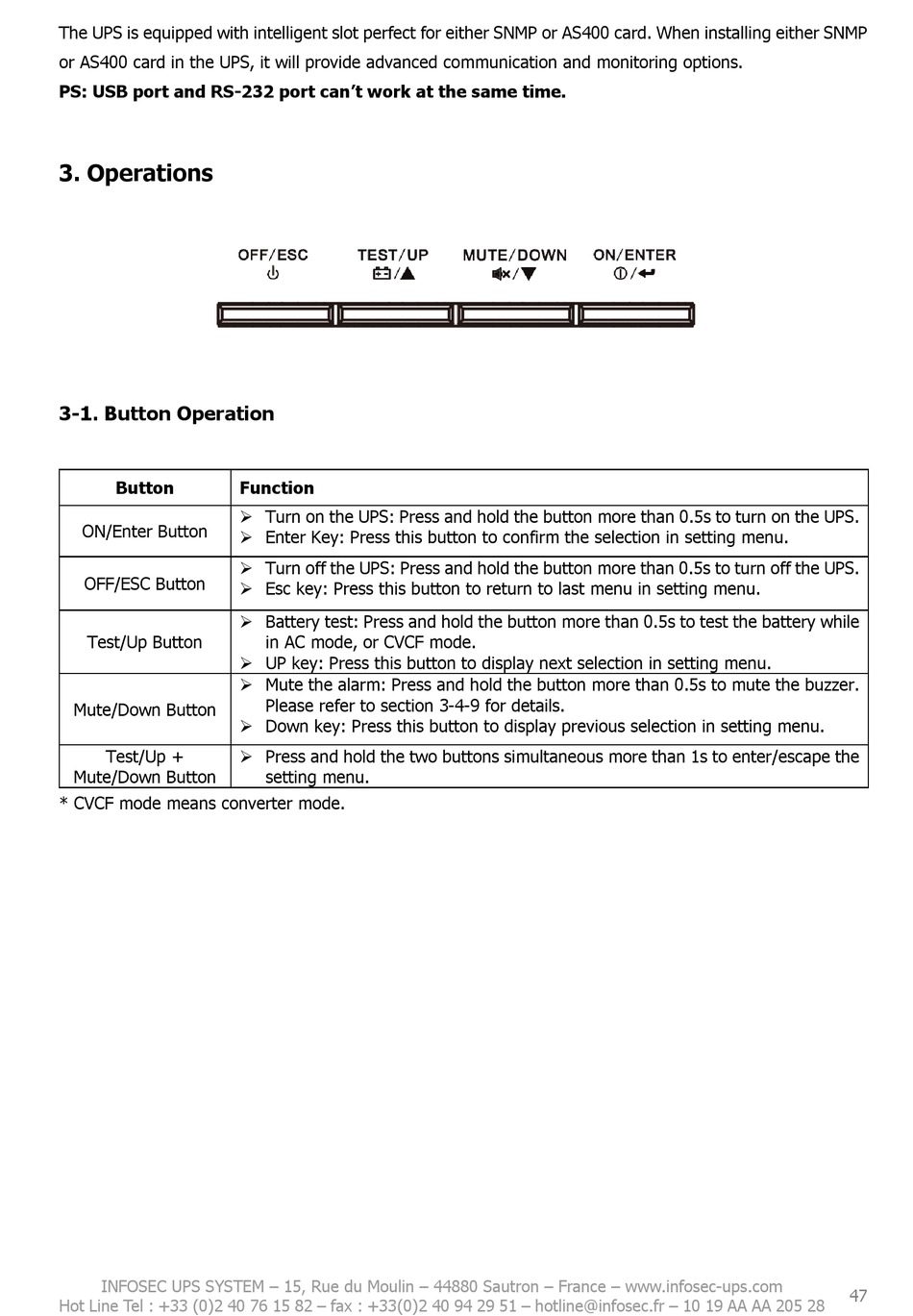

3. Operations

3-1. Button Operation

Button
ON/Enter Button
OFF/ESC Button
Test/Up Button
Mute/Down Button
Test/Up +
Mute/Down Button
* CVCF mode means converter mode.
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 10 19 AA AA 205 28
Function
 Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS.
 Enter Key: Press this button to confirm the selection in setting menu.
 Turn off the UPS: Press and hold the button more than 0.5s to turn off the UPS.
 Esc key: Press this button to return to last menu in setting menu.
 Battery test: Press and hold the button more than 0.5s to test the battery while
in AC mode, or CVCF mode.
 UP key: Press this button to display next selection in setting menu.
 Mute the alarm: Press and hold the button more than 0.5s to mute the buzzer.
Please refer to section 3-4-9 for details.
 Down key: Press this button to display previous selection in setting menu.
 Press and hold the two buttons simultaneous more than 1s to enter/escape the
setting menu.
