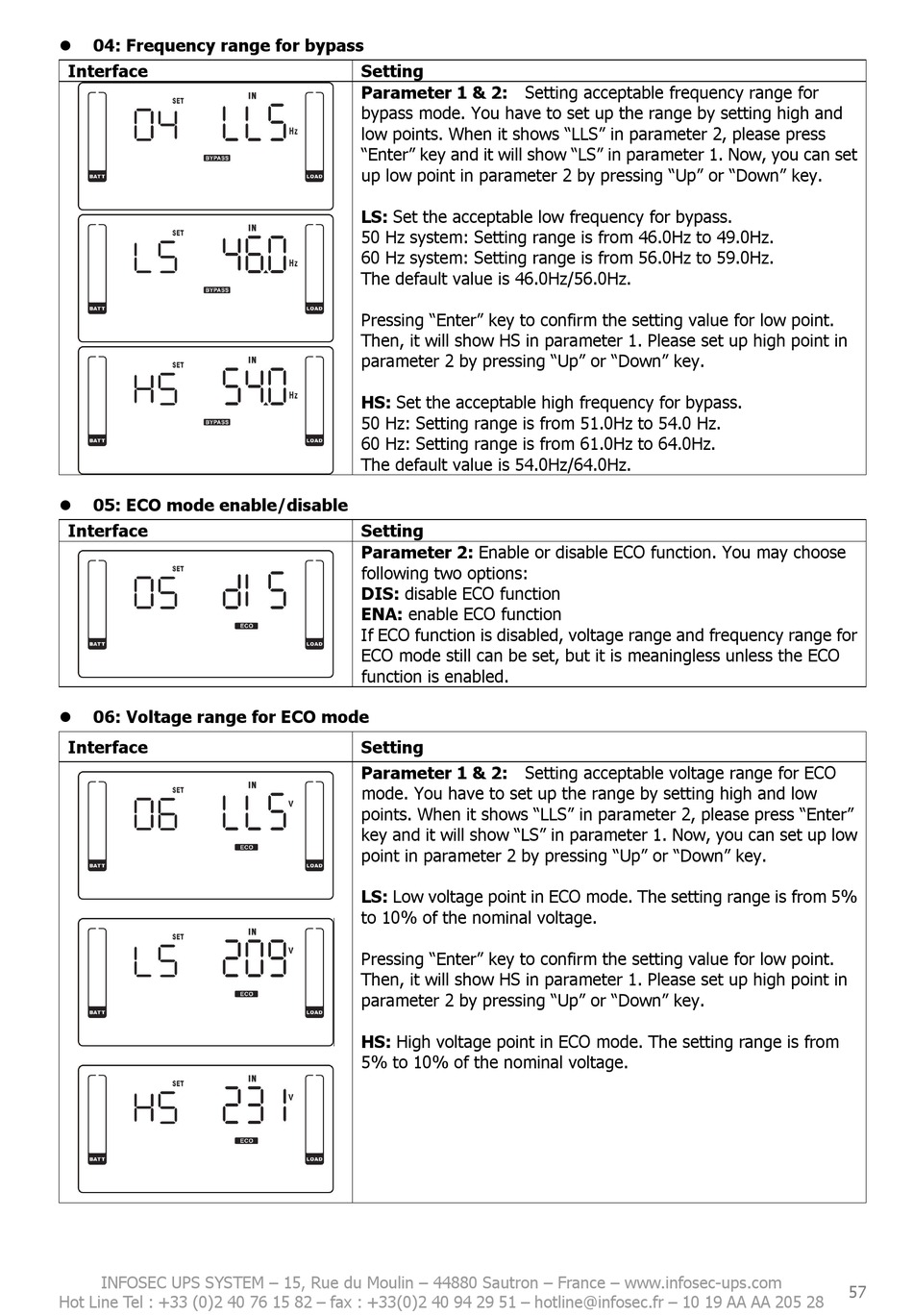

INFOSEC UPS SYSTEM E4 Pro One Series User Manual page 57

04: Frequency range for bypass

Interface
05: ECO mode enable/disable

Interface
06: Voltage range for ECO mode

Interface
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 10 19 AA AA 205 28
Setting
Parameter 1 & 2: Setting acceptable frequency range for
bypass mode. You have to set up the range by setting high and
low points. When it shows "LLS" in parameter 2, please press
"Enter" key and it will show "LS" in parameter 1. Now, you can set
up low point in parameter 2 by pressing "Up" or "Down" key.
LS: Set the acceptable low frequency for bypass.
50 Hz system: Setting range is from 46.0Hz to 49.0Hz.
60 Hz system: Setting range is from 56.0Hz to 59.0Hz.
The default value is 46.0Hz/56.0Hz.
Pressing "Enter" key to confirm the setting value for low point.
Then, it will show HS in parameter 1. Please set up high point in
parameter 2 by pressing "Up" or "Down" key.
HS: Set the acceptable high frequency for bypass.
50 Hz: Setting range is from 51.0Hz to 54.0 Hz.
60 Hz: Setting range is from 61.0Hz to 64.0Hz.
The default value is 54.0Hz/64.0Hz.
Setting
Parameter 2: Enable or disable ECO function. You may choose
following two options:
DIS: disable ECO function
ENA: enable ECO function
If ECO function is disabled, voltage range and frequency range for
ECO mode still can be set, but it is meaningless unless the ECO
function is enabled.
Setting
Parameter 1 & 2: Setting acceptable voltage range for ECO
mode. You have to set up the range by setting high and low
points. When it shows "LLS" in parameter 2, please press "Enter"
key and it will show "LS" in parameter 1. Now, you can set up low
point in parameter 2 by pressing "Up" or "Down" key.
LS: Low voltage point in ECO mode. The setting range is from 5%
to 10% of the nominal voltage.
Pressing "Enter" key to confirm the setting value for low point.
Then, it will show HS in parameter 1. Please set up high point in
parameter 2 by pressing "Up" or "Down" key.
HS: High voltage point in ECO mode. The setting range is from
5% to 10% of the nominal voltage.
