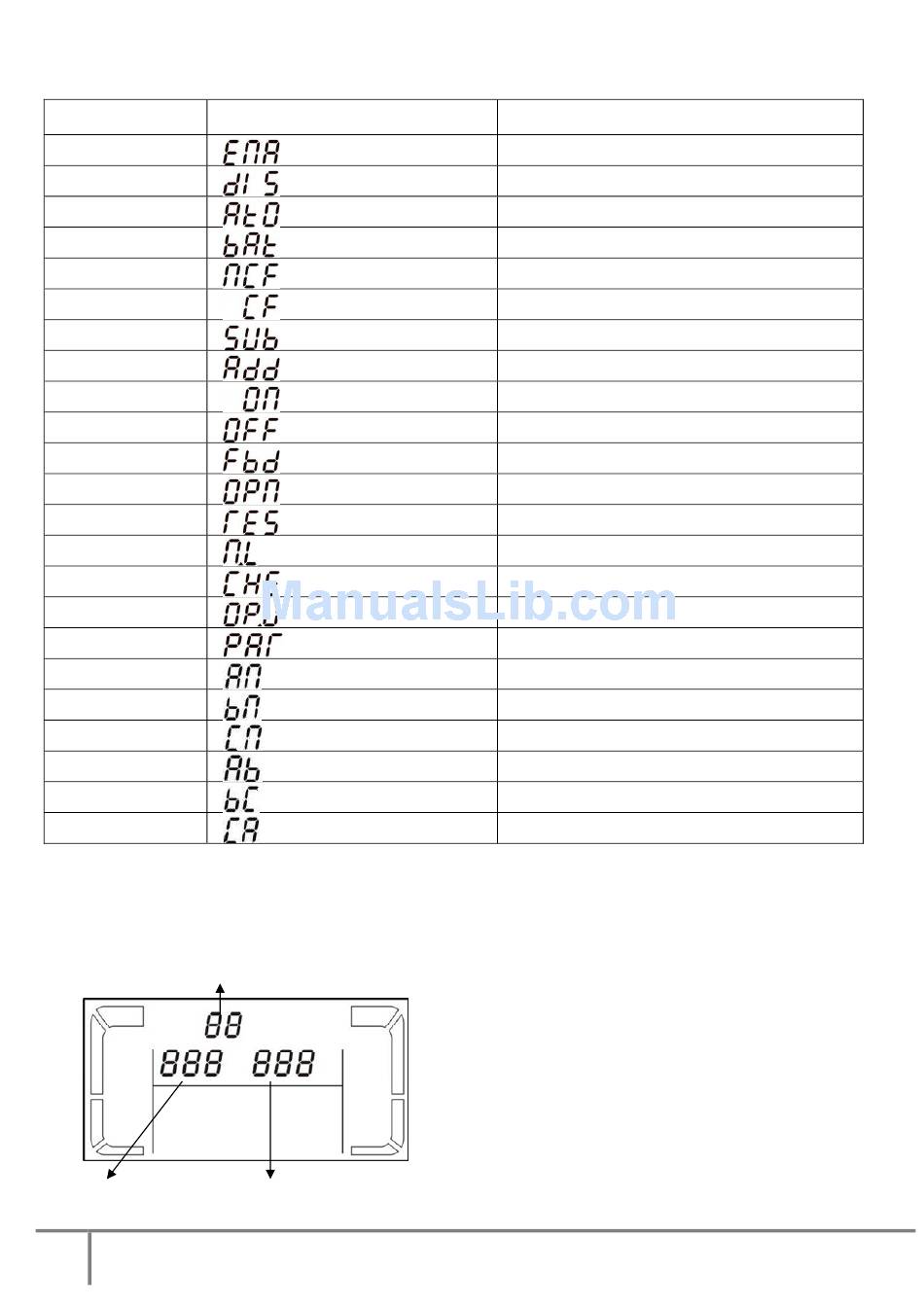

3-6. Abbreviation Meaning in LCD Display

Abbreviation Display content
ENA
DIS
ATO
BAT
NCF
CF
SUB
ADD
ON
OFF
FBD
OPN
RES
N.L
CHE
OP.V
PAR
AN
BN
CN
AB
BC
CA

3-7. LCD Setting

There are three parameters to set up the UPS. Refer to following diagram.
Parameter 1
Parameter 2
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
67
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr –12 13 AA 59 203 07
Parameter 3
Meaning
Enable
Disable
Auto
Battery
Normal mode (not CVCF mode)
CVCF mode
Subtract
Add
On
Off
Not allowed
Allow
Reserved
Neutral line loss
Check
Output voltage
Parallel, 001 means the first UPS
The first phase
The second phase
The third phase
The first line
The second line
The third line
Parameter 1 is for program alternatives.
There are 17 programs to set up. Refer to the
table below.
Parameter 2 and parameter 3 are the setting
options or values for each program.
Note: Please select "Up" or "Down" button to
change the programs or parameters.
