CyberData 011410 Installation Quick Reference page 2

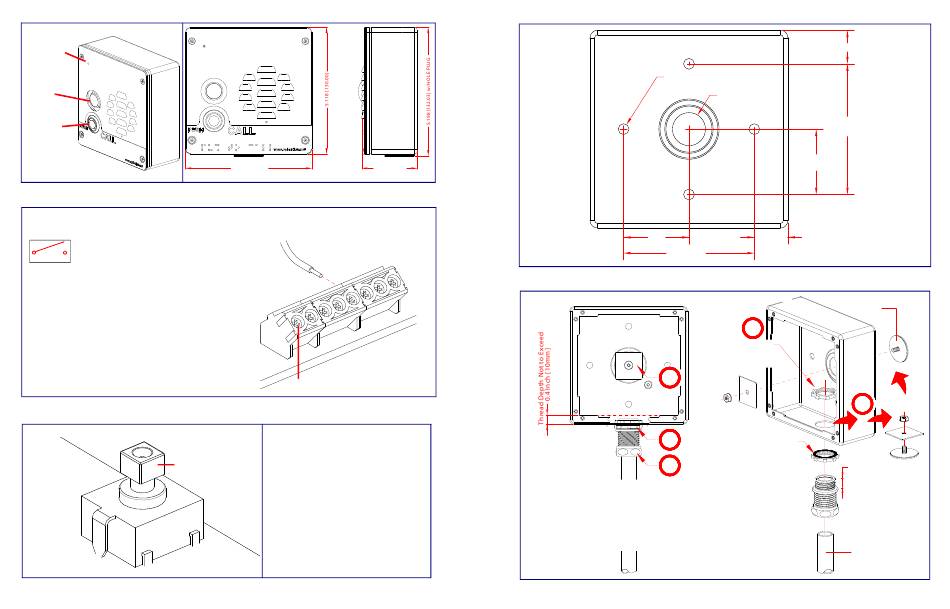

Features Dimensions (Front and Side View)
Microphone
Hole
Camera
Call Button
DIMENSIONS ARE IN INCHES [MILLIMETER]
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
RTFM Button
RTFM button (SW1)
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
5.118 [130.00] 2.252 [57.21]
Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws
Wire (IN)
Tin Leads
Approx. 1/4" or
6mm
8
Terminal Block
can accept 16 AWG wire
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
default settings.
To announce the device's current IP address:
• Press and release the RTFM button within a five
second window.
Note The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
To restore the device to factory default settings:
• Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
931332C Quick Reference
Dimensions (Rear View and Mounting Holes)
1
Side Conduit Mounting Restrictions
Installation Steps:
1) Remove the hole plug assembly from the side of Backbox
then use it to cover the rear conduit hole.
2) Remove the locknut from the EMT compression connector, and
install the provided sealing locknut if the compression connector's
thread depth exceeds 0.4 inch or 10 millimeters.
3) Insert the compression connector with the sealing locknut through
the side conduit hole, and then fasten the locknut inside the backbox.
Make sure the threads do not protrude out more than 0.4 inch or 10 millimeters.
4) Insert the EMT conduit into the EMT compression connector and then tighten.
Quick Reference
Dimensions are in Inches [Millimeter]
ø0.280 [ø7.11]
(4 Places)
ø0.854 [ø21.69]
1.690
[42.93]
1.690
0.869 [22.07]
[42.93]
3.380 [85.85]
Backbox
2
Locknut
(Part of the
Compression
Connector)
1
Rubber Seal
3
on This Side
Sealing Locknut
(Optional, 1 Provided)
4
*More installation and mounting information
is available in the Operations Guide.
931332C © 2019, CyberData Corporation, ALL RIGHTS RESERVED
0.869 [22.07]
3.380
[85.85]
Hole Plug
Assembly
1
Thread Depth
1/2" EMT
Compression
Connector
1/2" EMT
Conduit
