turck IM12-FI01-1SF-1R Safety Manual page 13

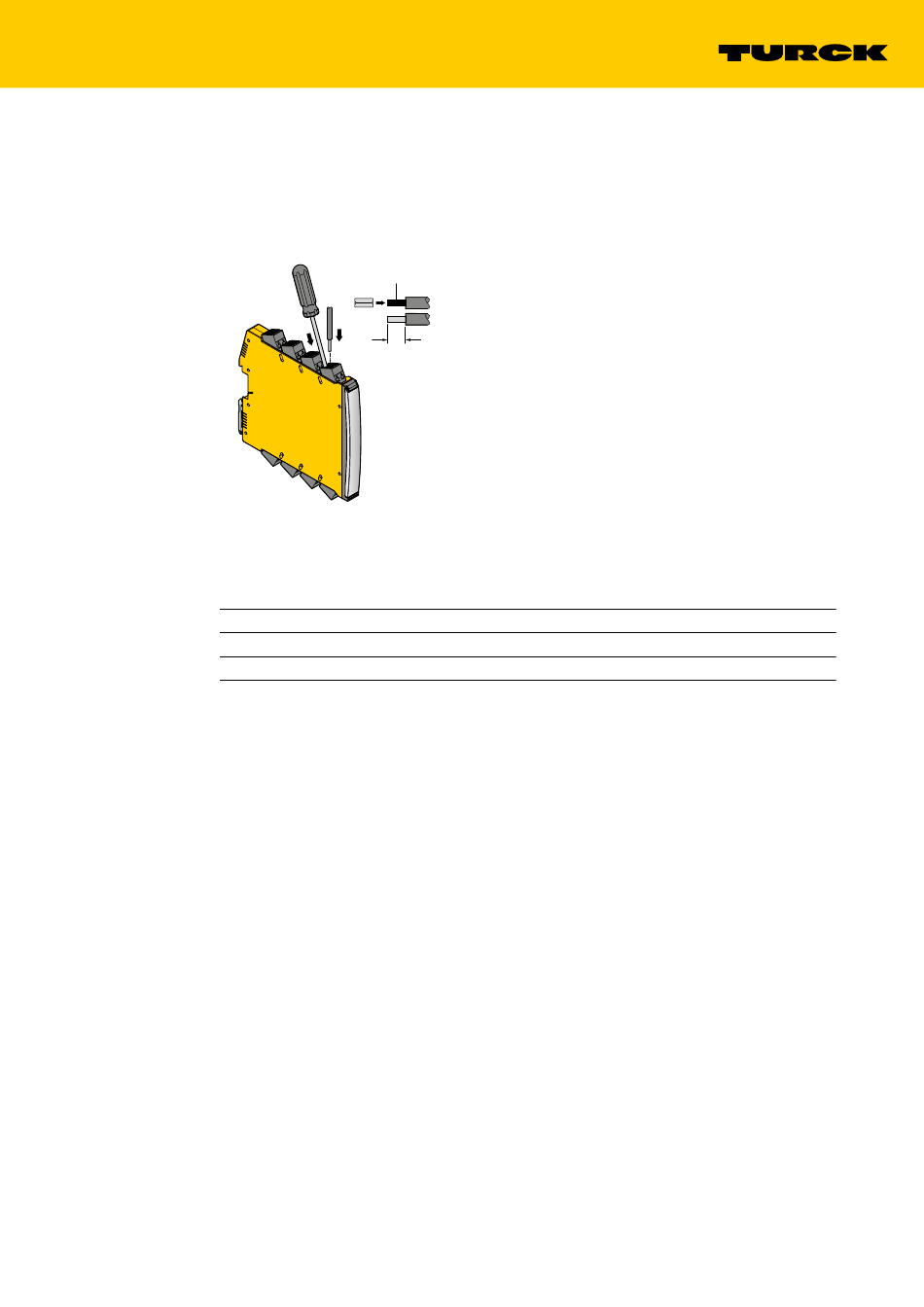

Connection with spring-type terminals
Push the opening lever with a suitable screwdriver.
➤
Insert the stripped cable ends (7 mm) in the guides of the spring-type terminals.
➤
Pull the screwdriver to fix the cable ends.
➤
Fig. 3:
Make sure that only suitable equipment, e.g. sensors, are connected to the device (see
➤
pendix: Connection and Wiring
Make sure that a suitable power supply with the following characteristic is used:
➤
Minimum voltage
Maximum voltage
Minimum Power
V01.00 | 2020/04
0.2...2.5 mm
2
(24...13 AWG)
2
1
7 mm
Connection with spring-type terminals
Diagrams").
„Ap-
10 VDC
30 VDC
4 W
13
