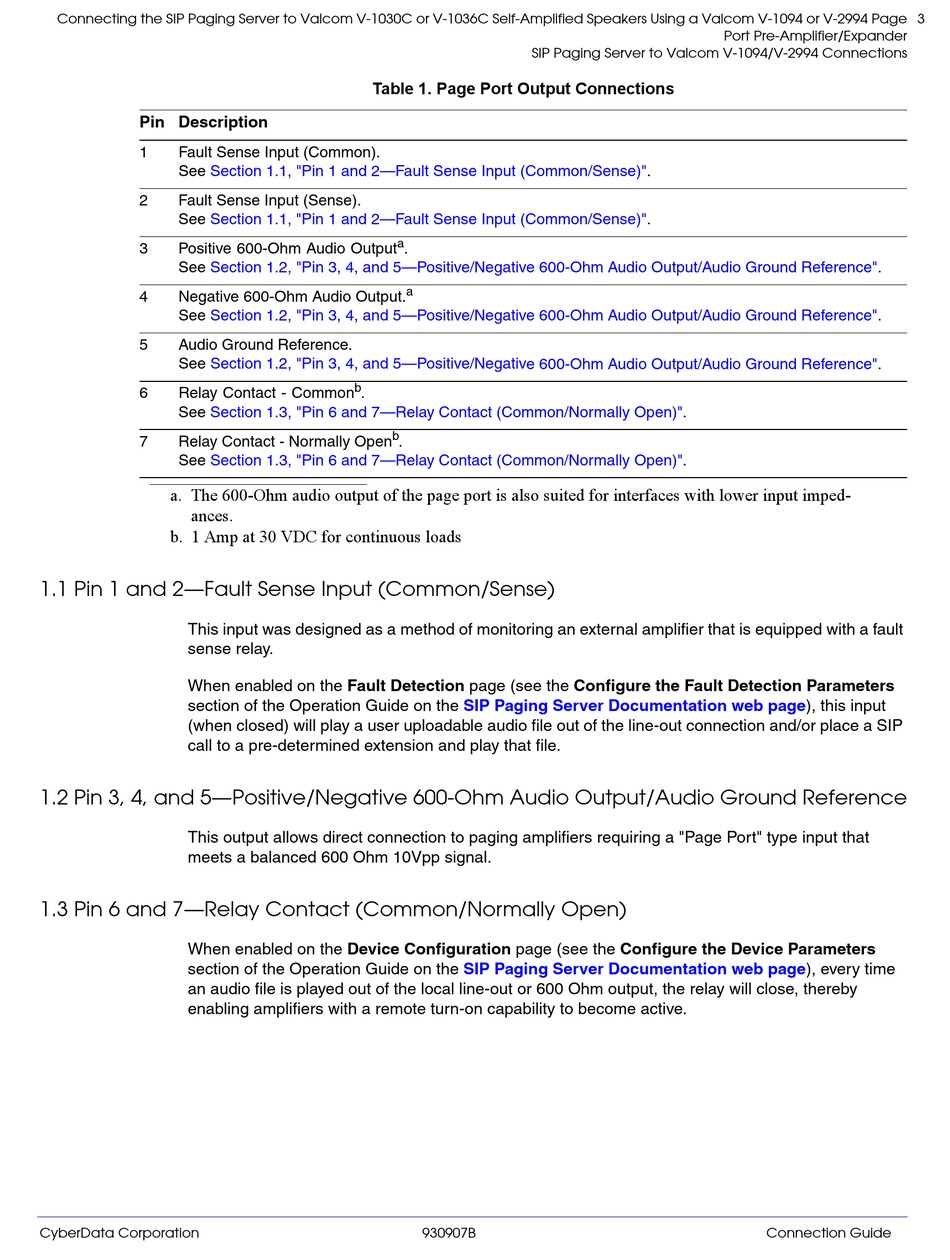

Connecting the SIP Paging Server to Valcom V-1030C or V-1036C Self-Amplified Speakers Using a Valcom V-1094 or V-2994 Page
Pin Description
Fault Sense Input (Common). 
1
See Section 1.1, "Pin 1 and 2—Fault Sense Input
Fault Sense Input (Sense). 
2
See Section 1.1, "Pin 1 and 2—Fault Sense Input
3 Positive 600-Ohm Audio Output
See Section 1.2, "Pin 3, 4, and 5—Positive/Negative 600-Ohm Audio Output/Audio Ground
4 Negative 600-Ohm Audio Output.
See Section 1.2, "Pin 3, 4, and 5—Positive/Negative 600-Ohm Audio Output/Audio Ground
Audio Ground Reference. 
5
See Section 1.2, "Pin 3, 4, and 5—Positive/Negative 600-Ohm Audio Output/Audio Ground
6 Relay Contact - Common
See Section 1.3, "Pin 6 and 7—Relay Contact (Common/Normally
7 Relay Contact - Normally Open
See Section 1.3, "Pin 6 and 7—Relay Contact (Common/Normally
a. The 600-Ohm audio output of the page port is also suited for interfaces with lower input imped-
ances.
b. 1 Amp at 30 VDC for continuous loads
1.1 Pin 1 and 2—Fault Sense Input (Common/Sense)
This input was designed as a method of monitoring an external amplifier that is equipped with a fault
sense relay.
When enabled on the Fault Detection page (see the Configure the Fault Detection Parameters
section of the Operation Guide on the
(when closed) will play a user uploadable audio file out of the line-out connection and/or place a SIP
call to a pre-determined extension and play that file.
1.2 Pin 3, 4, and 5—Positive/Negative 600-Ohm Audio Output/Audio Ground Reference
This output allows direct connection to paging amplifiers requiring a "Page Port" type input that
meets a balanced 600 Ohm 10Vpp signal.
1.3 Pin 6 and 7—Relay Contact (Common/Normally Open)
When enabled on the Device Configuration page (see the Configure the Device Parameters
section of the Operation Guide on the
an audio file is played out of the local line-out or 600 Ohm output, the relay will close, thereby
enabling amplifiers with a remote turn-on capability to become active.
CyberData Corporation
SIP Paging Server to Valcom V-1094/V-2994 Connections

Table 1. Page Port Output Connections

(Common/Sense)".
(Common/Sense)".
. 
a
a 
. 
b
b . 
SIP Paging Server Documentation web
SIP Paging Server Documentation web
930907B
Port Pre-Amplifier/Expander
Reference".
Reference".
Reference".
Open)".
Open)".
page), this input
page), every time
