Connecting the SIP Paging Server to Valcom V-1030C or V-1036C Self-Amplified
Speakers Using a Valcom V-1094 or V-2994 Page Port Pre-Amplifier/Expander

1.0 SIP Paging Server to Valcom V-1094/V-2994 Connections

It is necessary to use a Valcom V-1094 or V-2994 Page Port Preamp/Expander in series between a
SIP Paging Server and V-1030C/1036C horns. The SIP Paging Server connects as a 600 Ohm Page
Port to the Pre-Amp/Expander. The Valcom V-1094 or V-2994 Page Port Preamp/Expander isolates
the SIP Paging Adapter from the speaker lines.
GENERAL ALERT
See
Line In
Pin 1 Pin2 Pin 3 Pin 4 Pin 5
CyberData Corporation
Caution
Equipment Hazard : Please be advised that directly connecting the SIP Paging
Server Valcom V-1030C/1036C self-amplified horns without the use of a Page Port
Pre-Amplifier/Expander results in severe audio degradation and could cause
irreparable damage to the CyberData device. This would be considered installation
damage and void the warranty. Contact
before installation with questions or concerns about connecting to Valcom V-
1030C/1036C or other self-amplified horns.
Figure 1 and Table 1 for connecting the SIP Paging Server to a Valcom V-1094/V-2994.

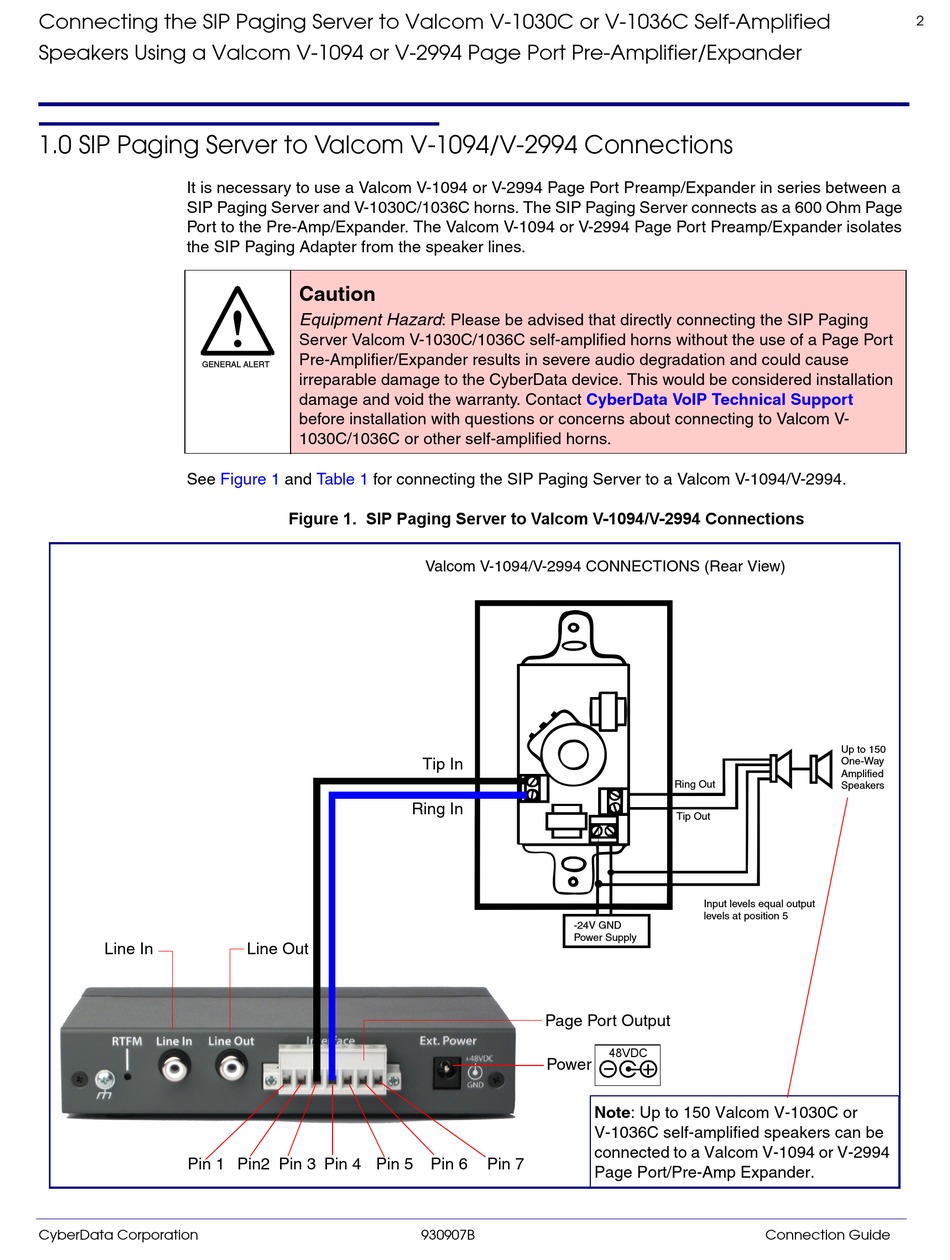

Figure 1. SIP Paging Server to Valcom V-1094/V-2994 Connections
Line Out
CyberData VoIP Technical Support
Valcom V-1094/V-2994 CONNECTIONS (Rear View)
Tip In
Ring In
-24V GND
Power Supply
Page Port Output
Power
Pin 6 Pin 7
930907B
Ring Out
Tip Out
Input levels equal output
levels at position 5
48VDC
Note: Up to 150 Valcom V-1030C or 
V-1036C self-amplified speakers can be
connected to a Valcom V-1094 or V-2994
Page Port/Pre-Amp Expander.
Connection Guide
2
Up to 150
One-Way
Amplified
Speakers
