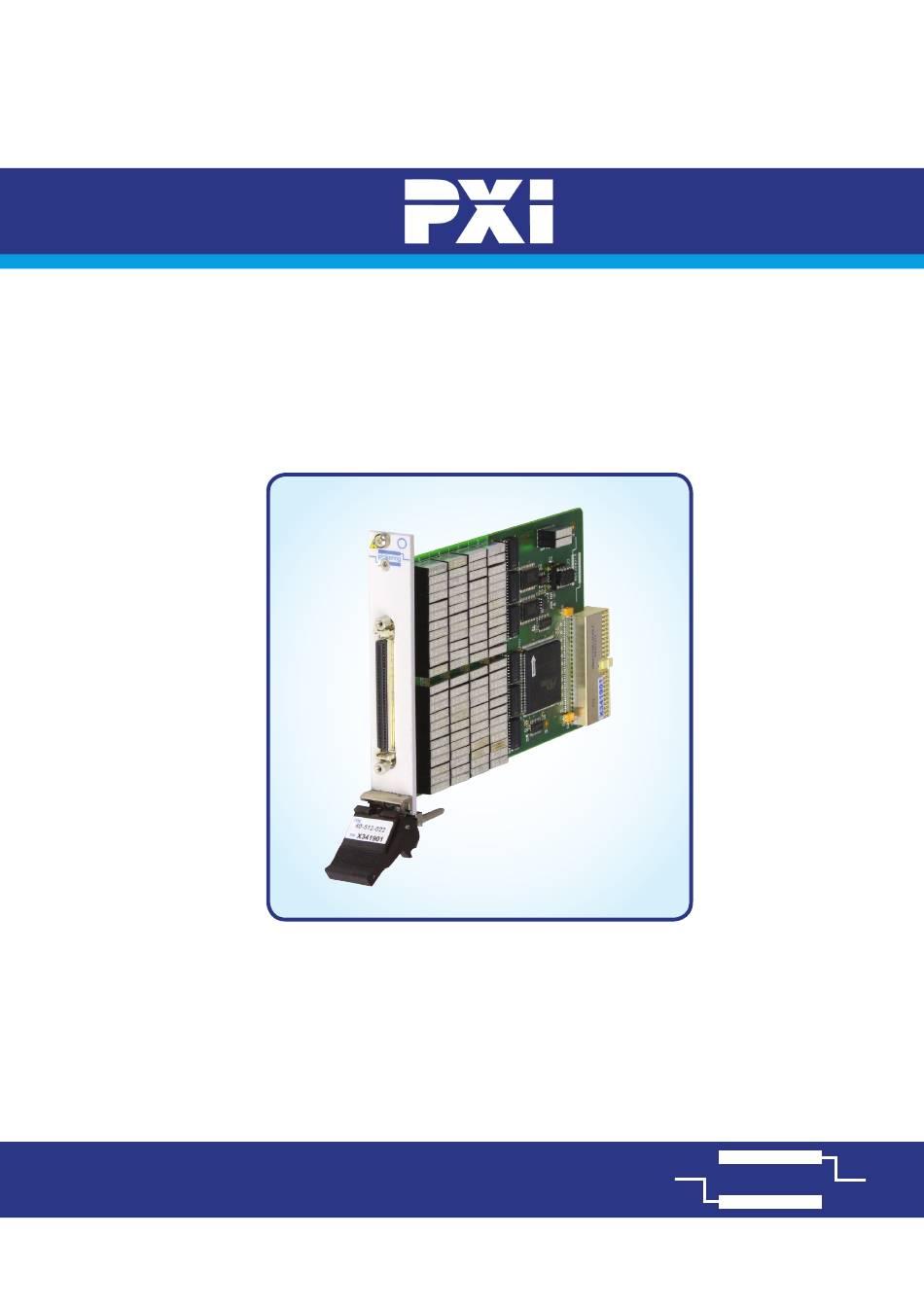

  • Page 1 User Manual Matrix Module (Model No. 40-510/511/512/513) Issue 8.2 March 2017 pickeringtest.com pickering MATRIX MODULE 40-510/511/512/513 Page (1)
  • Page 2 © COPYRIGHT (2017) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    PRODUCT SAFETY SAFETY SYMBOLS The following safety symbols may be used on the product and throughout the product documentation. MEANING / DESCRIPTION SYMBOL PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

  • Page 5: Table Of Contents

    Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Cards....4.1 Module Architecture 40-510 ..........4.3 Module Architecture 40-511 ..........4.4 Module Architecture 40-512 ..........4.5 Module Architecture 40-513 ..........4.6 Programming The Module ............4.7 Section 5 Connector Information ..............5.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK MATRIX MODULE 40-510/511/512/513 Page (VI)

  • Page 7: Warnings And Cautions

    Unused slots in the PXI/LXI chassis are populated with blanking plates to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering in a variety of slot widths. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals.
  • Page 8 THIS PAGE INTENTIONALLY BLANK MATRIX MODULE 40-510/511/512/513 Page (VIII)

  • Page 9: Technical Specification

    Spare Reed Relays are built onto the circuit board to facilitate Y103 easy maintenance with minimum downtime. Y104 All reed relays are manufactured by our sister company Pickering Electronics, www.pickeringrelay.com. Supported by eBIRST This product is supported by eBIRST which tests the switching system using an external tool.
  • Page 10 91-100-011 260g (40-513-022) 40-513-022 91-100-008 3D models for all versions in a variety of popular file formats For further assistance, please contact your local Pickering are available on request. sales office. Connectors Mating Connectors & Cabling PXI bus via 32-bit P1/J1 backplane connector.
  • Page 11 All modules are fully CE compliant and meet applicable EU Systems such as LabVIEW RT. For other RTOS support directives: Low-voltage safety EN61010-1:2001, contact Pickering. These drivers may be used with a variety of EMC Immunity EN61000-6-1:2001, Emissions EN55011:1998. programming environments and applications including: —...
  • Page 12 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK MATRIX MODULE 40-510/511/512/513 Page 1.4...

  • Page 13: Functional Description

    SECTION 2 - TECHNICAL DESCRIPTION pickering SECTION 2 - TECHNICAL DESCRIPTION FUNCTIONAL DESCRIPTION A functional block diagram is provided in Figure 2.1. The Matrix Module is powered by a +5V input via Compact PCI connector J1. The interface to the user test equipment is via the front panel mounted 68-pin micro-D connector, J2.
  • Page 14 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK MATRIX MODULE 40-510/511/512/513 Page 2.2...

  • Page 15: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 16: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 17: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 18 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK MATRIX MODULE 40-510/511/512/513 Page 3.4...

  • Page 19: Programming Guide

    IVI Driver for Windows - pi40iv The pi40iv IVI (Interchangeable Virtual Instrument) driver supports all Pickering Interfaces PXI switch cards that are consistent with the Iviswtch class model - as are the great majority of cards in the System 40/45/50 ranges. It integrates well with LabWindows/CVI and LabVIEW, and is fully compatible with Switch Executive.
  • Page 20 Pickering LXI products include an SSH interface which allows remote command line access to control cards, or, using a suitable package, programmatic control. The user is advised to visit the Pickering web site for further details of all the above drivers, where documentation, example programs, and further help with driver choice are available.

  • Page 21: Module Architecture 40-510

    SECTION 4 - PROGRAMMING GUIDE pickering MODULE ARCHITECTURE 40-510 The 40-510-021 is an array of 48 single pole relays, and the 40-510-022 an array of 48 double pole relays. In the default state all relays are open circuit. Energising a particular relay creates a signal path between its C and A terminals.

  • Page 22: Module Architecture 40-511

    SECTION 4 - PROGRAMMING GUIDE pickering MODULE ARCHITECTURE 40-511 The 40-511-021 is an array of 96 single pole relays, and the 40-511-022 an array of 96 double pole relays. In the default state all relays are open circuit. Energising a particular relay creates a signal path between its C and A terminals.

  • Page 23: Module Architecture 40-512

    SECTION 4 - PROGRAMMING GUIDE pickering MODULE ARCHITECTURE 40-512 The 40-512-021 is an array of 96 single pole relays, and the 40-512-022 an array of 96 double pole relays. In the default state all relays are open circuit. Energising a particular relay creates a signal path between its C and A terminals.

  • Page 24: Module Architecture 40-513

    SECTION 4 - PROGRAMMING GUIDE pickering MODULE ARCHITECTURE 40-513 The 40-513-021 is an array of 96 single pole relays, and the 40-513-022 an array of 96 double pole relays. In the default state all relays are open circuit. Energising a particular relay creates a signal path between its C and A terminals.

  • Page 25: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are examples of using the drivers with the 40-510 series of modules. These show sub-unit 1 being selected, which corresponds to the whole matrix of a single matrix module, or bank 1 of a dual matrix module. If bank 2 of a dual matrix were to be selected, sub-unit 2 would be specified.
  • Page 26 SECTION 4 - PROGRAMMING GUIDE pickering Using pi40iv The IVI driver has no special labelling for this card and treats the array of switches as a simple array, labelling the channels using the normal X,Y labelling tags. Note: the following example is for bank 1 of a dual matrix. Bank 1 is identified as A, bank 2 would be identified as B, and a single matrix would have no letter identifier.
  • Page 27 SECTION 5 - CONNECTOR INFORMATION pickering SECTION 5 - CONNECTOR INFORMATION X1.1 X1.2 X2.1 X2.2 X3.1 X3.2 X4.1 X4.2 X5.1 X5.2 X6.1 X6.2 X7.1 X7.2 X8.1 X8.2 X9.1 X9.2 X10.1 X10.2 X11.1 X11.2 X12.1 X12.2 Y1.1 Y1.2 Y2.1 Y2.2 Y3.1 Y3.2...
  • Page 28 SECTION 5 - CONNECTOR INFORMATION pickering X101.1 X101.2 X101 X101 X102.1 X102.2 X102 X102 X103.1 X103 X103 X103.2 X104.1 X104.2 X104 X104 X105.1 X105.2 X105 X105 X106.1 X106.2 X106 X106 X107.1 X107.2 X107 X107 X108.1 X108.2 X108 X108 X109.1 X109.2...
  • Page 29 SECTION 5 - CONNECTOR INFORMATION pickering X1.1 X1.2 X2.1 X2.2 X3.1 X3.2 X4.1 X4.2 X5.1 X5.2 X6.1 X6.2 X7.1 X7.2 X8.1 X8.2 X9.1 X9.2 X10.1 X10.2 X11.1 X11.2 X12.1 X12.2 Y1.1 Y1.2 Y2.1 Y2.2 Y3.1 Y3.2 Y4.1 Y4.2 Y5.1 Y5.2 Y6.1...
  • Page 30 SECTION 5 - CONNECTOR INFORMATION pickering X1.1 X1.2 X2.1 X2.2 X3.1 X3.2 X4.1 X4.2 X5.1 X5.2 X6.1 X6.2 X7.1 X7.2 X8.1 X8.2 X9.1 X9.2 X10.1 X10.2 X11.1 X11.2 X12.1 X12.2 Y1.1 Y1.2 Y2.1 Y2.2 Y3.1 Y3.2 Y4.1 Y4.2 X13.1 X13.2 X14.1...

  • Page 31: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 32 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK MATRIX MODULE 40-510/511/512/513 Page 6.2...

  • Page 33: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 34 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.1 - Single 12 x 4 Matrix 40-510-021: Relay Numbering Matrix Module 40-510-021: Signal paths (with relay energised) Relay Relay Relay Relay Relay Relay Relay Relay Crosspoint Crosspoint Crosspoint Crosspoint Position Number Position...
  • Page 35 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.2 - Dual 12 x 4 Matrix 40-511-021: Relay Numbering Matrix Module 40-511-021: Bank 1 Signal paths (with relay energised) Relay Relay Relay Relay Relay Relay Relay Relay Crosspoint Crosspoint Crosspoint Crosspoint Position...
  • Page 36 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.3 - Single 12 x 8 Matrix 40-512-021: Relay Numbering Matrix Module 40-512-021: Signal paths (with relay energised) Relay Relay Relay Relay Relay Relay Relay Relay Crosspoint Crosspoint Crosspoint Crosspoint Position Number Position...
  • Page 37 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.4 - Single 24 x 4 Matrix 40-513-021: Relay Numbering Matrix Module 40-513-021: Signal paths (with relay energised) Relay Relay Relay Relay Relay Relay Relay Relay Crosspoint Crosspoint Crosspoint Crosspoint Position Number Position...
  • Page 38 SECTION 7 - MAINTENANCE INFORMATION pickering Figure 7.5 - Matrix Module 40-513-021 MATRIX MODULE 40-510/511/512/513 Page 7.6...
