Page 4
Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
PRODUCT SAFETY SAFETY SYMBOLS The following safety symbols may be used on the product and throughout the product documentation. MEANING / DESCRIPTION SYMBOL PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.
Unused slots in the PXI/LXI chassis are populated with blanking plates to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering in a variety of slot widths. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals.
Page 9
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O signals (refer to the Maintenance Section). • Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or the combined weight of the modules &...
Page 10
Channel 1 Common Channel 2 Channel 2 Common Pickering PXI Fiber Optic MEMS Switching modules are Channel 3 available in many high density formats with a choice of Block Diagram of Dual 2 Channel Fiber Optic Channel 4 Channel 1...
Page 11
PXI bus via 32-bit P1/J1 backplane connector. Signals via front panel fiber optic connectors (choice of FC/ APC, FC/PC,SC/PC, MU or LC types). Other Fiber Connector Styles Pickering can manufacture Fiber Optic Switch modules with other connector styles, please contact sales office for further information. pickeringtest.com MEMS FIBER OPTIC SWITCH MODULE 40-855 Page 1.2...
Page 12
All modules are fully CE compliant and meet applicable EU Systems such as LabVIEW RT. For other RTOS support directives: Low-voltage safety EN61010-1:2001, contact Pickering. These drivers may be used with a variety of EMC Immunity EN61000-6-1:2001, Emissions EN55011:1998. programming environments and applications including: ...

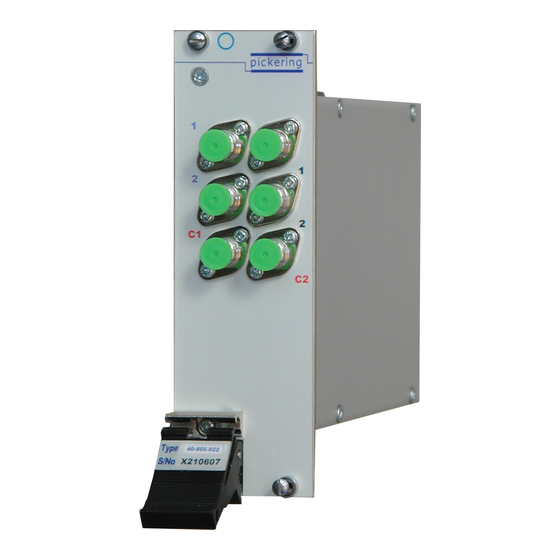

SECTION 2 - TECHNICAL DESCRIPTION pickering SECTION 2 - TECHNICAL DESCRIPTION FUNCTIONAL DESCRIPTION Functional block diagrams for the 40-855 are provided in Figures 2.1 and 2.2. The Fiber Optic Switch Module is powered by a +5V input via Compact PCI connector J1. The module comprises Fiber Optic switches which connect an optical channel by redirecting the optical signal received at the common input into a selected output fibre.
Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.
For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.
Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
IVI Driver for Windows - pi40iv The pi40iv IVI (Interchangeable Virtual Instrument) driver supports all Pickering Interfaces PXI switch cards that are consistent with the Iviswtch class model - as are the great majority of cards in the System 40/45/50 ranges. It integrates well with LabWindows/CVI and LabVIEW, and is fully compatible with Switch Executive.
Page 21
Pickering LXI products include an SSH interface which allows remote command line access to control cards, or, using a suitable package, programmatic control. The user is advised to visit the Pickering web site for further details of all the above drivers, where documentation, example programs, and further help with driver choice are available.
SECTION 4 - PROGRAMMING GUIDE pickering MODULE ARCHITECTURE 40-855 The 40-855 Modules utilise either one or two MEMS switches depending on the option. In the default state Channel 1 is selected. Energising the MEMS switch appropriately creates a signal path between the Common and the other Channel terminal.
SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE 40-855 Here are some simple examples of using the drivers with the 40-855 Single 2 Channel Switch Module. Channel 1 is always set by default. The Dual 2 Channel Switch Modules operate in the similar way but have a different number of bits in the sub-unit.
Page 24
SECTION 5 - CONNECTOR INFORMATION pickering SECTION 5 - CONNECTOR INFORMATION Figure 5.1 provides pin outs for the single Fiber Optic Switch Modules and Figure 5.2 provides pin outs for the dual Fiber Optic Switch Modules in the 40-855 range.
Page 25
SECTION 5 - CONNECTOR INFORMATION pickering Channel 1 Common Channel 2 Channel 1 Channel 1 Common Channel 2 Channel 2 Common Channel 3 Channel 4 Channel 1 Block Diagram of a Dual 2 Channel Fiber Optic Switch Channel 2 Common...
PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
Page 29
SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.1 - Single Fiber Optic Switch Module 40-855: Relay Numbering Board Relay No. Signal Path 40-855-012/112 Com to Channel 1 (Default) Com to Channel 2 (Energised) R17 R18 R19 SW6 (0V) SW1 (5V)
Page 30
SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.2 - Dual Fiber Optic Switch Module 40-855: Relay Numbering Board Relay Nos. Board Relay Nos. Signal Path 40-855-022/122 40-855-222 Com1 to Channel 1 (Default) Com1 to Channel 2 (Energised) Com2 to Channel 1 (Default)
