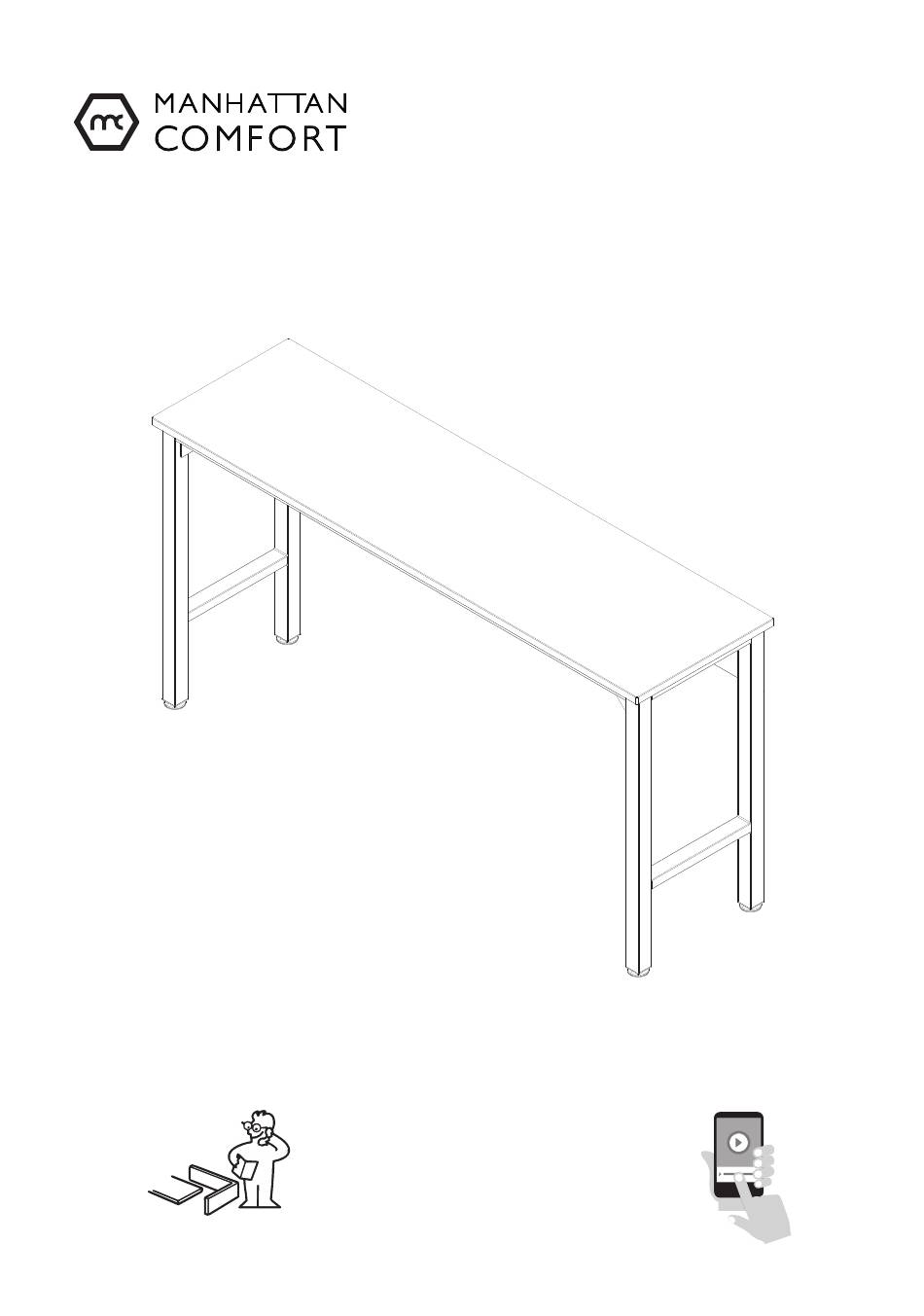

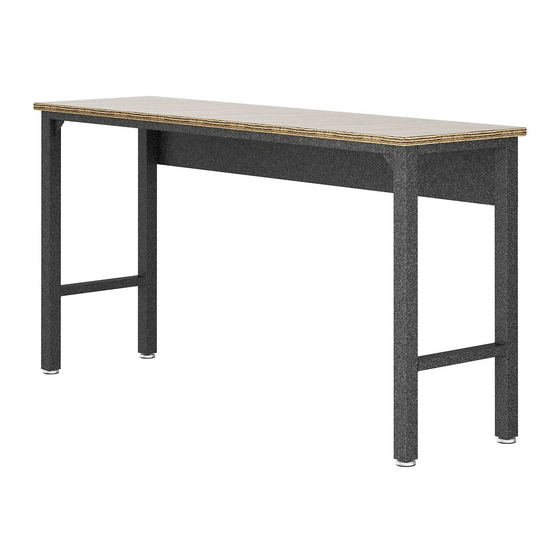

- Page 1 1000008344 - 15/03/2018 ASSEMBLY HANDBOOK – FORTRESS GARAGE TABLE 6GMC Stuck? Questions? We are here to help. 1-888-230-2225 View our assembly video online help@manhattancomfort.com www.manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly * Included in the kit Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly.
- Page 3 ASSEMBLY HANDBOOK – FORTRESS GARAGE TABLE 3100013836 Back 3000007402 Left Frame 3000007398 WARNING Maximum weight supported by work surface Right Frame 3000007383 Hardware list 1000008391 1000008387 1000008299 1000008368 1000009499 Qty. 3 Qty. 20 Qty. 20 Qty. 4 Qty. 4 1000009033 1000008285 3000007407 Qty.
- Page 4 1. Fit the shoes to frame P32 and P31 base and turn to screw. To level the height or the table, STEP 1 turn the shoe clockwise or counterclockwise until is aligned STEP 2 1. Align corner brackets F16 to the upper sides of frames P31 and P32 and fix them with F3 and F8...
- Page 5 STEP 3 1. Align frames P31 and P32 to P34 2. Fix corner brackets F16 to the metallic part of P34, with F3 and F8 STEP 4 1. Then, fix frames P31 and P32 to the wooden part of part P34, with F4...
- Page 6 STEP 5 1. Align the part P29 to frames P31 and P32 2. Fix part P29 to frames P31 and P32 with F3 and F8 STEP 6 1. Fix part P29 to part P34 wooden side, with F2...
- Page 7 STEP 7 1 -Insert product log...
