Summary of Contents for Manhattan Comfort Fortress 3GMCC

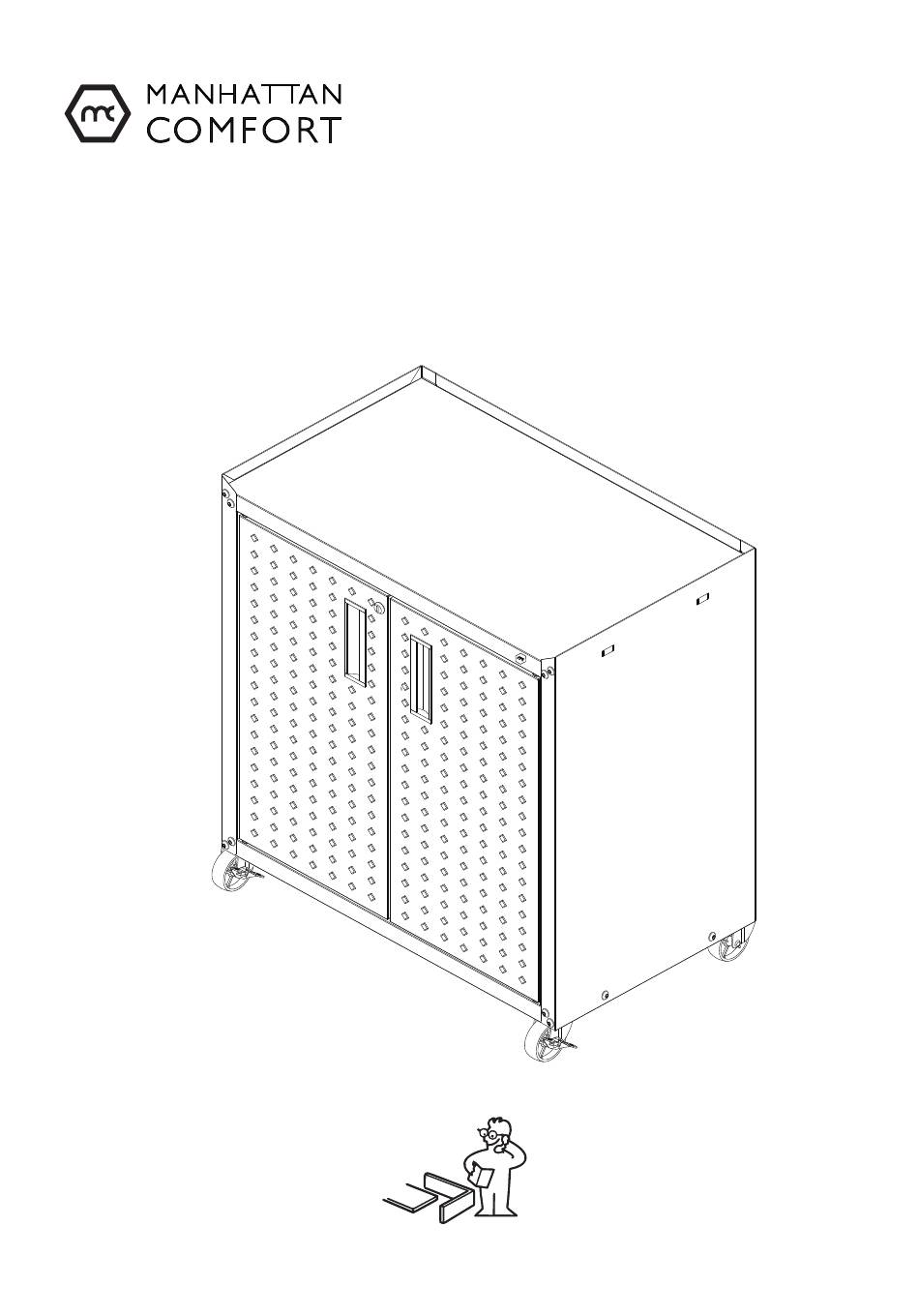

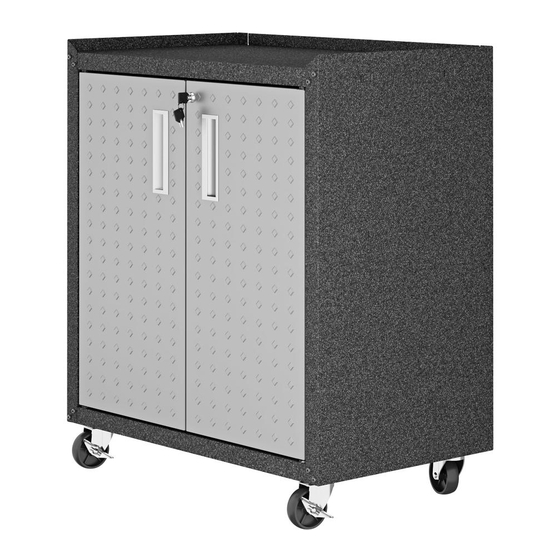

- Page 1 1000009892 -24/01/2020 Assembly Guide Model: 3GMCC Fortress 31.5" Mobile Garage Cabinet With Shelves Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly * Included in the kit * Not included in the kit Locking nut, no key tightening required. Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly.
- Page 3 Fortress 31.5" Mobile Garage Cabinet With Shelves Upper Back 3000007312 Left Side 3000007316 WARNING 3000007270 Shelf 3000007311 Maximum weight supported by shelf Lower Back 3000007266 Bottom 3000008643 Left Door 3000007302 Right Side 3000007308 Right Door 3000007304 Hardware list 1000010159 1000011850 1000011853 1000011851 1000008301...
- Page 4 STEP 1 1 - Fit part P7 inside part P3. 2 - Fit both parts in the frontal side, with F1and F2. 1 - Fit part P2 inside part P7. STEP 2 2 - Fit both parts in the frontal side, with F1 and F2.
- Page 5 1 - Fit part P5 between part P2 and P3 STEP 3 2 - Check that all 4 tabs have been fitted 3 - Fit part P5 to parts P2 and P3, at the frontal side, with F1 and F2. STEP 4 1 - Turn the cabinet with the back side 2 - Fit parts P2 and P3 to parts P5 and P7 with...
- Page 6 STEP 5 1 - Fit part P10 into parts P2, P3 and P5 Check that all fits are supported over the bolts. 2 - After fitting the parts, screw the bolts until locked. WARNING Position part P10 on the P5 side for mounting the STEP 6 1 - Fit part P9 into parts P2, P3 and P7...
- Page 7 STEP 7 1 - To assembly the cabinet with caster, align the F10 and F11 to the holes in part P7 and fix them with F1 and F2. 2 - WARNING: Casters with lock (F11) must be fitted in the frontal side of the cabinet STEP 8 1- Turn the cupboard so that it will stand in the position of use.
- Page 8 STEP 9 1 - Fit the lower part P19 in diagonal position to insert it inside the cupboard 2 - Lean part P19 in part P2, P3 and place it over the F7 detailed in the figure here below 3 - Lower the other side of part P19, leaning it over the left F7 1 - To assembly the doors, fit door P23 lower hinge bolt inside the bushing fixed in part P7 STEP 10 Then, pull down the pin of door P23 upper hinge;...
- Page 9 ITEMS EXCLUDED FROM WARRANT S This limited warranty does not cover: 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Fortress Garage products or to instruct the consumer on how to use or install them.
