Summary of Contents for Manhattan Comfort 4GMCC

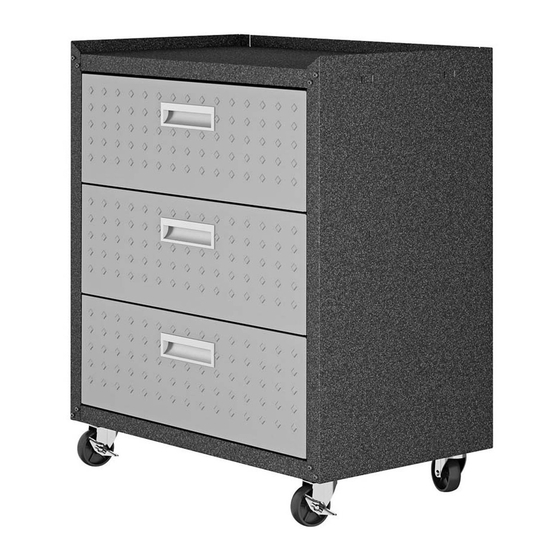

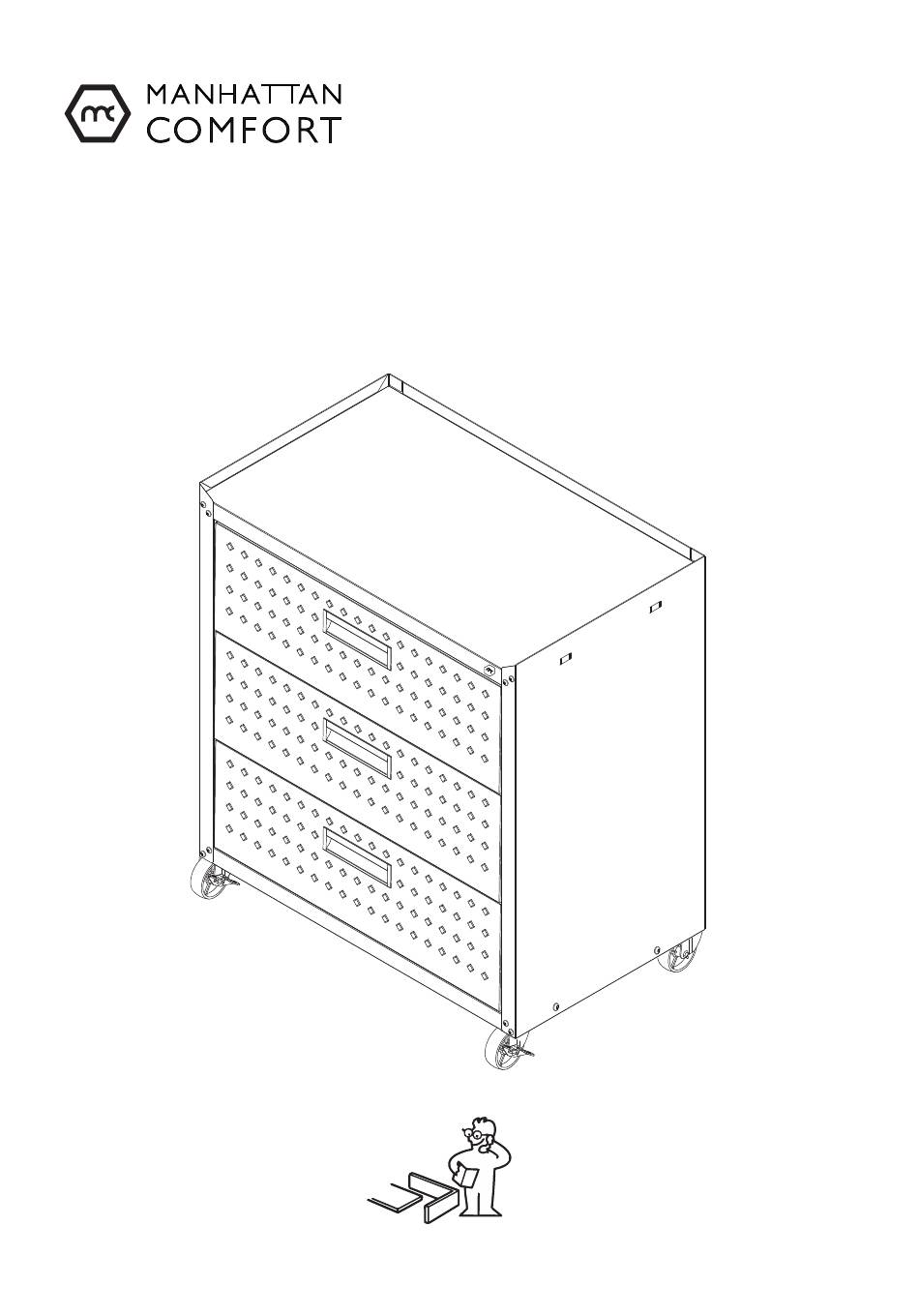

- Page 1 1000009894 - 21/12/2021 Assembly Guide Model: 4GMCC Fortress 31.5" Mobile Garage Chest With Drawers Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly * Included in the kit * Not included in the kit Locking nut, no key tightening required. Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly.
-
Page 3: Hardware List
Fortress 31.5" Mobile Garage Chest With Drawers I D EN T I F Y T H E C OL OR OF YOU R C A B I N ET M A T ER IA L N º D ESC R IPT ION GR EY C HA R C OA L M A T T E W HIT E... - Page 4 STEP 1 1 - Fit part P7 inside part P3 2 - Fit both parts in the frontal side, with F1 and F2. WARNING Do not tighten the screw completely. 1 - Fit part P2 inside part P7 STEP 2 2 - Fit both parts in the frontal side, with F1 and F2.
- Page 5 2 - Fit parts P2 and P3 to parts P5 and P7 with STEP 3 1 - Turn the cabinet with the back side F1 and F2. upwards. Do not tighten the screw completely. WARNING 180° 180° Check that all parts are correctly supported to ensure product alignment.
- Page 6 1 - Fit part P9 into parts P2, P3 and P7. Check that all fits are supported over the bolts STEP 5 2 - After fitting the parts, screw the bolts until locked. STEP 6 1 - Put the cabinet a flat surface. 3 - To assembly the cabinet with caster, align 2 - Completely tighten all screws.
- Page 7 STEP 7 1 - Fit part P15 to part P28. 2 - Screw the two parts with F18. STEP 8 1 - Align parts P12 and P13 to part P15, until it leans against piece P28. 2 - Screw the two with F18.
- Page 8 STEP 9 1 - Insert part P14 over part P15 and between parts P12 and P13 2 - Then, fix part P14 to parts P12, P13 and P15, with F18. 3- Procedure for removing the drawer 1 - Fit the drawers - already assembled- between parts STEP 10 P2 and P3, through the drawer slides.
- Page 9 STEP 11 1 -Insert product logo...
- Page 12 ITEMS EXCLUDED FROM WARRANT S This limited warranty does not cover: 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Fortress Garage products or to instruct the consumer on how to use or install them.
