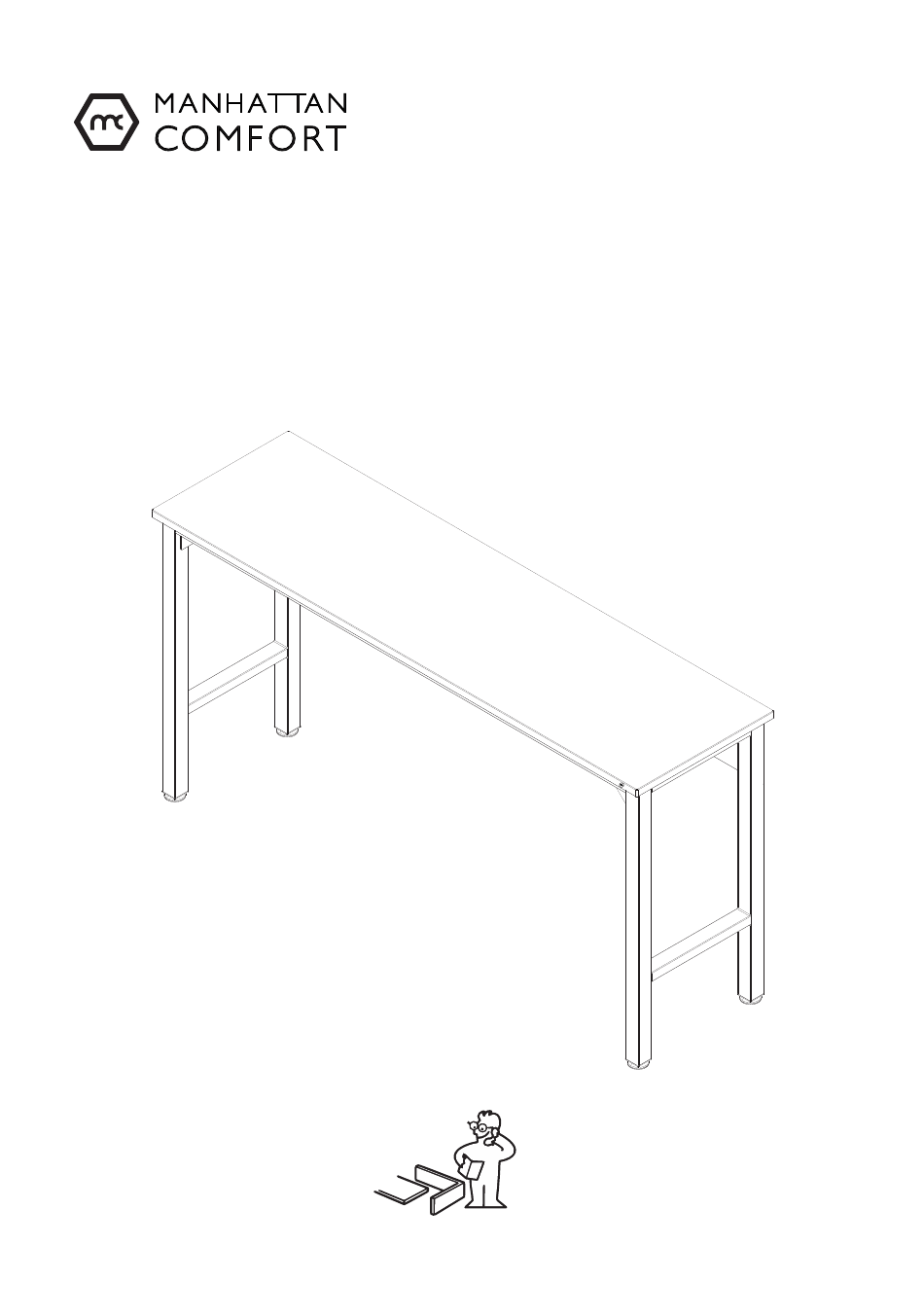

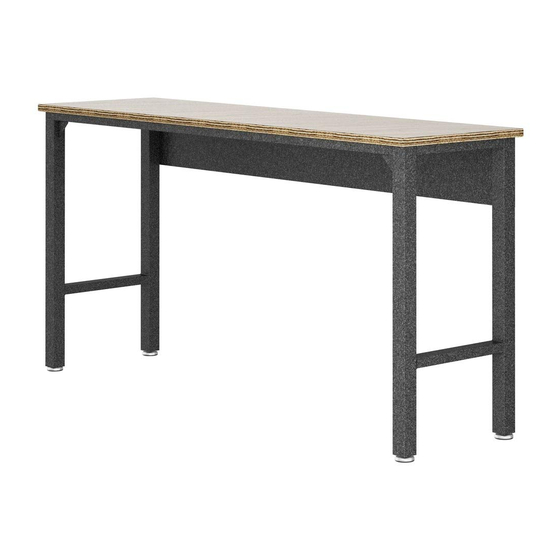

- Page 1 1000008344 - 08/06/2020 Assembly Guide Model: 6GMC Fortress Garage Table Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly, leveling and safety * Included in the kit * Not included in the kit Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly.
- Page 3 Fortress Garage Table 3100013836 Back 3000007402 Left Frame 3000007398 WARNING Maximum weight supported by work surface Right Frame 3000007383 Hardware list 1000008391 1000012202 1000008299 1000008368 Qty. 20 Qty. 20 Qty. 4 Qty. 4 1000009033 1000008285 3000007407 1000011848 Qty. 1 Qty. 1 Qty.
- Page 4 1. Fit the shoes to frame P32 and P31 base and turn to screw. To level the height or the table, STEP 1 turn the shoe clockwise or counterclockwise until is aligned STEP 2 1. Align corner brackets F16 to the upper sides of frames P31 and P32 and fix them with F3 and F8.
- Page 5 STEP 3 1. Align frames P31 and P32 to P34 2. Fix corner brackets F16 to the metallic part of P34, with F3 and F8 STEP 4 1. Then, fix frames P31 and P32 to the wooden part of part P34, with F4...
- Page 6 STEP 5 1. Align the part P29 to frames P31 and P32 2. Fix part P29 to frames P31 and P32 with F3 and F8 STEP 6 1. Fix part P29 to part P34 wooden side, with F19.
- Page 7 STEP 7 1 -Insert product logo...
- Page 8 ITEMS EXCLUDED FROM WARRANT S This limited warranty does not cover: 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Fortress Garage products or to instruct the consumer on how to use or install them.
