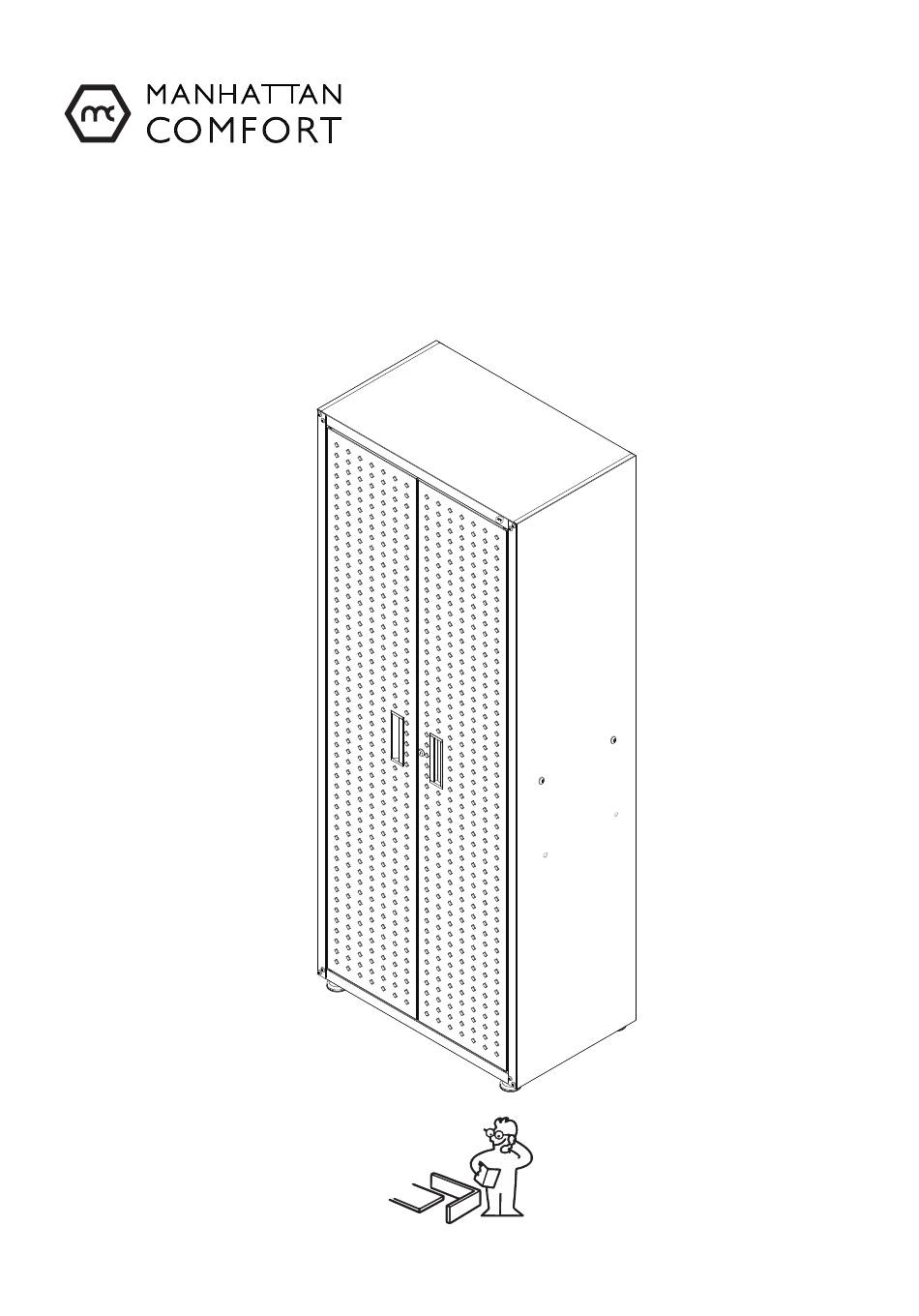

- Page 1 1000008413 - 21/12/2021 Assembly Guide Model: 1GMCF Fortress 74.8" Tall Garage Cabinet Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly, leveling and safety * Included in the kit * Not included in the kit 5/16" Locking nut, no key tightening required. Do not place the parts directly onto the floor.
-
Page 3: Hardware List
Fortress 74.8" Tall Garage Cabinet I D EN T I F Y T H E C OL OR OF YOU R C A B I N ET M A T ER IA L N º D ESC R IPT ION GR EY C HA R C OA L M A T T E W HIT E... - Page 4 1 - Fit part P5 inside part P1 STEP 1 2 - Fit both parts in the frontal side, with F1 and F2. WARNING Do not tighten the screw completely. STEP 2 1 - Fit part P7 inside part P1 2 - Fit both parts in the frontal side, with part F1 and F2.
- Page 5 STEP 3 1 - Fit part P5 and P7 inside part P1. 2 - Fit part P1 to parts P5 and P7 at the frontal side, with F1 and F2. WARNING Do not tighten the screw completely. STEP 4 1 - Turn the cupboard with the back side 2 - Fit parts P1 to parts P5 and P7 with upwards F1 and F2.
- Page 6 STEP 5 1 - Fit part P8 into part P5 and parts P1 2 - Check that all fits are supported over the bolts 3 - After fitting the parts, screw the bolts until locked WARNING Position part P8 on the P5 side for mounting the cabinet.
- Page 7 STEP 7 1 - Fit parts P11 inside parts P1 and P8, as illustrated here below. Check that all fits are supported over the bolts 2 - After fitting the parts, screw the bolts until locked Do not tighten the screw completely. WARNING STEP 8 1 - Fit part P9 inside parts P1, P11 and P7.
- Page 8 1 - Put the cabinet a flat surface. STEP 9 2 - Completely tighten all screws. 3 - To assembly the cabinet with shoe fit the accessory in part P7 as illustrated here below and turn to screw. To level the height or the cabinet, turn the shoe either clockwise or counterclockwise to align it.
- Page 9 1- Turn the cupboard so that it will stand in the position of use. STEP 11 2- Fix F7 to parts P1, as shown here below. STEP 12 1 - Fit the lower part P20 in diagonal position to insert it inside the cupboard. 2 - Lean part P20 in part P1 and place it over the F7 detailed in the figure here below.
- Page 10 STEP 13 1 - Align part P16 at an approximate height of 4 - Withdraw the part from the floor 5 - On the market spots, drill the wall 72 ½" 2 - Align the part using a level using a Driller with a 5/16" (8 mm) drill. 3 - Mark the wall using holes of part P16, aided by a pencil 5/16"...
- Page 11 STEP 15 1 - Align part P16 to the bushings and fix them 2 - Fix the cupboard to part P16, held to the wall. with F5. Part P8 tab shall be used to this purpose. 3 - Adjust feet WALL WALL STEP 16...
- Page 12 STEP 17 1 - Turn the central hinge tab until it leans onto P1 hinge back part. Align the hinge tab and P1 holes and fix it with F18. 2 - Repeat the step for part P25 1 - Fit F12 to the inside of part P25, with F19. STEP 18 2 - Adjusting the position of the locking tongue.
- Page 13 STEP 19 1 - To avoid misaligned doors, level the cabinet by adjusting the height of the leveling legs. Turn to the left to raise or to the right to lower the leveling leg.
- Page 16 ITEMS EXCLUDED FROM WARRANT S This limited warranty does not cover: 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Fortress Garage products or to instruct the consumer on how to use or install them.
