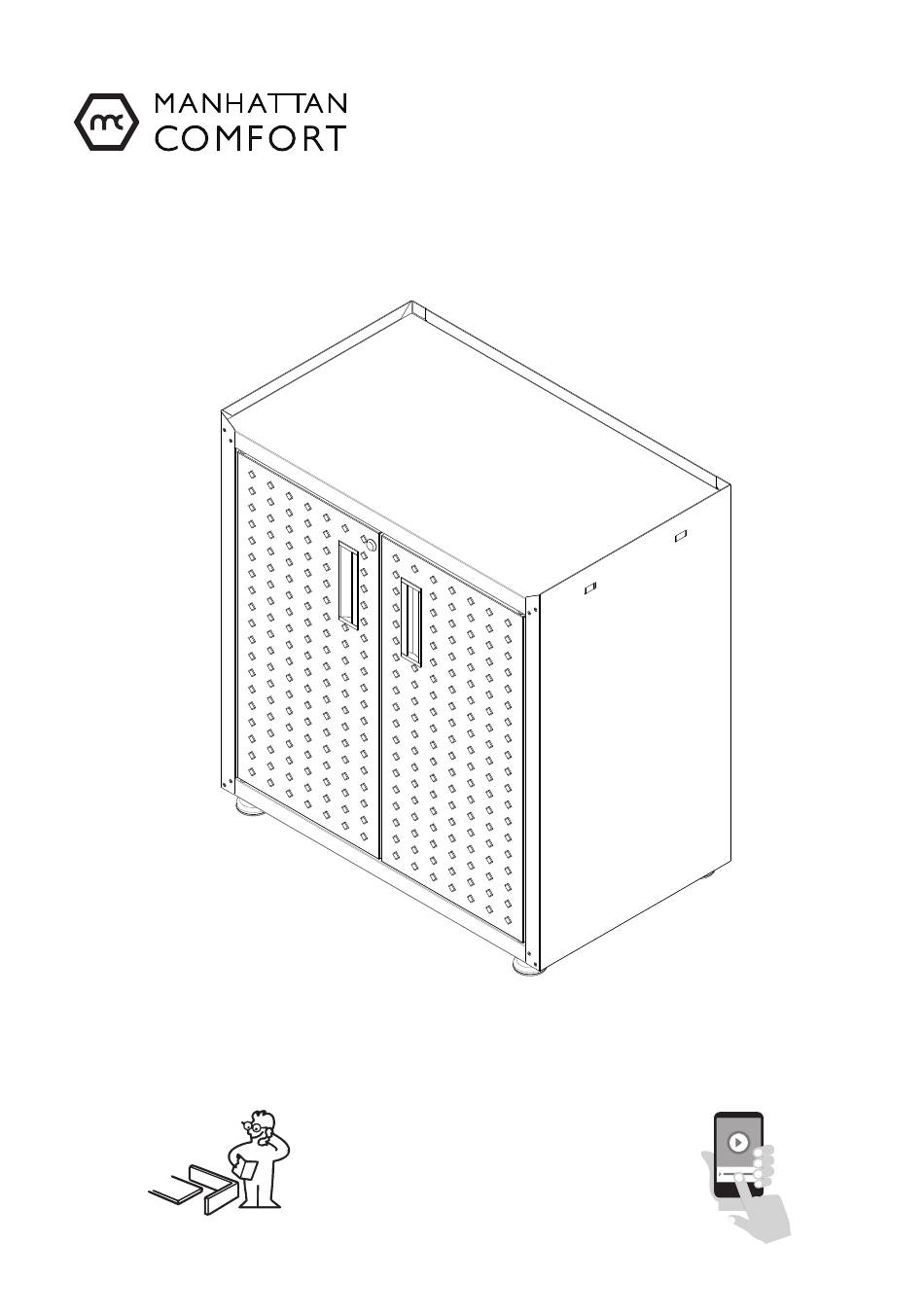

- Page 1 1000008414 -15/03/2018 ASSEMBLY HANDBOOK - FORTRESS 31.5" MOBILE GARAGE CABINET WITH SHELVESS 3GMCF Stuck? Questions? We are here to help. 1-888-230-2225 View our assembly video online help@manhattancomfort.com www.manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly * Included in the kit Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly.
- Page 3 ASSEMBLY HANDBOOK - FORTRESS 31.5" MOBILE GARAGE CABINET WITH SHELVES Upper Back 3000007312 Left Side 3000007316 WARNING 3000007270 Shelf 3000007311 Maximum weight supported by shelf Lower Back 3000007366 Bottom 3000007271 Left Door 3000007302 Right Side 3000007308 Right Door 3000007304 Hardware list 1000009500 1000008301 1000008280...
- Page 4 STEP 1 1 - Fit part P7 inside part P3 2 - Fit both parts in the frontal side, with STEP 2 1 - Fit part P2 inside part P7 2 - Fit both parts in the frontal side, with...
- Page 5 1 - Fit part P5 between part P2 and P3 STEP 3 2 - Check that all 4 tabs have been fitted 3 - Fit part P5 to parts P2 and P3, at the frontal side, with F1 STEP 4 1 - Turn the cabinet with the back side 2 - Fit parts P2 and P3 to parts P5 and P7 with upwards...
- Page 6 STEP 5 1 - Fit part P10 into parts P2, P3 and P5 Check that all fits are supported over the bolts 2 - After fitting the parts, screw the bolts until WARNING locked Position part P10 on the P5 side for mounting the STEP 6 1 - Fit part P9 into parts P2, P3 and P7...
- Page 7 STEP 7 1 - To assembly the cabinet with shoe fit the 2 - To assembly the cabinet with caster, align accessory F9 in part P7 as illustrated here the F10 and F11 to the holes in part P7 below and turn to screw. To level the and fix them with F3 height or the cabinet, turn the shoe either 3 - WARNING: Casters with lock (F11) must be...
- Page 8 STEP 9 1 - Fit the lower part P19 in diagonal position to insert it inside the cupboard 2 - Lean part P19 in part P2, P3 and place it over the F7 detailed in the figure here below 3 - Lower the other side of part P19, leaning it over the left F7 STEP 10 1 - To assembly the doors, fit door P23 lower hinge bolt inside the bushing fixed in part P7 Then, pull down the pin of door P23 upper hinge;...
