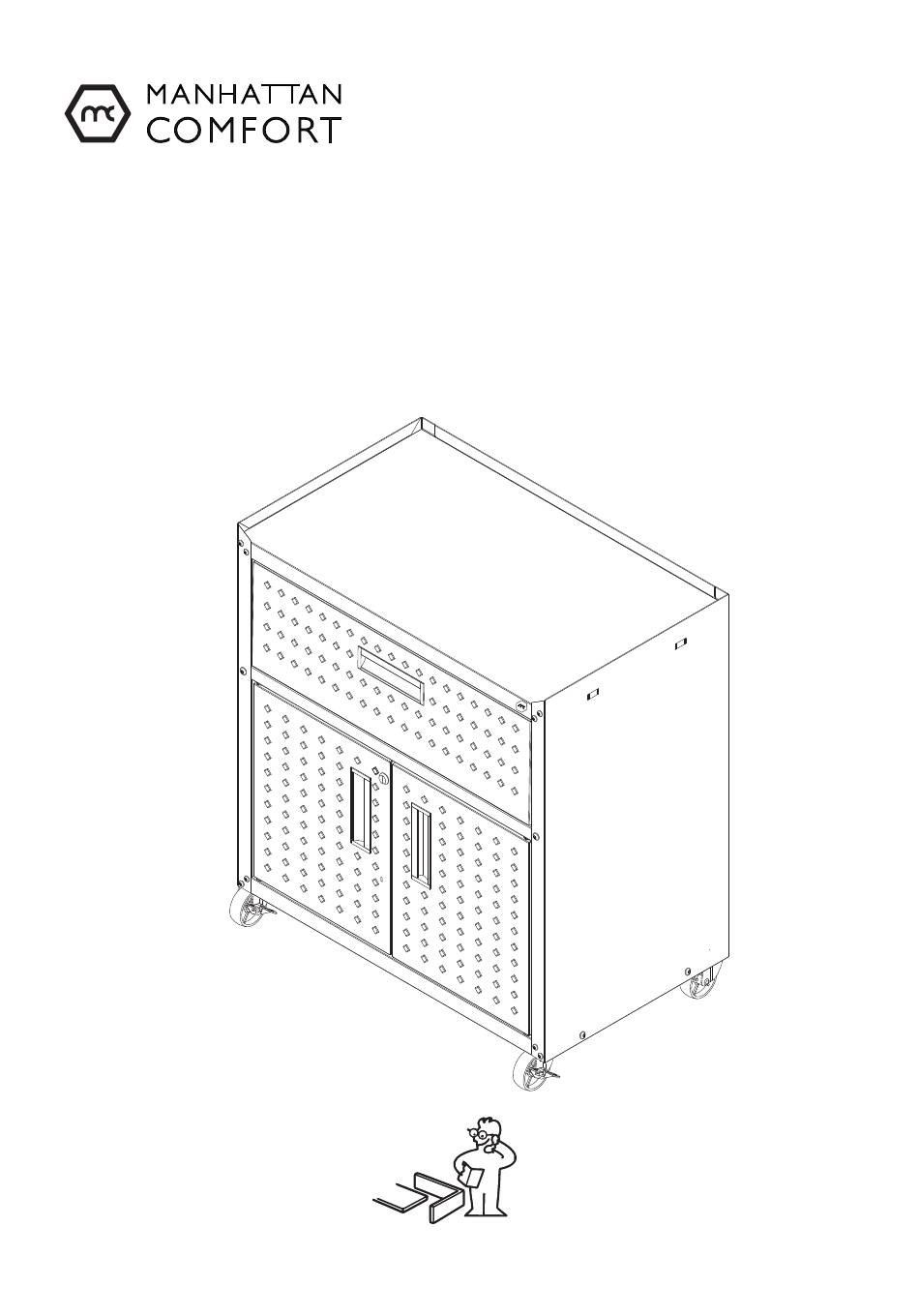

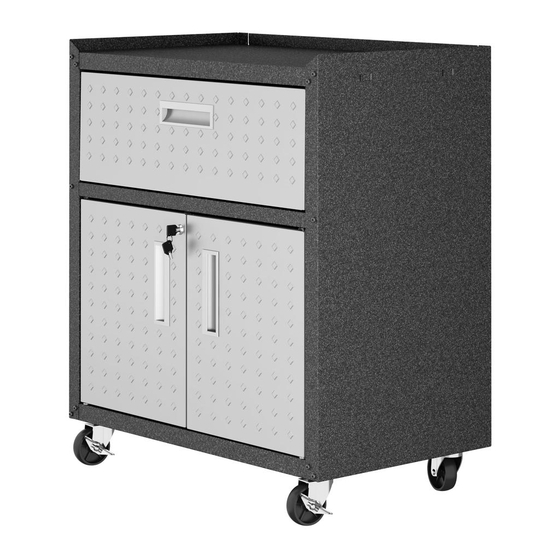

- Page 1 1000009893 - 21/12/2021 Assembly Guide Model: 2GMCC Fortress 31.5" Mobile Garage Cabinet With Drawer And Shelves Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly * Included in the kit * Not included in the kit Locking nut, no key tightening required. Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly.
-
Page 3: Hardware List
Fortress 31.5" Mobile Garage Cabinet With Drawer And Shelves I D EN TI FY T H E C OLOR OF YOU R C A B I N ET M A T ER IA L N º D ESC R IPT ION GR EY C HA R C OA L M A T T E W HIT E... - Page 4 STEP 1 1 - Fit part P7 inside part P3 2 - Fit both parts in the frontal side, with F1 and F2. WARNING Do not tighten the screw completely. 1 - Fit part P2 inside part P7 STEP 2 2 - Fit both parts in the frontal side, with F1 and F2.
- Page 5 STEP 3 1 - Fit part P5 between part P2 and P3 2 - Check that all 4 tabs have been fitted 3 - Fit part P5 to parts P2 and P3, at the frontal side, with F1 and F2. WARNING Do not tighten the screw...
- Page 6 1 - Fit part P10 into parts P2, P3 and P5 STEP 5 Check that all fits are supported over the bolts. 2 - After fitting the parts, screw the bolts until locked. WARNING Position part P10 on the P5 side for mounting the cabinet.
- Page 7 1 - Put the cabinet a flat surface. 3 - To assembly the cabinet with caster, align STEP 7 2 - Completely tighten all screws. the F10 and F11 to the holes in part P7 and fix them with F1 and F2. 4 - WARNING: Casters with lock (F11) must be fitted in the frontal side of the cabinet WARNING...
- Page 8 STEP 9 1 - Fit the lower part P19 in diagonal position to insert it inside the cupboard 2 - Lean part P19 in part P2, P3 and place it over the F7 detailed in the figure here below 3 - Lower the other side of part P19, leaning it over the left F7 1 - Fit the lower part P17 in diagonal position to insert it inside the cupboard.
- Page 9 1 - To assembly the doors, fit door P26 lower hinge bolt inside the bushing fixed in part P7. STEP 11 Then, pull down the pin of door P26 upper hinge; align the door and release the pin to fit the bushing fixed in part P17.
- Page 10 STEP 13 1 - Align parts P12 and P13 on part P15 and slide to part P28. 2 - Screw the two parts with F18. 1 - Insert part P14 over part P15 and STEP 14 between parts P12 and P13. 2 - Then, fix part P14 to parts P12, P13 and P15, with F1 .
- Page 11 STEP 15 1 - Fit the drawers - already assembled- 3- Procedure for removing the drawer between parts P2 and P3, through the drawer slides. Right Left 2 - Check that the drawer slides on both sides are properly fitted. If they are not properly fitted, the drawer will not close completely.
- Page 12 ITEMS EXCLUDED FROM WARRANT S This limited warranty does not cover: 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Fortress Garage products or to instruct the consumer on how to use or install them.
