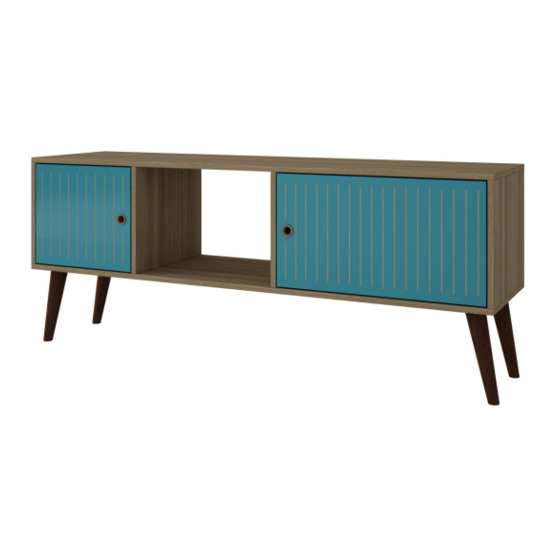

Summary of Contents for Manhattan Comfort BPP 33-169

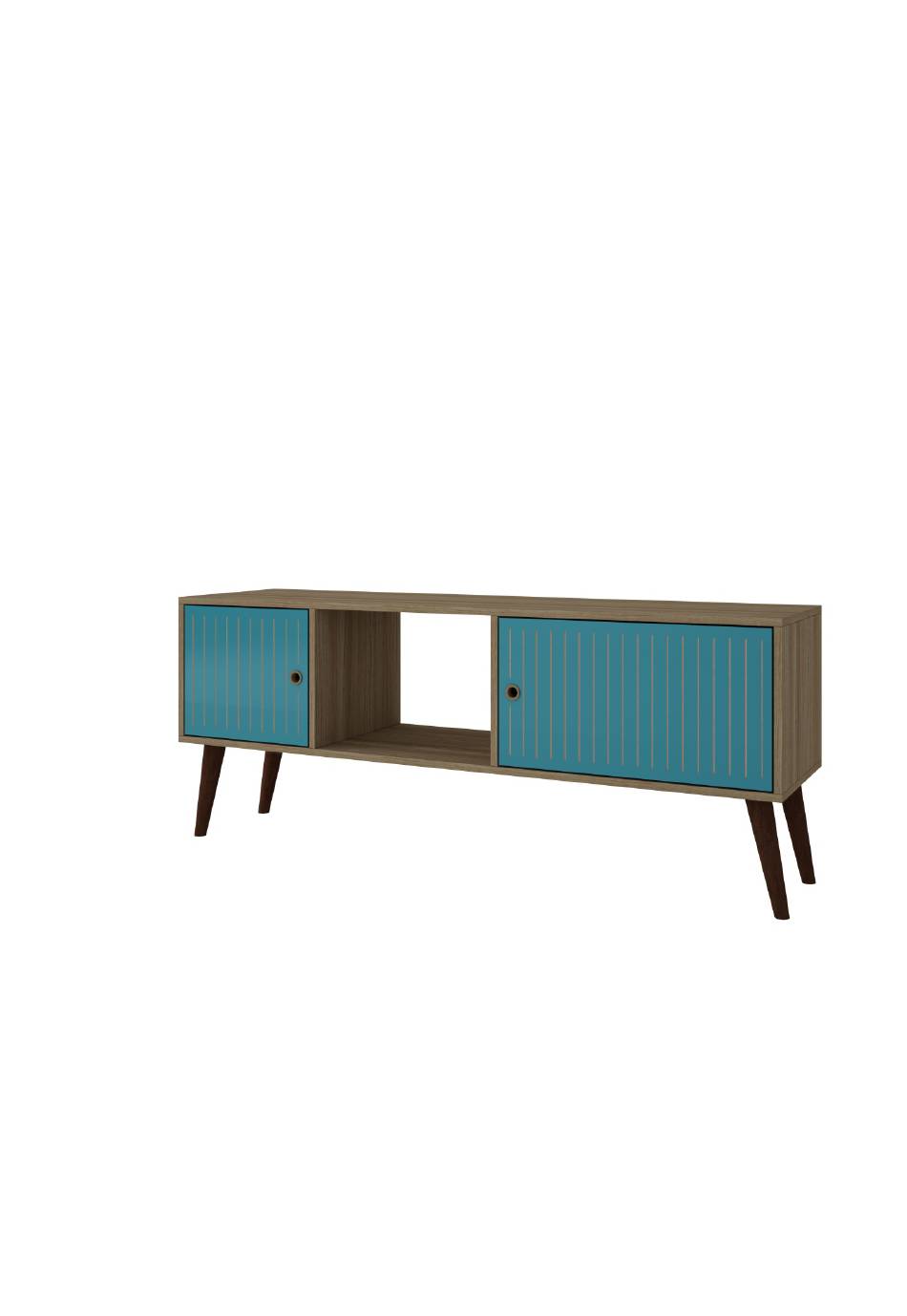

Page 1
MANUAL DE MONTAGEM ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE COD BR: BPP 33-169 COD US: 67AMC129, 67AMC134,...
Page 3
Sumário Summary Resumen Acessórios incluídos na caixa Hardware included in box Accesorios incluidos en la caja V : 07/18...
Page 4
Antes de começar Before starting Antes de comenzar Antes de começar a montagem prepare o ambiente, deixando-o completamente limpo e com bom espaço para iniciar o trabalho. Prepare the room before starting the assembly, leaving it completely clean and the area in good condition to start the work.
Page 5
Dimensões e ferramentas Dimensions and tools Dimensiones y herramientas Dimensões: L: 1350 A: 544 P: 350 mm Dimensions: W: 53.14 H: 21.41 D: 13.77 inches Dimensiones: L: 1350 A: 544 P: 350 mm UTILIZE ALCOOL PARA REMOVER O NUMERO DAS PEÇAS USE ALCOHOL TO REMOVE PART NUMBERS UTILICE ALCOHOL PARA ELIMINAR EL NUMERO DE LAS PIEZAS Para facilitar a montagem, utilize uma parafusadeira elétrica.
Page 6
COD BR: BPP 33-169 COD US: 67AMC129, 67AMC134, PEÇA DESCRIÇÃO QUANT. PART DESCRIPTION PIEZA DESCRIPCIÓN CANTIDAD BASE BASE BASE TAMPO TAPA LATERAL ESQUERDA LEFT SIDE LATERAL IZQUIERDA PORTA ESQUERDA LEFT DOOR PUERTA IZQUIERDA DIVISÓRIA ESQUERDA LEFT PARTITION PARTICIÓN IZQUIERDA PORTA DIREITA...
Page 7
ACESSóRIOS INCLUÍDOS NA CAIXA 01 - HARDWARE INCLUDED IN BOX 01 - ACCESORIOS INCLUÍDOS EN LA CAJA 01 EF 000033 x 16 EF 000216 X 4 EF 000745 x 4 TAPA FUROS x 8 STICKER x 8 TAPAS PLÁSTICAS x 8 GIZ x 01 EF 000132 x 8 EF 000168 X 28...
Page 8
=5KG - 11LB =16 KG - 35.5LB PASSO 1 / STEP 1 / PASO 1 Fixe a ferragem EF 000094 nas pré-furações indicadas na peça 02. Fix hardware EF 000094 at pre-drilled holes indicated at piece 02. Fije el herraje EF000094 el los huecos ya marcados en la pieza 02.
Page 9
PASSO 2 / STEP 2 / PASO 2 Use a cola antes de inserir a ferragem EF 000033 nas pré-furações da peça 02. Fixe a ferragem EF 000025 usando a ferragem EF 000106. Use the glue before connecting hardware EF 000033 at pre-drilled holes in piece 02. Fix hardware EF 000025 using hardware EF 000106.
Page 10
PASSO 5 / STEP 5 / PASO 5 Use a cola antes de conectar as peças 02, 03, 05, 09 e 10, insira a ferragem EF 000216 e gire para apertar. Use the glue before connecting pieces 02 ,03, 05, 09 and 10, insert hardware EF 000216 and turn to tighten.
Page 11
PASSO 8 / STEP 8/ PASO 8 Fixe as peças 07 e 08 ao móvel utilizando a ferragem EF 000168. Fix pieces 07 and 08 at the furniture using hardware EF 000168. Fije las piezas 07 y 08 al mueble utilizando el herraje EF 000168. EF 000025 Por favor, observe a posição da ferragem EF 000025 Please, note hardware EF 000025 position.Por favor...
