MCX2D and MCX4D Installation Manual
This document contains minimum information that is necessary for initial setup
and installation of the device. The detailed description of configuration
parameters and functionalities is specified in respective Operating Manual
available at www.roger.pl.
I
NTRODUCTION

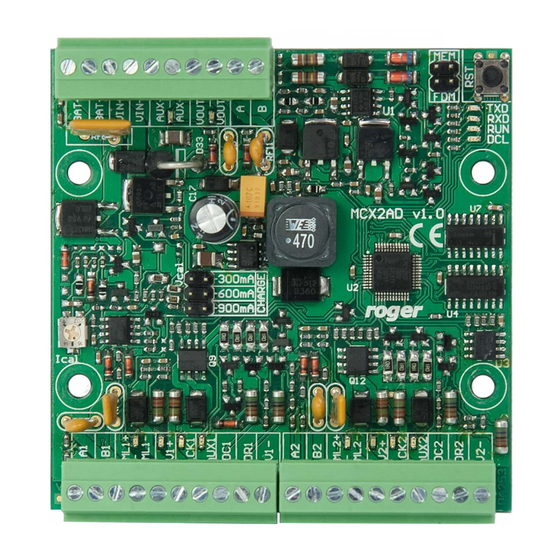

The expander is designed to operate in RACS 5 system as peripheral device
connected to RS485 bus of MC16 access controller. MCX2D expander enables
to control up to two doors by MC16 controller while MCX4D expander enables to
control up to four doors by MC16 controller. MCX2D expander is installed in
MC16-PAC-2-KIT while MCX4D expander is installed in MC16-PAC-3-KIT and
MC16-PAC-4-KIT.
Factory new device is configured with default settings including ID=100 address.
Programming of expander's configuration parameters is optional and is not
necessary in most cases. Configuration of the expander with RogerVDM requires
RUD-1 interface.
C R
ONFIGURATION WITH OGER

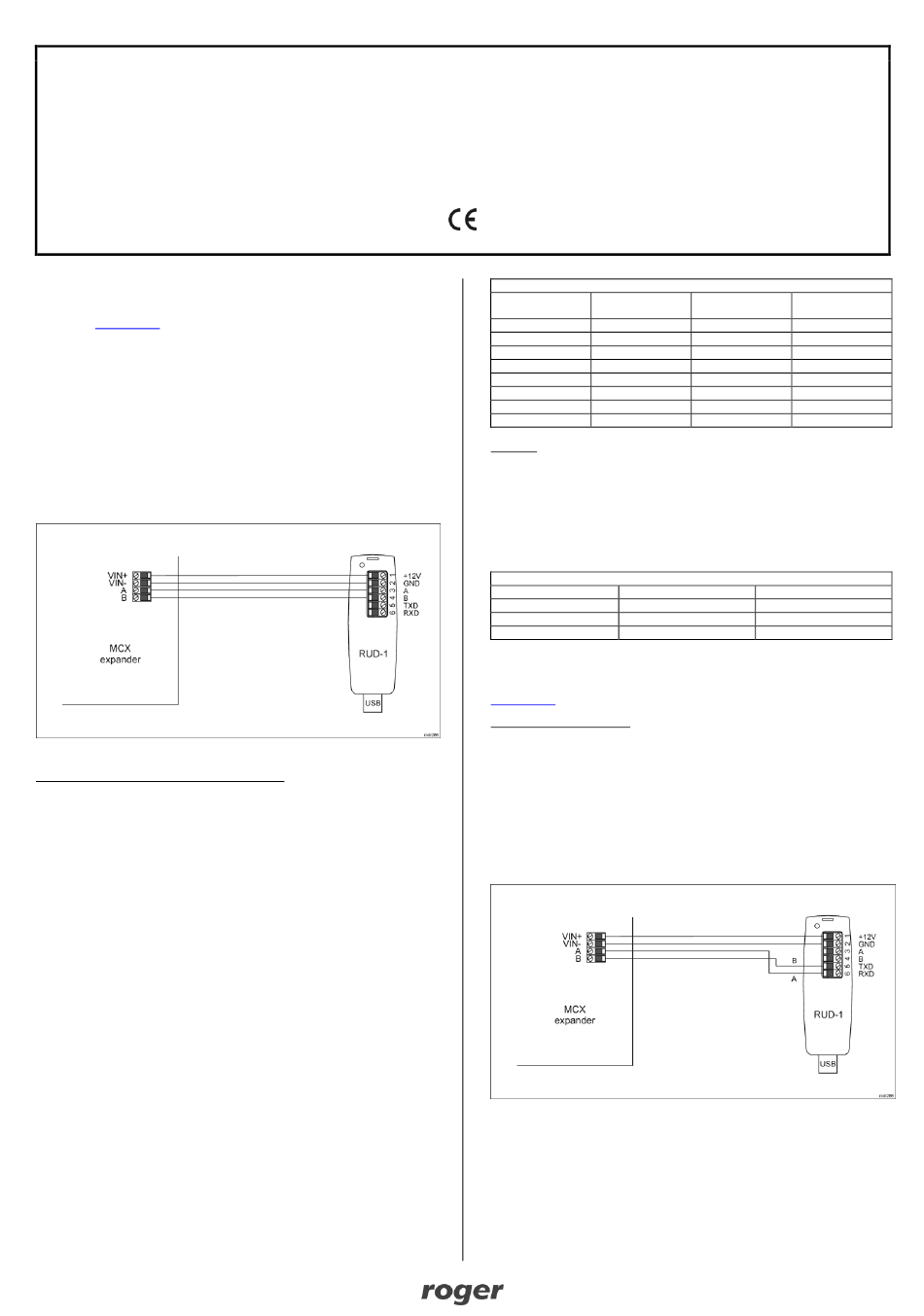

Fig. 1 Connection of the expander to RUD-1 interface for configuration
Programming procedure with RogerVDM software:
1. Connect the device to RUD-1 interface (fig. 1) and connect the RUD-1 to
computer's USB port.
2. Place jumper on MEM contacts (fig. 3).
3. Restart the device by pressing RST button and RUN LED indicator will
pulsate.
4. Start RogerVDM program, select MCX v1.x device, v1.x firmware version,
RS485 communication channel and serial port with RUD-1 interface.
5. Click Connect, the program will establish connection and will automatically
display Configuration tab.
6. Enter unoccupied RS485 address in range of 100-115 (if necessary) and
other settings according to requirements of specific installation.
7. Click Send to Device to update the configuration.
8. Optionally make a backup by clicking Send to File... and saving settings to
file on disk.
9. Remove jumper from MEM contacts and disconnect device from RUD-1
interface.
M
EMORY RESET PROCEDURE AND MANUAL ADDRESSING
Memory reset procedure resets all settings to factory default ones and it enables
to manually configure the address on RS485 bus.
1. Remove all connections from LCK1 and DC1 lines.
2. Place jumper on MEM contacts (fig. 3).
3. Connect LCK1 and DC1 lines.
4. Restart the device by pressing RST button and ACL LED indicator will
pulsate.
5. Disconnect LCK1 and DC1 lines and RUN LED indicator will pulsate. The
number of consecutive flashes will correspond to expander's address on
RS485 bus.
6. Press RST button in a certain moment to select certain address (table 1) or
press RST button after 16 flashes when ACL and RUN LED indicators are
switched on to select default ID=100 address.
7. Remove jumper from MEM contacts and restart the device.
Roger Access Control System
MCX2D / MCX4D Installation Manual
Firmware version: 1.1.18 and newer
Hardware version: 1.0
Document version: Rev. B
VDM P
ROGRAM
Table 1. RS485 address encoding
Number of RUN RS485 address
LED flashes
1 101
2 102
3 103
4 104
5 105
6 106
7 107
8 108
Example:
In order to select ID=105 address within memory reset procedure, press RST
button after 5 flashes of RUN LED indicator.
B
ACKUP BATTERY CHARGING
According to fig. 4 the expander charges backup battery. Table 2 includes
current values which ensure 80% battery charging within 24 hours (according to
EN-60839 standard). The charging current is selected by means of jumpers on
expander board (fig. 3).
Table 2. Backup battery charging
Charging current Contacts
300mA 300
600mA 600
900mA 900
F
IRMWARE UPDATE
The update requires connection of expander to computer with RUD-1 interface
(fig. 2) and starting RogerVDM software. The latest firmware file is available at
www.roger.pl.
Firmware update procedure:
1. Connect the device to RUD-1 interface (fig. 2) and connect the RUD-1 to
computer's USB port.
2. Place jumper on FDM contacts (fig. 3).
3. Restart the device by pressing RST button and TXD LED indicator will switch
on.
4. Start RogerVDM program and in the top menu select Tools and then Update
firmware.
5. In the opened window select device type, serial port with RUD-1 interface
and path to firmware file (*.hex).
6. Click Update to start firmware upload with progress bar in the bottom.
7. When the update is finished, remove FDM jumper and restart the device.
Fig. 2 Connection of the expander to RUD-1 interface for firmware update
2020-11-12
Number of RUN RS485 address
LED flashes
9 109
10 110
11 111
12 112
13 113
14 114
15 115
16 100
Battery capacity
7Ah
17Ah
24Ah
