OVERVIEW

The NuMaker-ML51SD is a development board for Nuvoton NuMicro ® ML51 series microcontrollers.
The NuMaker-ML51SD consists of two parts: an ML51 platform and an on-board Nu-Link2-Me
debugger and programmer. The NuMaker-ML51SD is designed for project evaluation, prototype
development and validation with power consumption monitoring function.
®
The ML51 platform is based on NuMicro ML51SD1AE. For the development flexibility, the ML51
platform provides the extension connectors of ML51SD1AE, the Arduino UNO compatible headers
and able to adopt multiple power supply. Furthermore, the Nuvoton-designed ammeter connector can
measure the power consumption instantly, which is essential for the prototype evaluation.
In addition to the ML51 platform, there is an attached on-board debugger and programmer "Nu-Link2-
Me". The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD
interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC.
Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could
be detached from the development board and becoming a stand-alone mass production programmer.

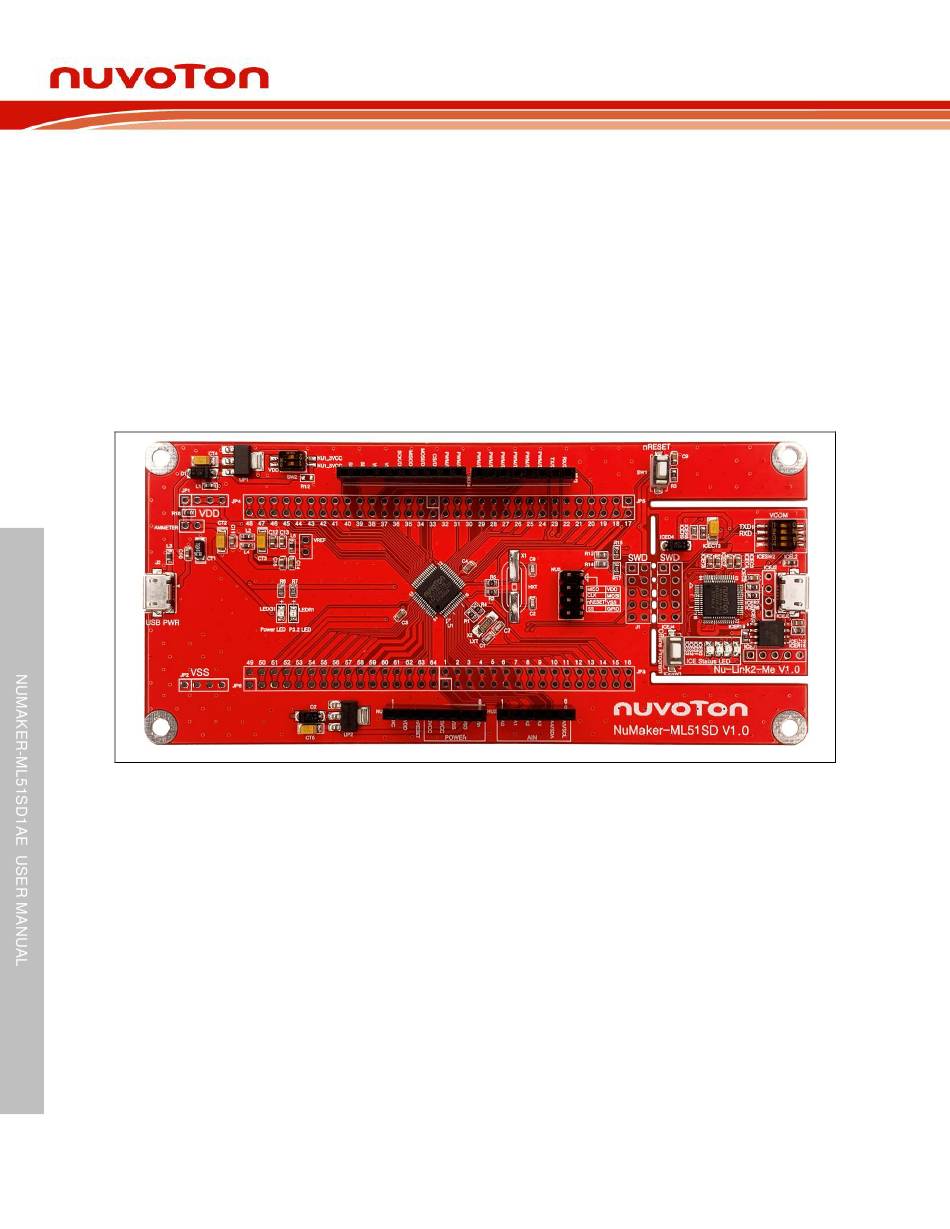

Figure 1-1 NuMaker-ML51SD Development Board
