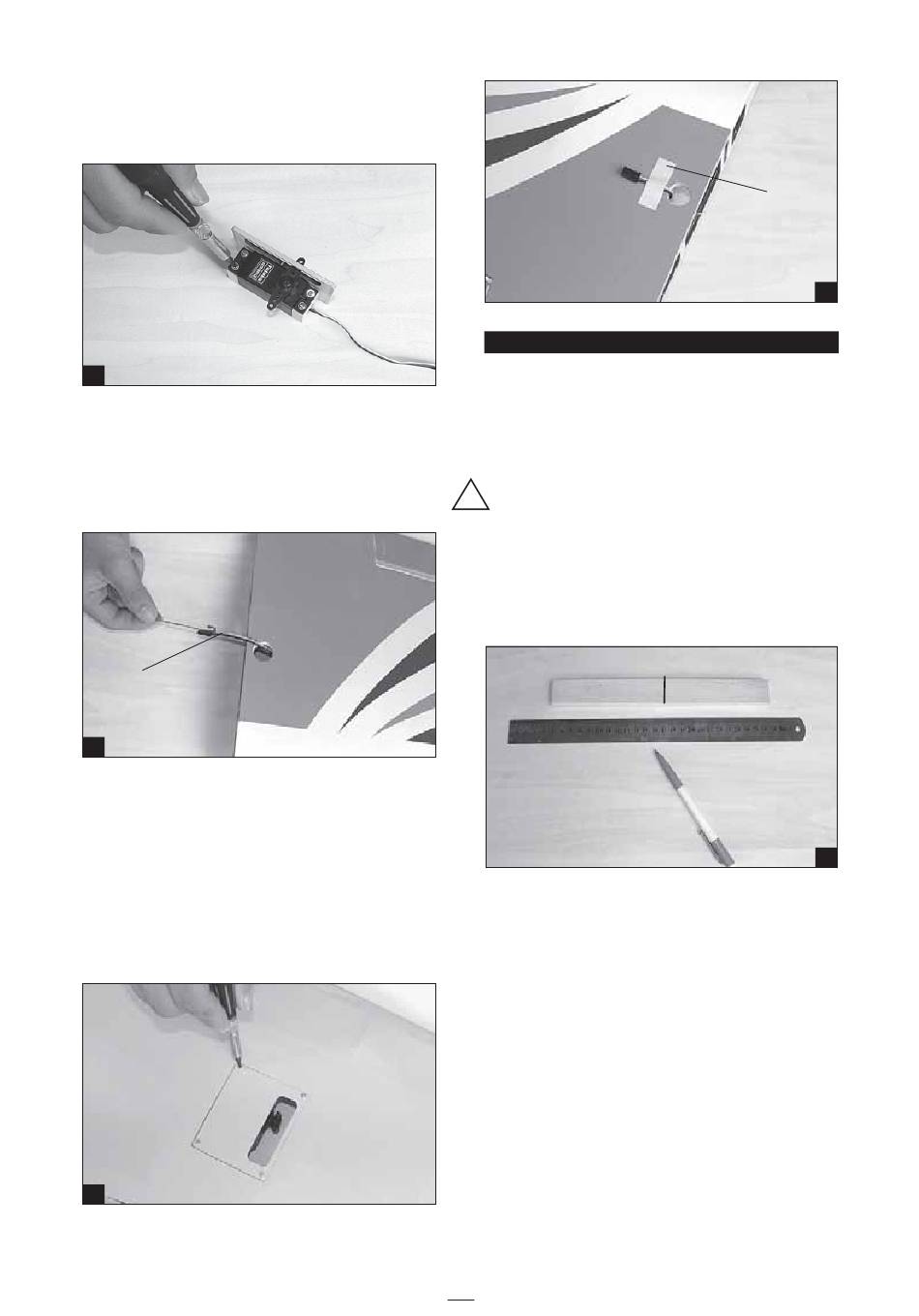

5. Place the servo into the servo tray. Center the
servo within the tray and drill 1,6mm pilot holes
through the block of wood for each of the four
mounting screws provided with the servo.
4
6. Using the thread as a guide and using masking
tape, tape the servo lead to the end of the
thread: carefully pull the thread out. When you
have pulled the servo lead out, remove the
masking tape and the servo lead from the
thread.
Servo lead
5
7. Place the aileron servo tray / hatch into the
servo box on the bottom of the wing and drill
1,6mm pilot holes through the tray and the
servo box for each of the four mounting screws.
Secure the servo tray in place using the
mounting screws provided (2mm x 12mm).
8. Repeat step # 2 - # 7 to install the second
aileron servo in the opposite wing half.
9. Using masking tape, tape the servo leads on to
the top of the wing.
6
INSTALLING THE DIHEDRAL BRACE
10. Look carefully at the surface of each root rib on
both wing halves. Notice how the excess
covering material overlaps onto them. Using a
modeling knife, carefully cut out away the
covering from both root ribs. Iron the covering
down so that it does not pull away from the
ribs.
!
It is important that the excess covering be
removed from the root ribs. This will ensure an
adequate wood to wood glue joint.
11. Using a ruler and a pen, locate and mark the
center line of the hardwood dihedral brace.
Draw the vertical line at this location on each
side of the brace.
Draw a center Line
12. Test fit the dihedral brace into the plywood box
in each wing half. The brace should slide into
each wing half up to the center line. If it does
not, remove the brace and lightly sand the
edges and tips until the proper fit is obtained.
13. Test fit both of the wing halves together with
the dihedral brace temporarily installed. Do not
glue it in at this time! The wing halves should fit
together tight with little or no gaps in the center
section joint. If the center section joint is not
tight, remove the wing halves and lightly sand
the edges and tips of the dihedral brace. Test
fit the wing halves together with the dihedral
brace installed again. Repeat until you are
satisfied with the fit of the wing halves. The
proper dihedral is built into the two root ribs
and should not be altered.
