Minimum frihøjde over gulvplader:

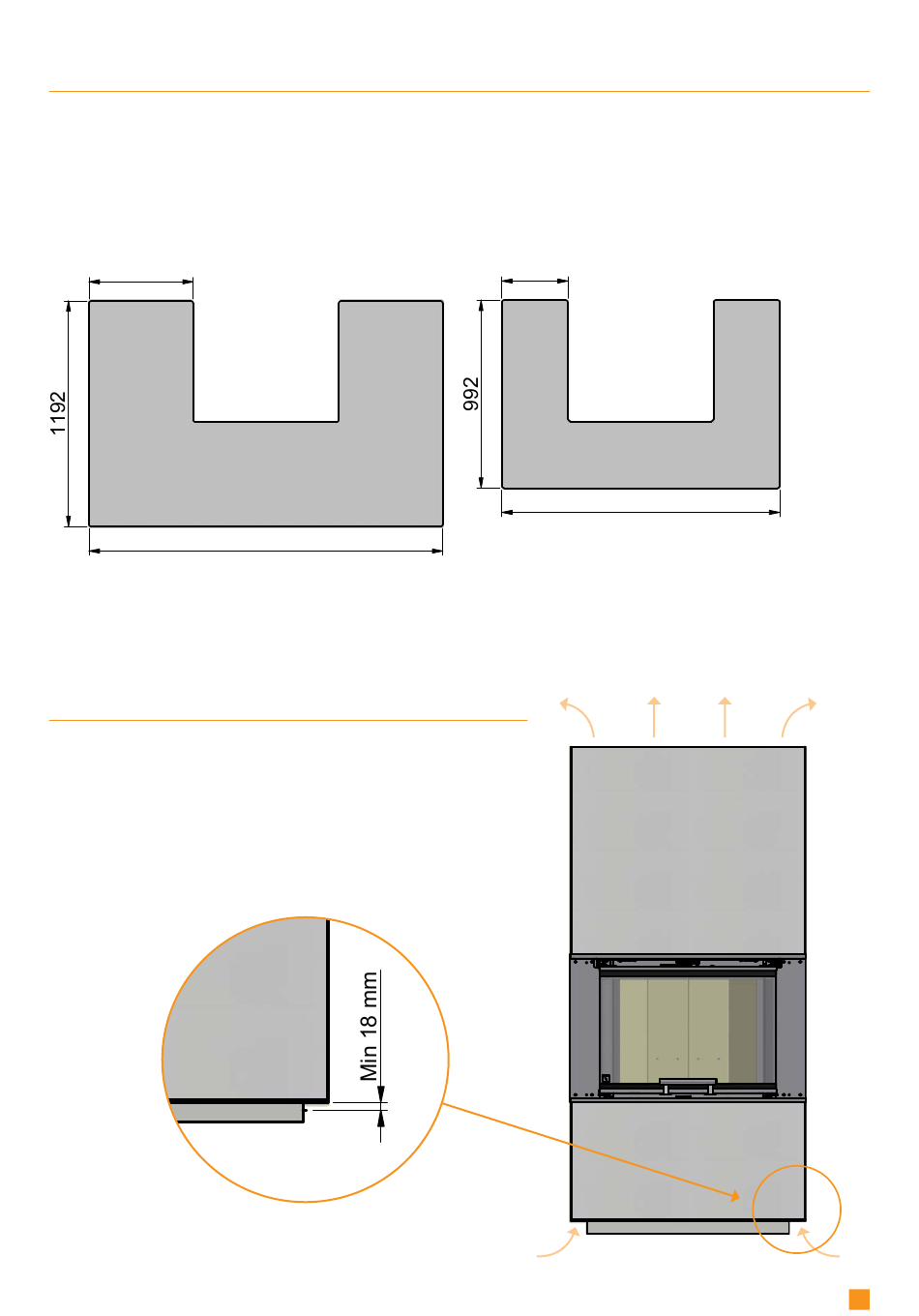

FLOOR PLATE

If you are placing the stove on a flammable floor, you must comply with the national and local regulations on the size of any
non-flammable subsurface required to cover the floor around the stove.
Scan 5004-S FRL
Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove.
The floor plate's function is to protect the floor and flammable material against any sparks that may occur.
550
Large shaped floor plate in clear or
smoke-coloured glass

CONVECTION AIR

Convection means that there is an air circulation ensuring that the heat is
equally distributed in the room. It is important that the demands
concerning convection areas are observed.
¬ Min. area for ingoing convection air: 500 cm
¬ Min. area for outgoing convection air: 760 cm
If there is not enough convection air, the covering may be damaged.
Do not obstruct the convection holes.
Scan 5004-S FRL
Stove: Name:
Material:
Weight:
Articlenumber:
C:\Working Folder\Designs\Scan 5004\95004228.idw
Path:
1868
2
2
Gulvplader
N/A Area: N/A
350
Minimum frihøjde over
1468
Small floor plate in clear or
smoke-coloured glass
Scan 5004-S FRL
Drawing
05-07-2019
Date:
number:
Constructed/Changed by: KEN
SCAN A/S
DK-5492 Vissenbjerg©
Scan 5003-S FL
95004228
