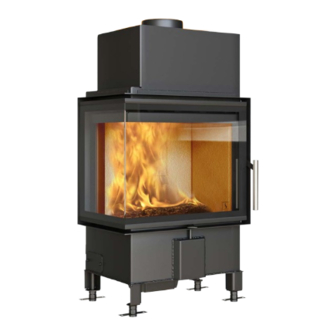

- Page 1 5006 FR UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 5006 FR ASSEMBLY AND INSTRUCTION MANUAL SCAN 5006 FR...
- Page 2 5006 FR CONGRATULATIONS ON YOUR NEW SCAN BUILT-IN STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
-
Page 3: Table Of Contents
CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch and minimum distances Safety Type plate Technical data and dimensions Product registration number ¬ ¬ ASSEMBLY Additional accessories Safety distance Disposal of packaging Cutout in the surround material Load-bearing foundation Fresh air intake Floor plate Closed combustion system Existing chimney and pre-fabricated element chimney... -
Page 4: Technical Data
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed. -
Page 5: Technical Data And Dimensions
Surface treatment Senotherm Dust @ 13% O mg/Nm Max. log length 33 cm No x @ 13% O mg/Nm Weight Scan 5006 FR/FL 100 kg Efficiency 83,56 Weight Scan 5006 FR/FL Energy efficiency index 112 kg w/heat shield Energy efficiency class Flue conn. -
Page 6: Dimension Sketch And Minimum Distances
DIMENSION SKETCH AND MINIMUM DISTANCES... - Page 7 MINIMUM DISTANCES...
-
Page 8: Type Plate
PRODUCT REGISTRATION NUMBER All Scan built-in stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S. -
Page 9: Assembly
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim- ney sweep, for advice. These experts will also let you know if your chimney needs renovating. -
Page 10: Requirements For Chimney
REQUIREMENTS FOR CHIMNEY The chimney must have a minimum internal diameter of 148 mm and have a T400 designation, with G for the soot fire test. The length should be min. 5 metres. If you opt to connect the built-in stove with an elbow pipe, you should use a curved elbow, as this gives a better draught. If you connect the stove with a sharp elbow pipe, the cleansing lid must be placed in the vertical part so that the horizontal part can be cleaned through here. -
Page 11: Cutout In The Surround Material
SIGN: MATERIALE: VÆGT: M3 NR.: M3 NR.: DIM.: DIM.: AREAL: AREAL: Scan A/S Scan A/S DK-5492 Vissenbjerg© DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5003\95003032.idw C:\Working Folder\Designs\Scan 5006\95006003.idw STI: STI: rewall for kasse rewall for kasse 95003032 TG.NR: 95006003 TG.NR: 22-01-2018 VÆGT: DATO:... -
Page 12: Fresh Air Intake
NOTE: If the stove has a fresh air connexion or closed combustion, the ventilation pipe must be open, when the stove is in use! FRESH AIR BOX FOR FLOOR (ACCESSORY) A fresh air box and connection pipe (Ø 100 mm) are available as accessories. Drawing Friskluftsadapter Scan 5006 FR/FL 03-06-2020 95006005 Name: Date:... -
Page 13: Clips For Norway (Large Rooms)
M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5003\95003019.idw STI: HEAT-STORAGE SYSTEM (ACCESSORY) Heat-storage stones are made from a special material with a high heat capacity. The stones are heated when the stove is on, re-releasing heat once it is off. This extends the time over which the stove remains warm. -
Page 14: Mounting Of The Heat Shields/Convection Covers
Stove: Name: Date: number: Constructed /Changed by: Material: Weight: Articlenumber: Area: SCAN A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5002\95002014.iam Path: Place the heat shield on top of the built-in stove Montage at varmeskjold Scan 5002 EMNE: TG.NR: 95002007 20-06-2017 TERIALE: VÆGT:... - Page 15 MATERIALE: VÆGT: M3 NR.: DIM.: AREAL: Scan A/S First mount the lateral heat DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5003\95003010.idw STI: shields on the stove and then the rear heat shield 1 : 2 ) Montage af varmeskjold Scan 5003 95003011 NAVN: EMNE: TG.NR:...
- Page 16 B ( 1 : 4 ) Montage at varmeskjold Scan 5002 NAVN: EMNE: MATERIALE: VÆGT: M3 NR.: DIM.: AREAL: C:\Working Folder\Designs\Scan 5002\95002012.idw STI: Montage at varmeskjold 95003012 MNE: TG.NR: 12-07-17 VÆGT: DATO: SIGN: AREAL: Scan A/S DK-5492 Vissenbjerg©...
- Page 17 TG.NR: 12-07-17 DATO: SIGN: MATERIALE: VÆGT: M3 NR.: DIM.: AREAL: Scan A/S E ( 1 : 4 ) DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5003\95003015.idw STI: Montage at varmeskjold Scan 5003 95003015 NAVN: EMNE: TG.NR: Montage at varmeskjold Scan 5003 DATO: 12-07-17...
-
Page 18: Frames
FRAMES (ACCESSORY) - Page 19 FRAMES (ACCESSORY) Scan 5006 FR/FL Item nr. 50059026...
- Page 20 FRAMES (ACCESSORY) Scan 5006 FR/FL Item nr. 50059027...
-
Page 21: Convection Air
Cut a hole in the wall according to the indicated measures Fasten the metal frame with the six screws. Then mount the six magnets on the screws and place the convection grate on the magnets Montage af konventionsrist, Scan 5003 Scan 5003 95003033 NAVN: EMNE: TG.NR:... -
Page 22: Instructions For Use
When lighting the fire, the combustion air should be fully open. Closed Open Spjældregulering Scan 5003 95003006 NAVN: EMNE: TG.NR: 05-07-2017 MATERIALE: VÆGT: DATO: SIGN: M3 NR.: DIM.: AREAL: A ( 1 : 1 Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5003\95003006.idw STI:... -
Page 23: Instructions For Heating
LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan-stoves.com or scan the QR-code. Please note that Scan the QR-code this video is only intended as a guide. -
Page 24: Continuous Operation
CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane. -
Page 25: Selecting Wood/Fuel
HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st. -
Page 26: Sweeping The Chimney And Cleaning The Stove
CHECKING THE STOVE Scan A/S recommends that you check your stove thoroughly after sweeping/cleaning. Check all visible surfaces for cracks. Check that all joints are tight and that the gaskets are correctly seated. Worn or deformed gaskets should be replaced. -
Page 27: Gaskets
AREAL: Krog Iversen & Co A/S MATERIALE: VÆGT: DATO: 08-01-2018 SIGN: DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5003\95003029.idw STI: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5003\95003030.idw STI: Place baffle fitting #6 on the edge of the chamotte plates #3, #4a, #4b and #4c. Then place the lower baffle plate #5. -
Page 28: Cleaning The Glass
CLEANING THE GLASS Our stoves are designed to prevent serious soot build-up on the glass. The best way to achieve this is to make sure you have a good supply of combustion air. It is also very important that the wood is dry and the chimney correctly dimensioned. Even if you operate the stove in accordance with our instructions, a slight film of soot may still accumulate on the glass. - Page 29 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the built-in stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬...
- Page 30 You must quote your stove‘s product registration number when you contact us or your authorised Scan dealer with a warranty claim. The warranty covers all parts which in the opinion of Scan A/S require repair or replacement due to manufacturing or construc- tion error The warranty applies to the original purchaser of the product only, and is not transferable (except on prior sale).
- Page 31 NOTES...
- Page 32 Product registration number Quote this number at all enquiries Edition: UK 95006500 10059339-P03 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 08.03.2023...
