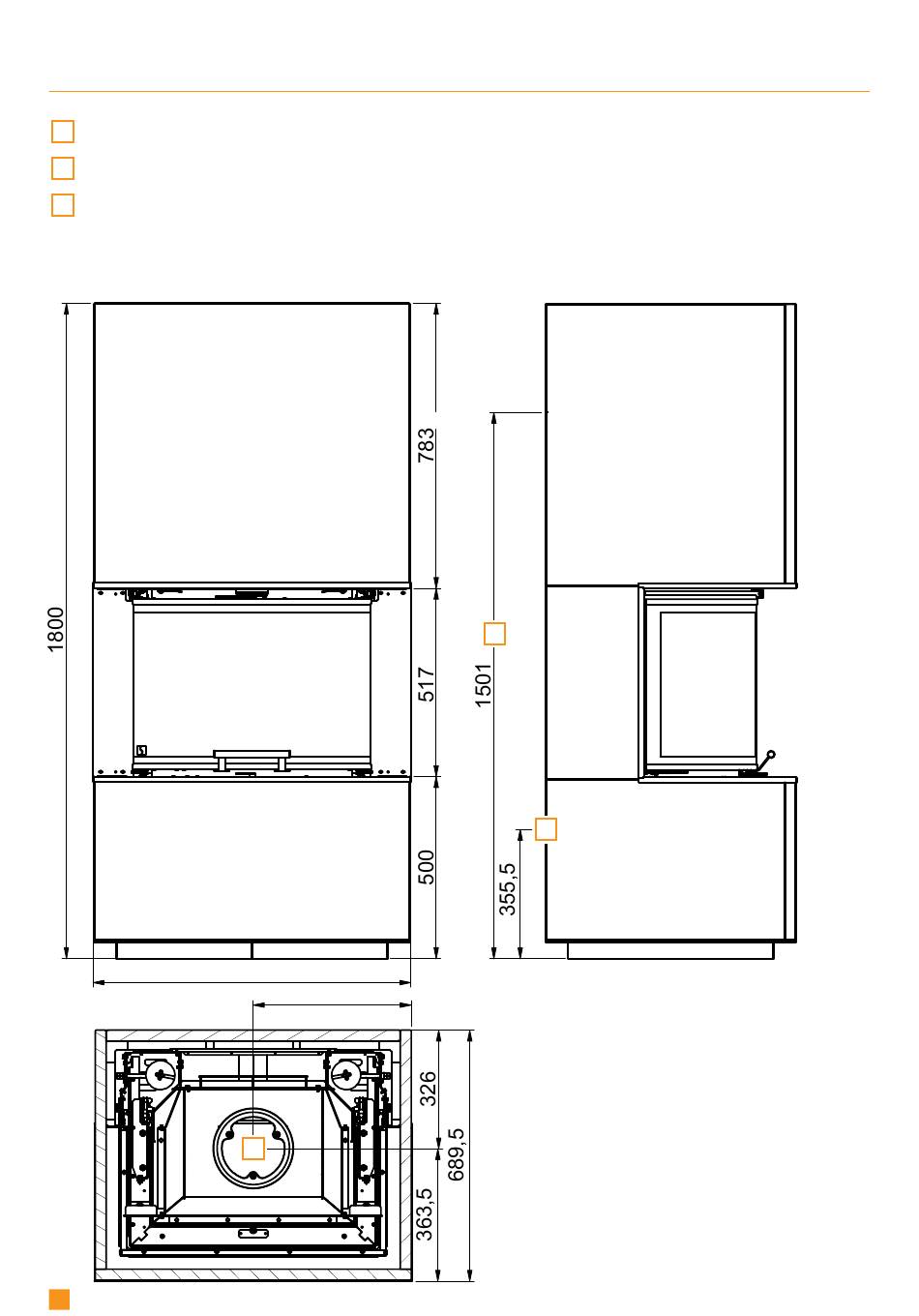

DIMENSION SKETCH SCAN 5004-S FRL

A
Height to the beginning of flue connecting piece at top outlet
B
Centre of fresh air intake - Inside measure: 132 mm, Outside measure: 149 mm
C
Flue conn. piece - Inside measure: 175 mm, Outside measure: 200 mm
All measures are in mm
*NB – remember to check the distance to flammable materials.
6
873
434
C
A
B
Drawing
