Replacement of shaft for bearing holder

Advertisement

Quick Links

66
UK- INSTRUCTIONS MANUAL
DE - BEDIENUNGSANLEITUNG
Shaft replacement kit
51063241

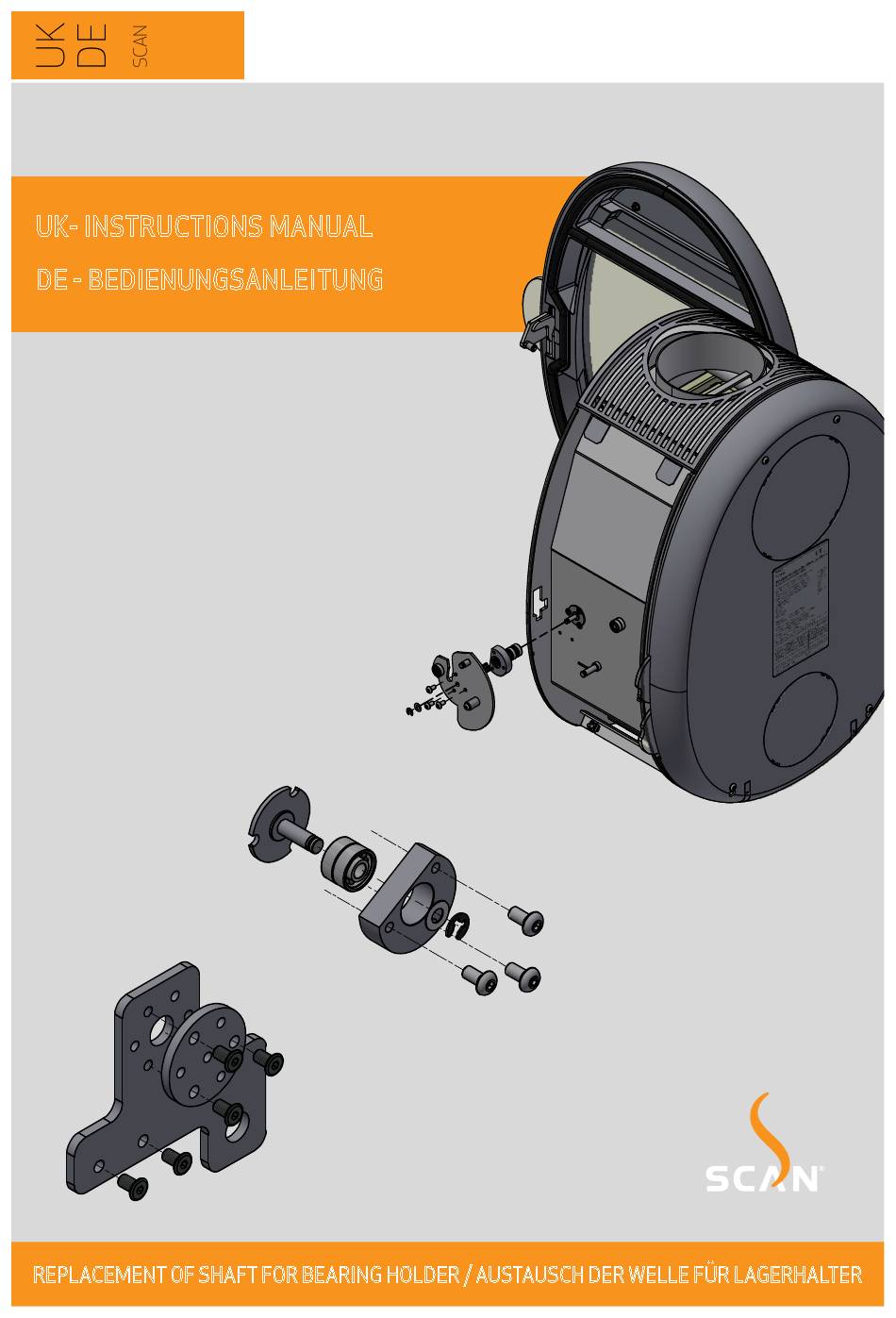

REPLACEMENT OF SHAFT FOR BEARING HOLDER / AUSTAUSCH DER WELLE FÜR LAGERHALTER

Advertisement

loading
Need help?

Need help?

Do you have a question about the 51063241 and is the answer not in the manual?

Questions and answers

Summary of Contents for SCAN 51063241

  • Page 1 UK- INSTRUCTIONS MANUAL DE - BEDIENUNGSANLEITUNG Shaft replacement kit 51063241 REPLACEMENT OF SHAFT FOR BEARING HOLDER / AUSTAUSCH DER WELLE FÜR LAGERHALTER...
  • Page 3 REPLACEMENT OF SHAFT FOR BEARING HOLDER / AUSTAUSCH WELLE FÜR LAGERHALTER UK · If the shaft is damaged, cut off the broken end UK · Place the tool template and install the two screws (Remember before to remove the combustion chamber lining) DE ·...
  • Page 4 REPLACEMENT OF SHAFT FOR BEARING HOLDER / AUSTAUSCH WELLE FÜR LAGERHALTER UK · Drill a hole in the shaft with a 10 mm drill bit UK · Drill 3 threaded holes (M5) DE · Bohren Sie ein Loch (10 mm) in die Welle DE ·...
  • Page 5 REPLACEMENT OF SHAFT FOR BEARING HOLDER / AUSTAUSCH WELLE FÜR LAGERHALTER UK · Install kit on existing plate and replace the bearings and the bearing holder DE · Bausatz auf der vorhandenen Platte montieren und die Lager und die Lagerhalterung ersetzen UK ·...
  • Page 6 REPLACEMENT OF SHAFT FOR BEARING HOLDER / AUSTAUSCH WELLE FÜR LAGERHALTER UK · Place the spring UK · Place the side plate DE · Feder montieren DE · Die Seitenplatte montieren...
